DOC-00322-ENA.doc Page 4 of 29 ! Wescor, Inc
Aerospray
"

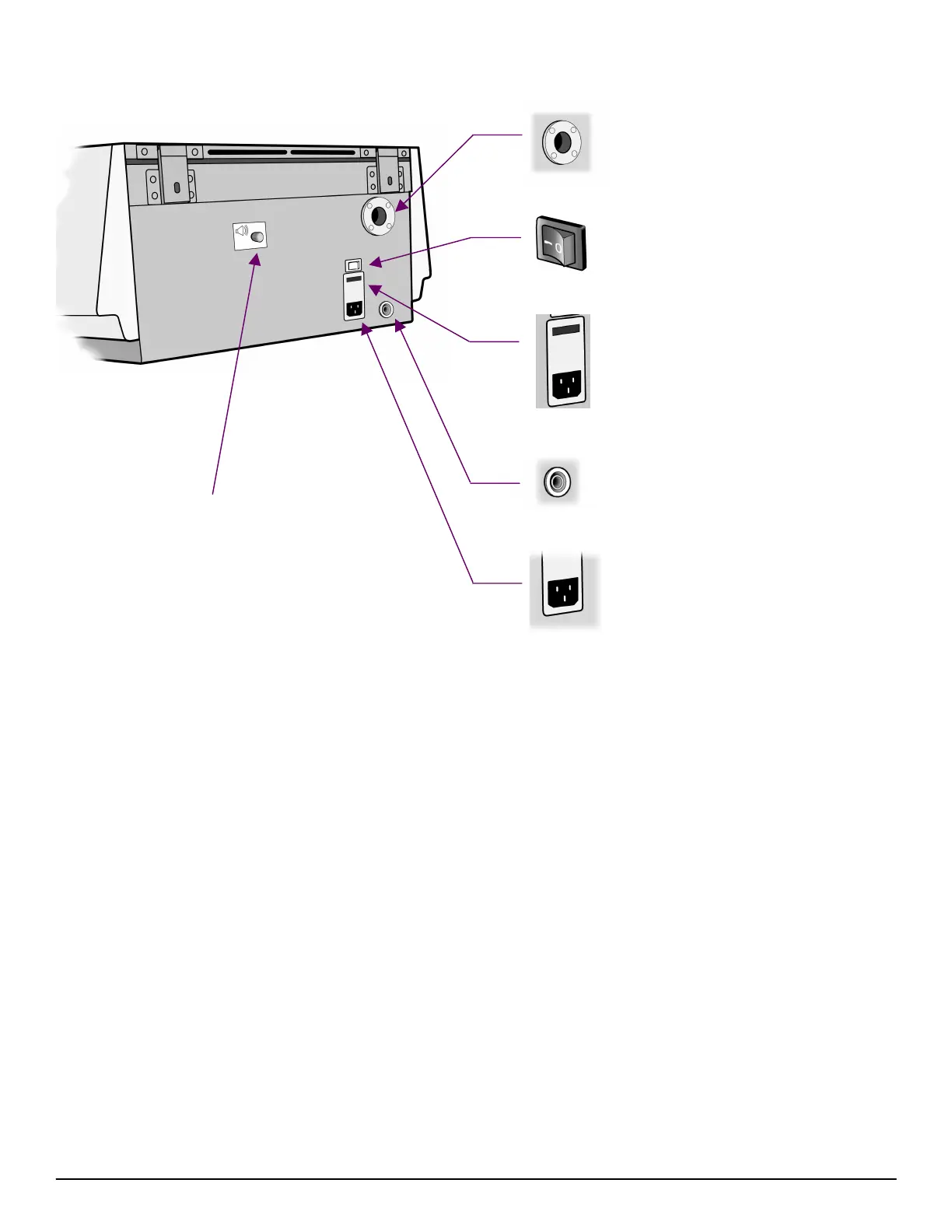

AFB Slide Stainer/Cytocentrifuge Rear Panel
Exhaust Vent
During operation, air is drawn through
openings at the rear of the instrument lid and
expelled through the exhaust vent.
Power Switch
The main power switch turns the stainer On
(I) and Off (O). When the instrument is
connected to the proper power source and
the power switch is on, the front panel power
indicator is lit.
Fuse Door
To get to the main fuses, turn the power off,
disconnect the power cord and use a small
screwdriver to open the fuse door. Follow
normal safety precautions.
Drain Port
Provides connection for 5/16 inch inside
diameter drain tube (AC-041). This port
must be connected to a drain or vented waste
container.
Power Entry Module
Provides connection for a standard IEC 320
type power cord (provided).
Volume Control
Adjusts the volume of the signal tone
sounded when a staining or
cytocentrifuge cycle is complete.
Turn clockwise to increase volume.
To Next Page
