ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
d
ispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
a
ffect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a
soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , two
adjustable spanners , and needlenose pliers .
To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
WARNING: Do not plug in the power
cord until the treadmill is completely assembled.
68
68
46
13
13
5
5
5
5
62
62
63
63
63
63
1

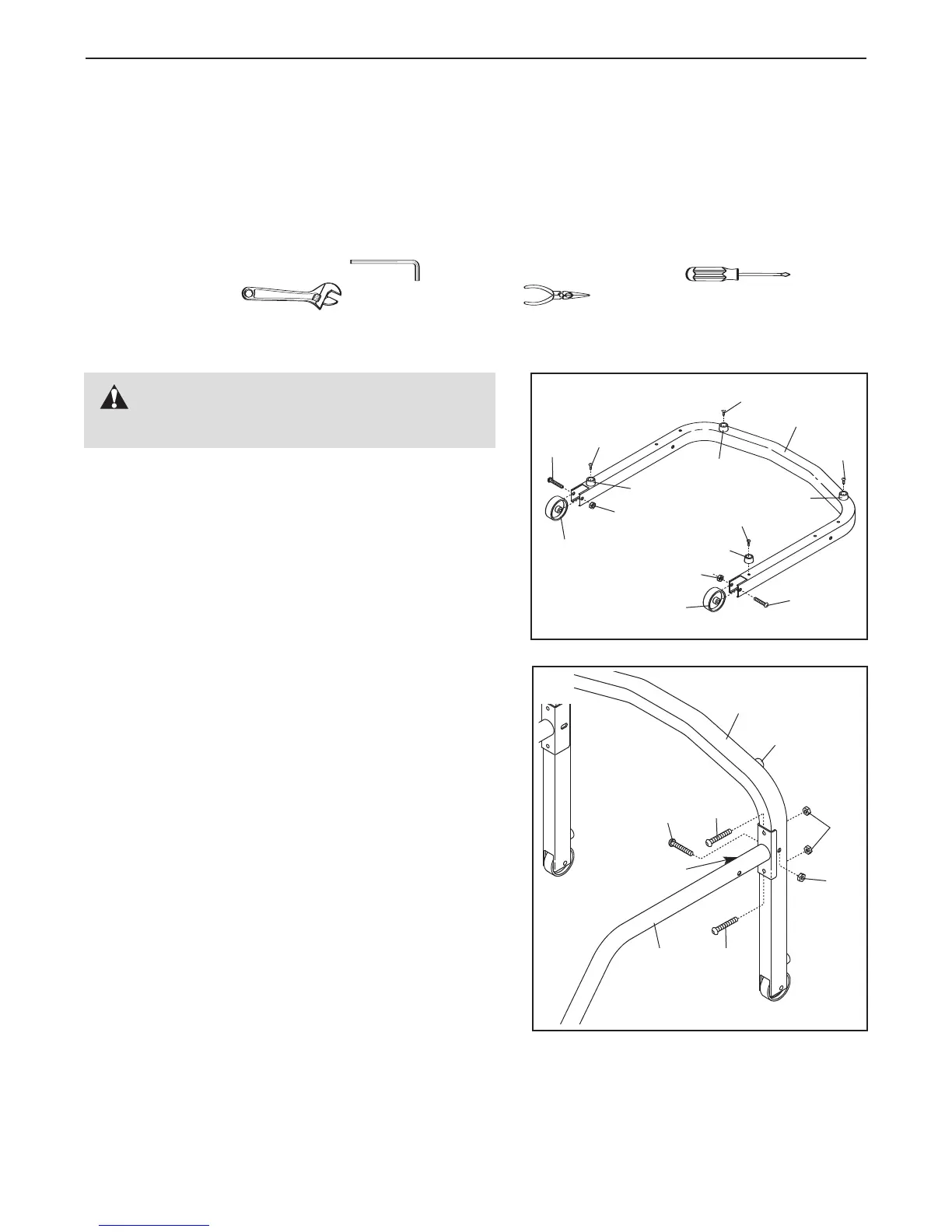

1. Orient the Base (46) so the holes for the four Base Pads
(63) are on top. Attach the four Base Pads to the Base
with the four 1” Tek Screws (5).
Attach the two Wheels (68) to the Base (46) with two 2”
Bolts (62) and two Wheel Nuts (13) as shown. Do not
overtighten the Bolts; the Wheels must be able to
turn freely.
2. Identify the Right Handrail (59), which has a large hole in
one side. Have a second person hold the Base (46) in a
vertical position, with the Base Pads (63) on the side
shown. Next, hold the Right Handrail against the Base so
the large hole is in the position shown. Attach the Right
Handrail with two 2 1/2” Bolts (65) and two 5/16” Nuts
(61), and a 2” Bolt (62) and a 3/8” Nut (56) as shown.
Do
not tighten the Bolts yet.
Attach the Left Handrail (not shown) to the Base (46) in
the same way.
61
46
63
65
62
59
56
Large Hole
65
2
