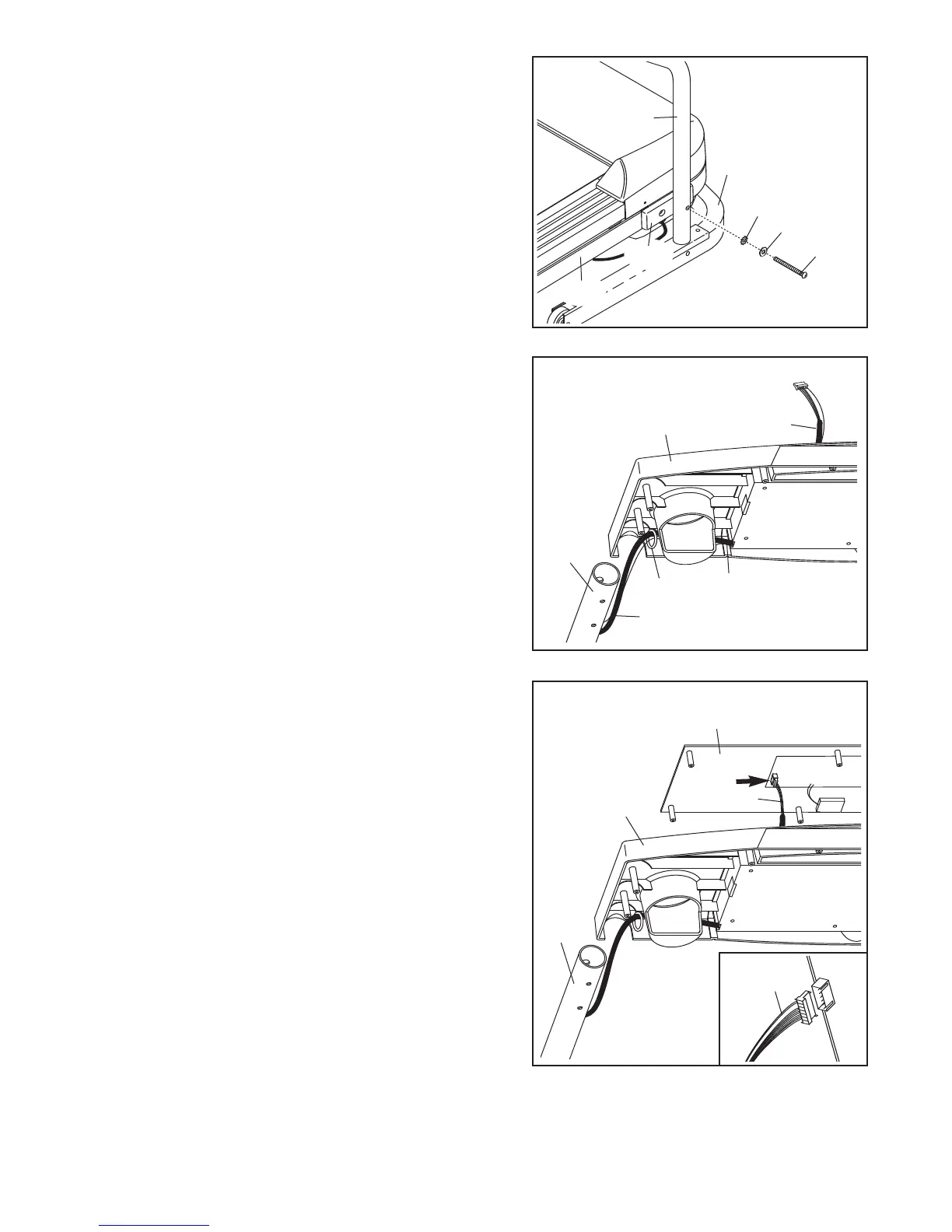

7. Hold the Console Base (52) near the Right Handrail (59)
and the Left Handrail (not shown). Insert the Wire
Harness (60) through the looped plastic tie and then
through the hole in the Console Base.
7
52
Tie
60
60
59
60
8. Hold the Console (55) near the Console Base (52).
Touch the Right Handrail (59) to discharge any static.
Connect the end of the Wire Harness (60) to the back of
the Console (55) in the location shown by the arrow.
The
connector should slide easily into the socket and
snap into place
(see drawing 8b). If the connector does
not slide easily and snap into place, turn the connector
and then insert it. IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
8
60
55
52
59
6
. With the help of a second person, lift and hold the
F
rame between the Handrails. Finger tighten a 4” Bolt
(70) with a 3/8” Washer (66) and a 3/8” Star Washer
(29) through the Right Handrail and the Frame Spacer
(27) into the Frame.
Do not tighten the Bolt yet.
Repeat this step on the left side of the treadmill.
60
8b
46
29
59
66
70
6
27
79
