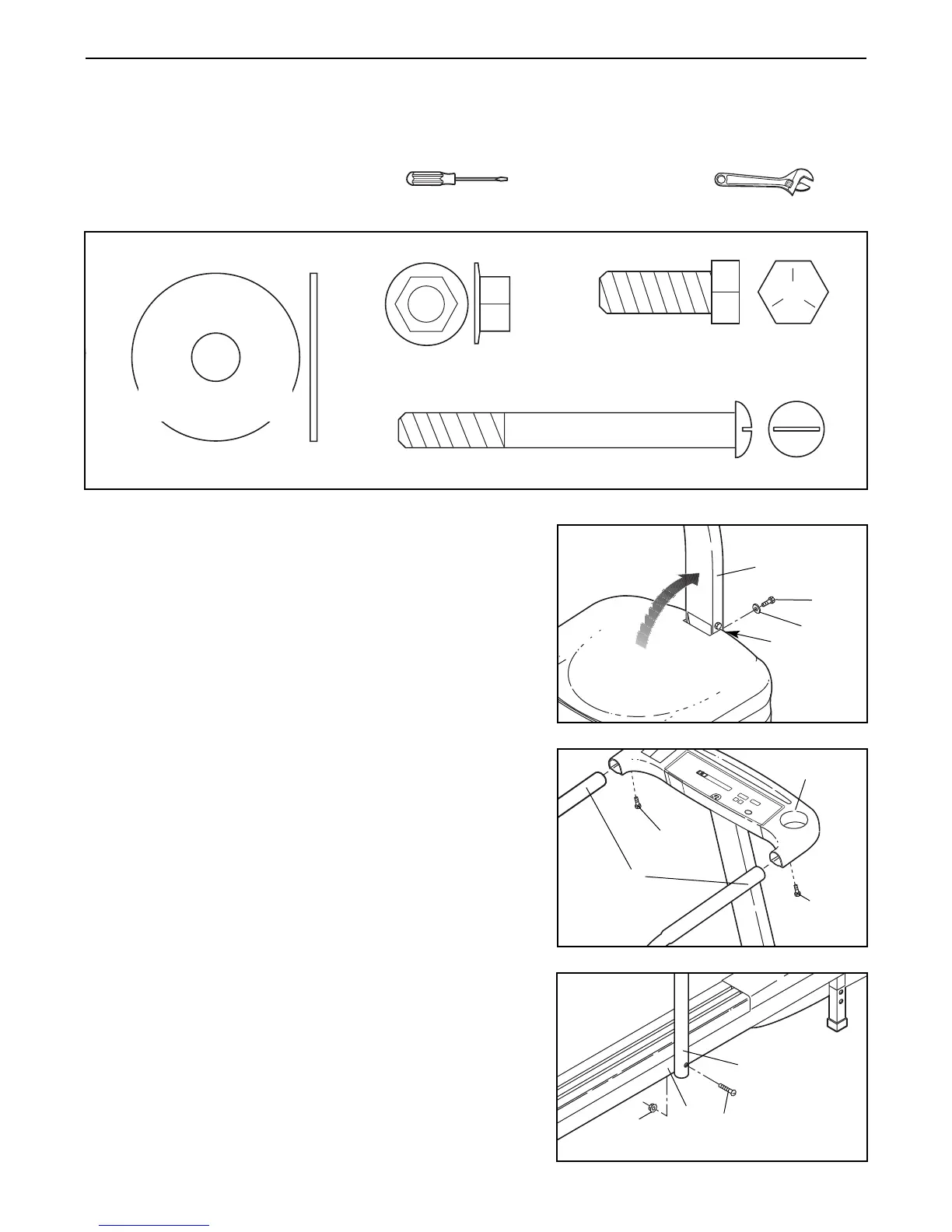

1. Raise the Upright (20) to the vertical position. Slide the
3/8” x 1 1/2” Washer (27) onto a 3/8” x 1” Bolt (7). Insert
the Bolt into the lower end of the Upright. Finger tighten
the Bolt into the Frame (46).
2. If there are plastic ties in the upper ends of the Handrails
(1), cut them off. Insert the upper end of one of the
Handrails into the Console Housing (4). (Note: The two
Handrails are identical. Due to the manufacturing
process, there is a dimple near the lower end of each
Handrail. It makes no difference which side the dimple is
on when the Handrails are assembled.) Finger tighten a
3/8” x 1” Bolt (7) into the plate under the Console Housing
(4) and into the Handrail.
Attach the other Handrail (1) in the same manner.
3. Insert a 5/16” x 3” Bolt (71) into the lower end of the right
Handrail (1) and the Frame (46). Reach under the Frame
and tighten a Flange Nut (54) onto the Bolt.
Attach the other Handrail (not shown) in the same man-
ner. Tighten all Bolts used in steps 1 through 3.
27
7
46
20
1
2
7
1
7
4
ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until
assembly is completed. Refer to the drawings below to identify the small parts used in assembly.
Assembly requires a standard screwdriver and an adjustable wrench (not
included).
3
71
46
54
1
