5

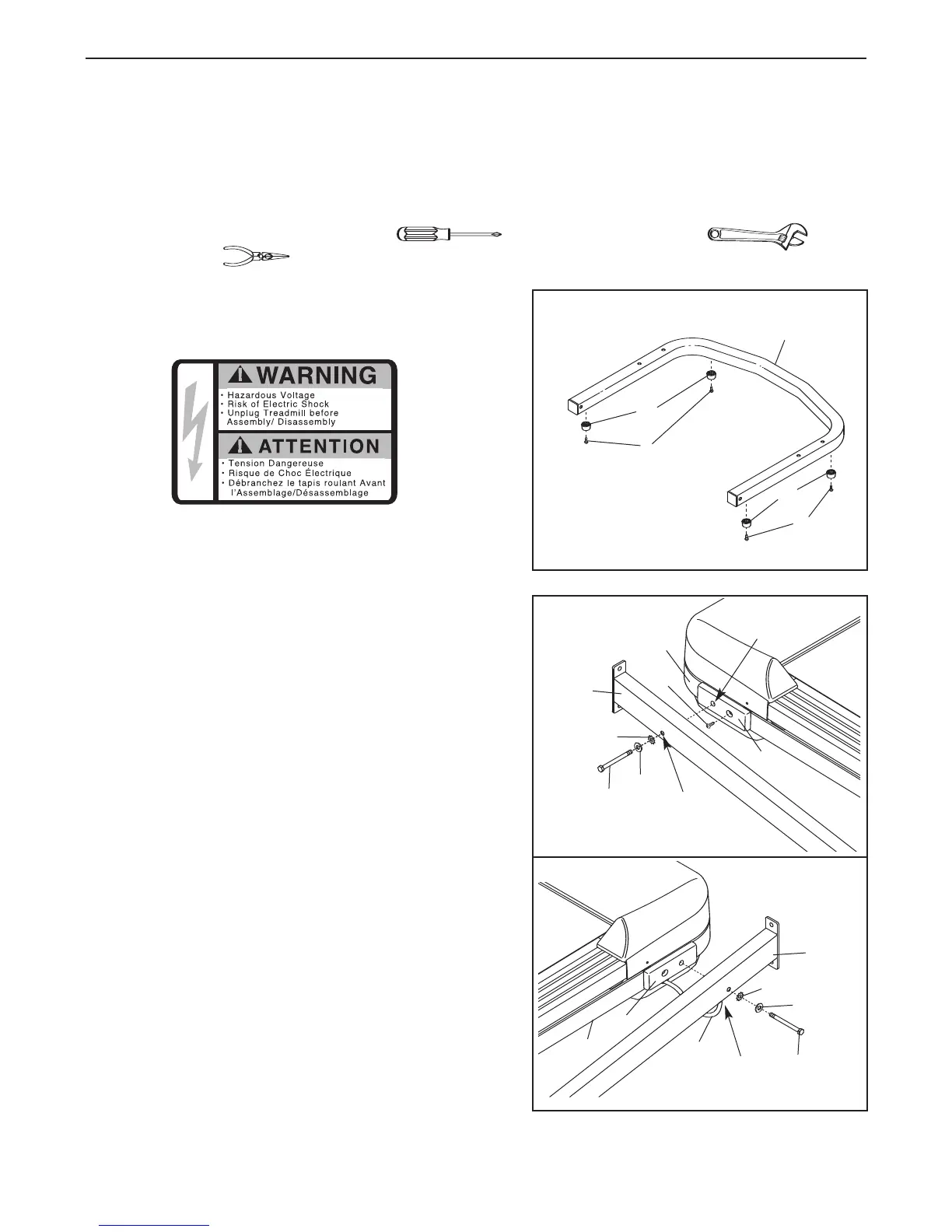

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
d
ispose of the packing materials until assembly is completed.
N
ote: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred
to the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires a phillips screwdriver , two adjustable wrenches , and
needlenose pliers .
Attach four Base Pads (63) to the bottom of the Base
(46) with four 3/4” Tek Screws (3).
63
46
1
3
3
63
2. Hold an Frame Spacer (27) against one side of the
Frame (79) as shown. Insert a Frame Bolt (70) into the
frame bolt hole in the Upright Spacer and the Frame.
Next, tighten a Spacer Screw (89) into the Upright
Spacer and the Frame. Remove the Frame Bolt. Repeat
on the other side of the Frame.
Identify the Left Upright (53), which does not have a large
round hole near the lower end. Hold the Left Upright so
the indicated small hole is in the position shown. Loosely
thread a Frame Bolt (70) with a Washer (66) and a Star
W
asher (29) through the Left Upright and the Frame
Spacer (27) into the Frame (79) as shown. Do not tight
-
en the bolts used in steps 2 through 5 until step 5 is
completed.
Hold the Right Upright (62) so the indicated large hole is
in the position shown. Insert the Wire Harness (60) into
the large hole and out of the top of the Right Upright.
Loosely thread a Frame Bolt (70) with a Washer (66) and
a Star Washer (2) through the Right Upright (62) and the
Frame Spacer
(27) into the Frame (79).
2a
2b
70
66
29
27
89
79
53
Large
Hole
Small
Hole
Frame Bolt
Hole
70
66
29
62
60
79
27
1. Note: To identify small parts used during assembly,
refer to the PART IDENTIFICATION CHART in the
center of this manual.
