ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a
soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
two adjustable wrenches , and needlenose pliers . To avoid damaging plastic
parts, do not use power tools for assembly.
To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
63
46
1
56
3
3
3
63
63
63
3

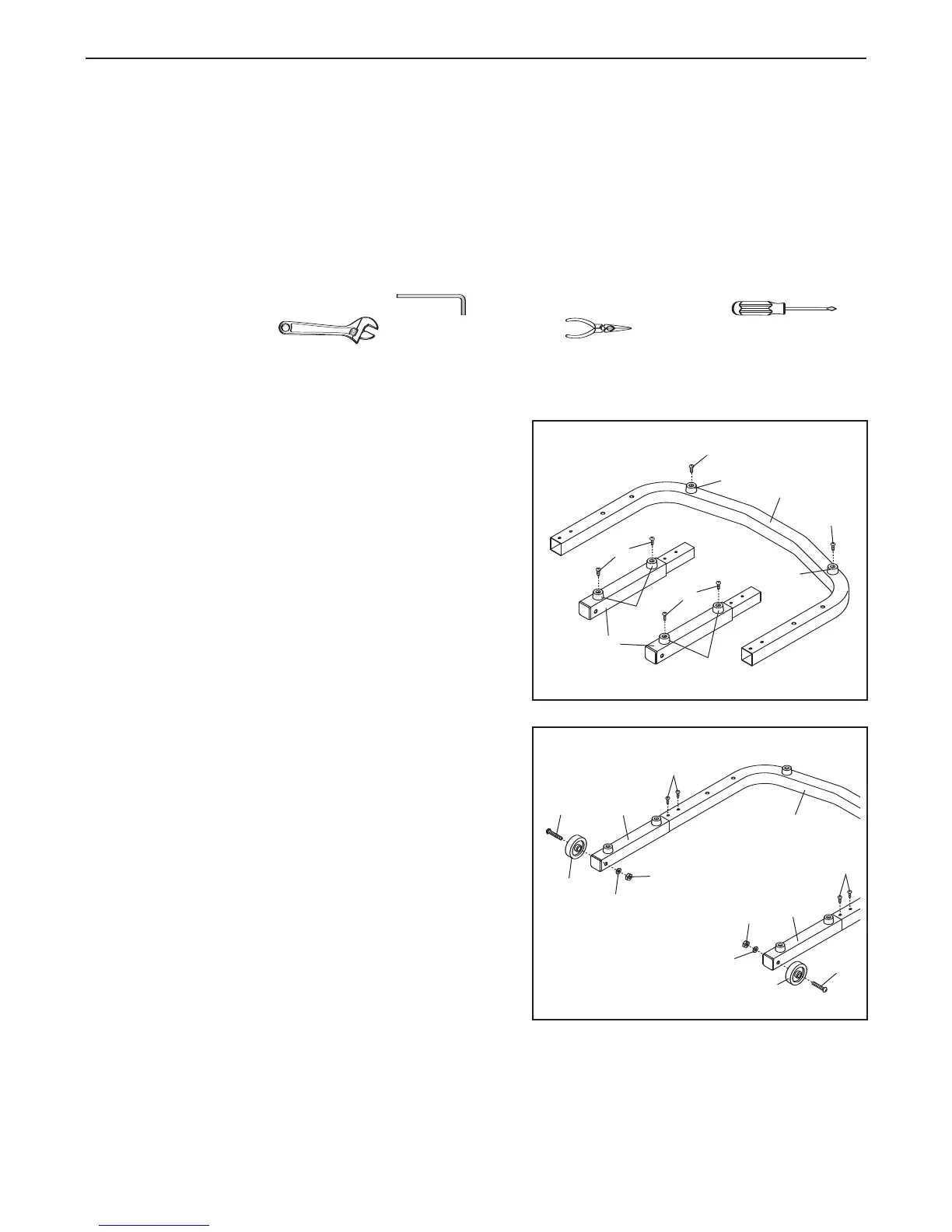

1. Attach six Base Pads (63) to the undersides of the Base
(46) and the Extension Legs (56) with six 3/4” Tek
Screws (3). Note: There are small holes for attaching the
Base Pads only in the undersides of the Base and the
Extension Legs.
89
46
61
61
56
2
67
67
68
68
66
66
89
56
2.
Insert an Extension Leg (56) into each end of the Base
(46). Attach each Extension Leg with two Extension Leg
Screws (89).
Attach a Wheel (68) to the outer side of each Extension
Leg (56) with a Wheel Bolt (67), a 3/8” W
asher (66), and
a 3/8” Nut (61) as shown. Note:
Do not overtighten the
Wheel Bolts; the Wheels should turn freely.
To Next Page
