13. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. The large hex key is used to adjust the walking belt (see page 20). To protect the floor or
carpet, place a mat under the treadmill.

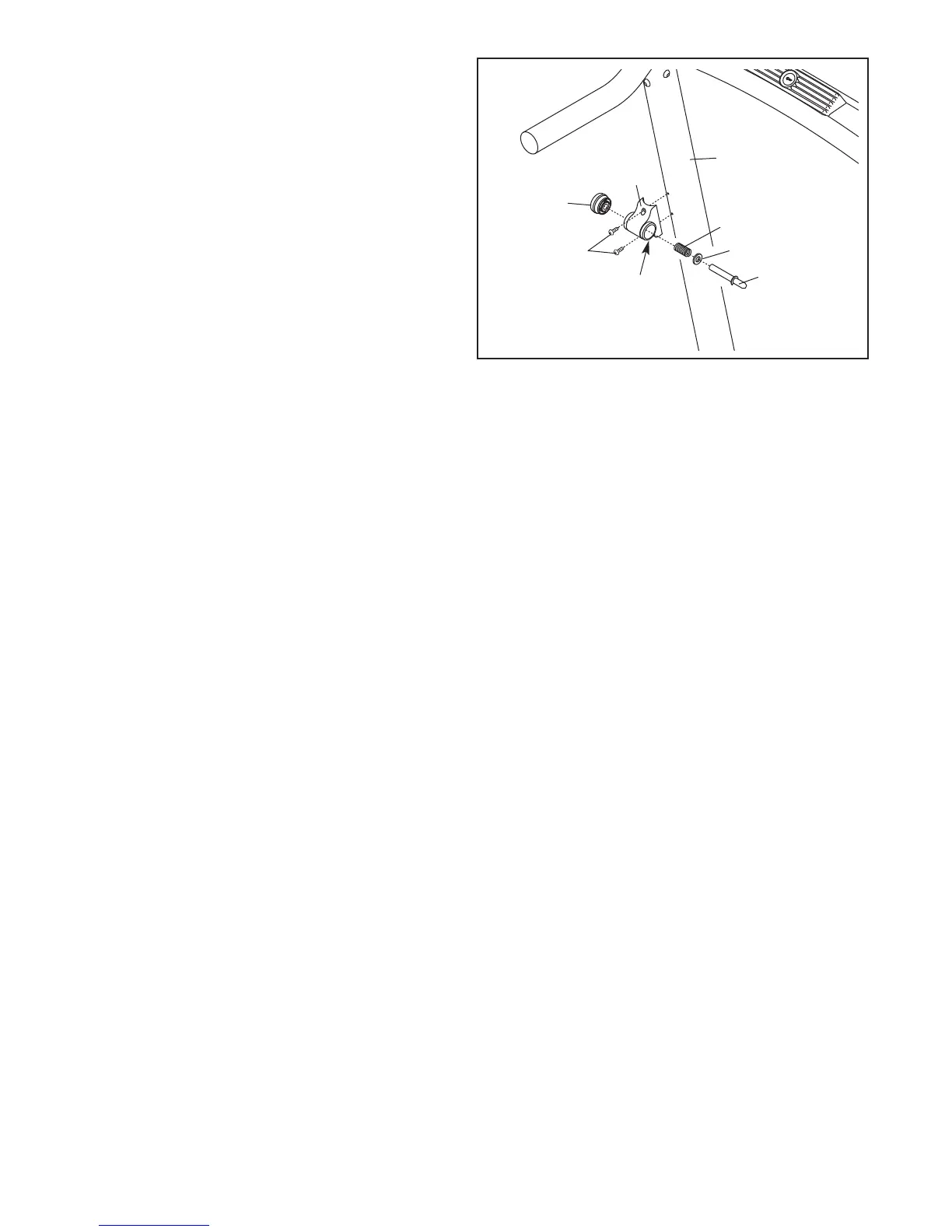

12. Attach the Latch Housing (48) to the Left
Upright (53) with two Latch Screws (10); start
both Latch Screws before tightening them.
Make sure that the large hole in the Latch
Housing is on the indicated side.
Remove the knob from the pin. Make sure that
t
he collar and the spring are on the pin. (Note: If
there are two collars, place one on each side of
the spring.) Insert the pin into the Latch Housing
(48). Then, tighten the knob onto the pin.
10
Pin
Spring
Collar
Knob
48
53
Large Hole
1
2
To Next Page
