ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
b
elt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
o
n top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , an
adjustable wrench , and needlenose pliers .

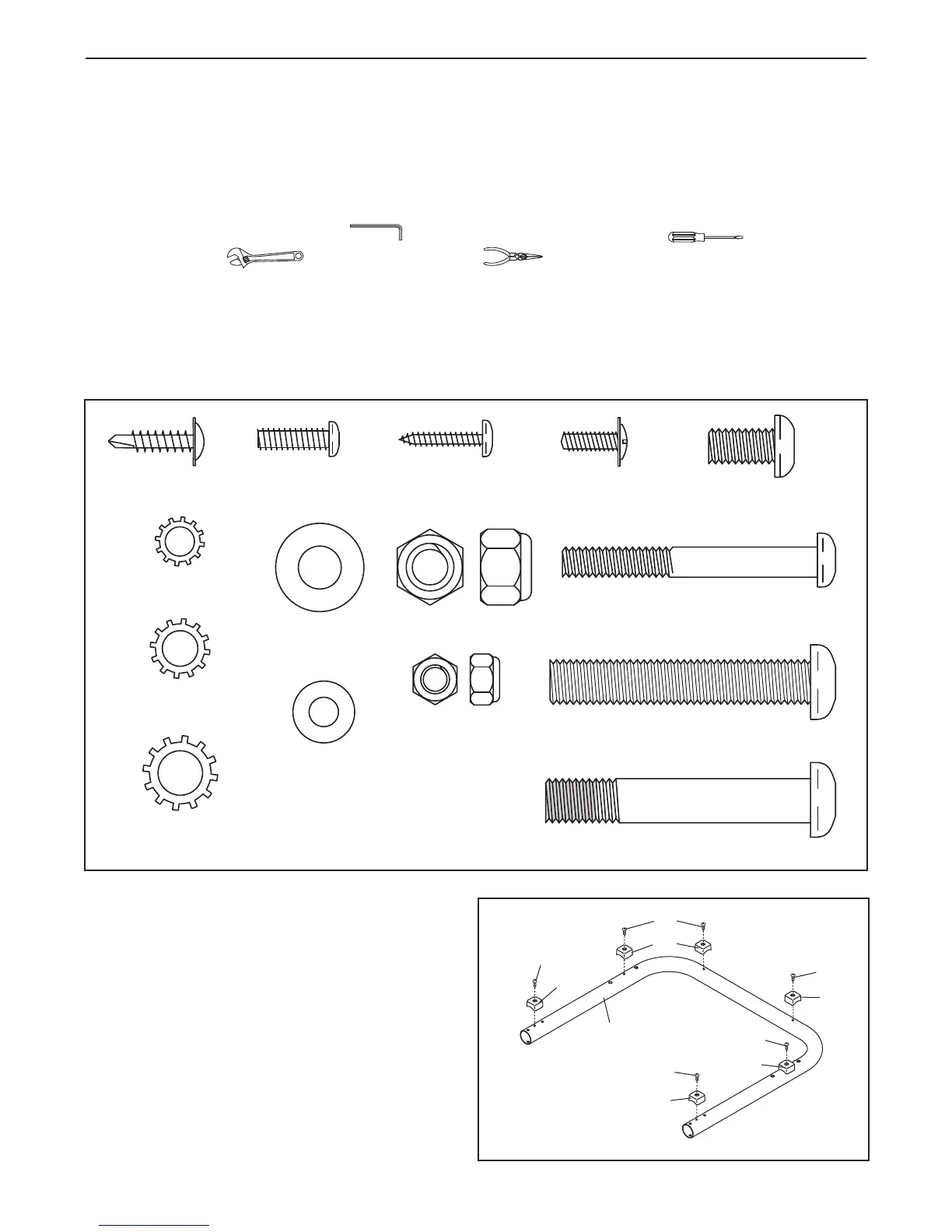

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
6
Crossbar Screw
(85)–2
Upright Washer
(14)–2
Ground Screw
(84)–1
Jam Nut (105)–4
Handrail Bolt (8)–6
Upright Star
Washer (9)–6
Handrail Star
Washer (5)–6
Console Screw/
Latch Screw (10)–6
Crossbar Star
Washer (7)–2
Upright Bolt (2)–4
Colored Patch Frame Bolt (1)–2
Base Pad
Screw (26)–6
Wheel Housing
Washer (32)–4
Wheel Housing
Nut (43)–4
Wheel Housing Bolt (13)–4
1. Make sure that the power cord is unplugged.
Have a second person hold the Base (52) in the
position shown.
Attach six Base Pads (63) to the Base (52) with
six Base Pad Screws (26).
1
52
26
26
63
63
63
26
63
26
63
26
