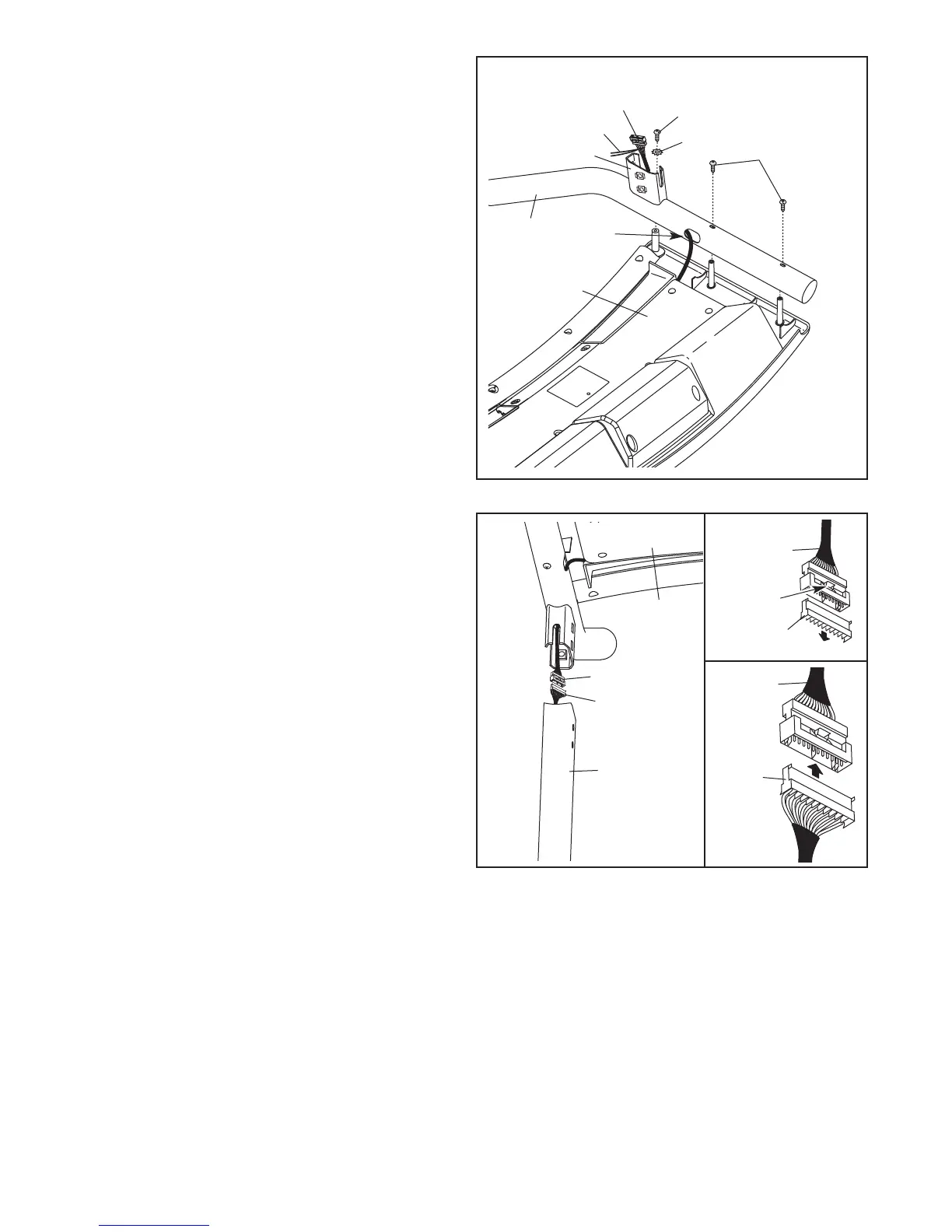

8. See the upper inset drawing. If there is a guard
on the end of the Console Wire, press the indi-
cated tab and remove the guard with needlenose
pliers. Discard the guard.
With the help of a second person, hold the Console
(91) near the Right Upright (54).
Connect the Wire Harness (39) to the console
wire. See the lower inset drawing. The con-
nectors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Insert the connectors and excess
wire into the Right Upright (54).
8
91
54
39
Console Wire
39
9
7. Set the Console (91) face-down on a soft sur-
f
ace to avoid scratching the Console. Hold the
Right Handrail (33), which has a large hole in
the location shown, near the Console.
N
ext, insert the console wire and tie into the hole
in the side of the Right Handrail (33). Using
needlenose pliers, pull the console wire out of
the hole near the bracket on the Right Handrail.
Then, set the Right Handrail (33) on the Console
(91). Make sure that no wires are pinched.
Start a Crossbar Screw (85) with a Crossbar
Star Washer (7) into the Right Handrail, and
then start two Console Screws (10) into the
Right Handrail. Tighten the Crossbar Screw
and then the two Console Screws; do not
overtighten the Screws.
Attach the Left Handrail (not shown) to the
Console (91) in the same way. Note: There are
no wires on the left side.
7
Console
Wire
Large
Hole
3
3
Bracket
T
ie
85
7
10
91
Guard
Tab
Console
Wire
Console
Wire
To Next Page
