9

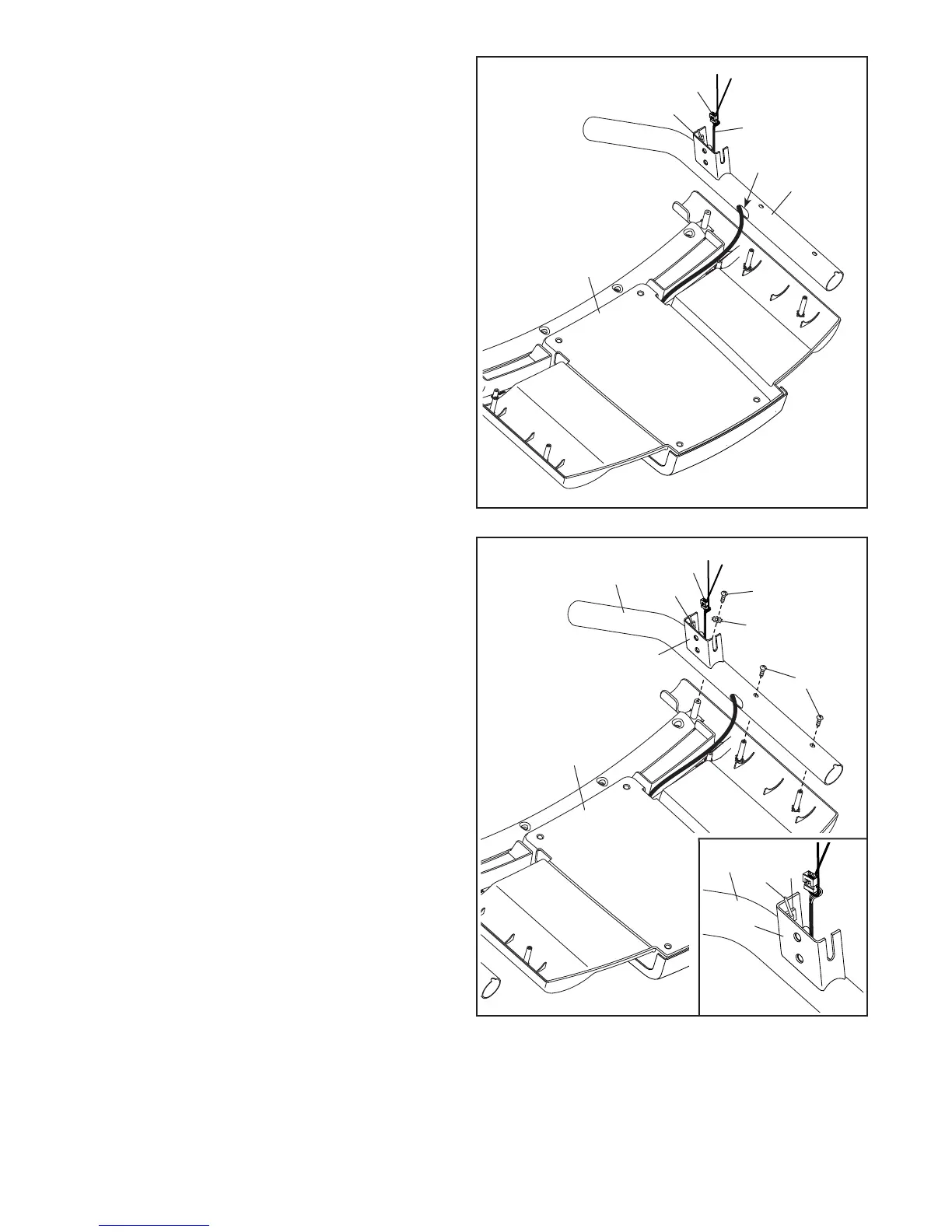

3. Set the console assembly (A) face down on
a soft surface to avoid scratching the console
assembly.
Identify the Right Handrail (69), which has a
large hole (B) in the location shown. Hold the
Right Handrail near the console assembly (A).
Next, insert the console wire (C) into the large
hole (B) in the side of the Right Handrail (69).
Using needlenose pliers, carefully grip the con-
nector (D) and pull the console wire out of the
hole near the bracket (E) on the Right Handrail.
3
C
E
A
D
69
B
4. Set the Right Handrail (69) on the console
assembly (A). Make sure that the console wire
(C) is not pinched.
See the inset drawing. Remove the tie (F) from
the bracket (E) on the Right Handrail (69). If
necessary, press the Cage Nuts (85) back into
place.
Next, start an M5 x 16mm Screw (6) with an M5
Star Washer (35) into the Right Handrail (69),
and then start two M4.2 x 19mm Screws (3)
into the Right Handrail. Tighten the M5 x 16mm
Screw and then tighten the two M4.2 x 19mm
Screws; do not overtighten the Screws.
Attach the Left Handrail (not shown) to the
console assembly (A) in the same way. Note:
There in not a wire on the left side.
4
C
6
35
E
F
A
69
3
F
85
E
69
To Next Page
