10

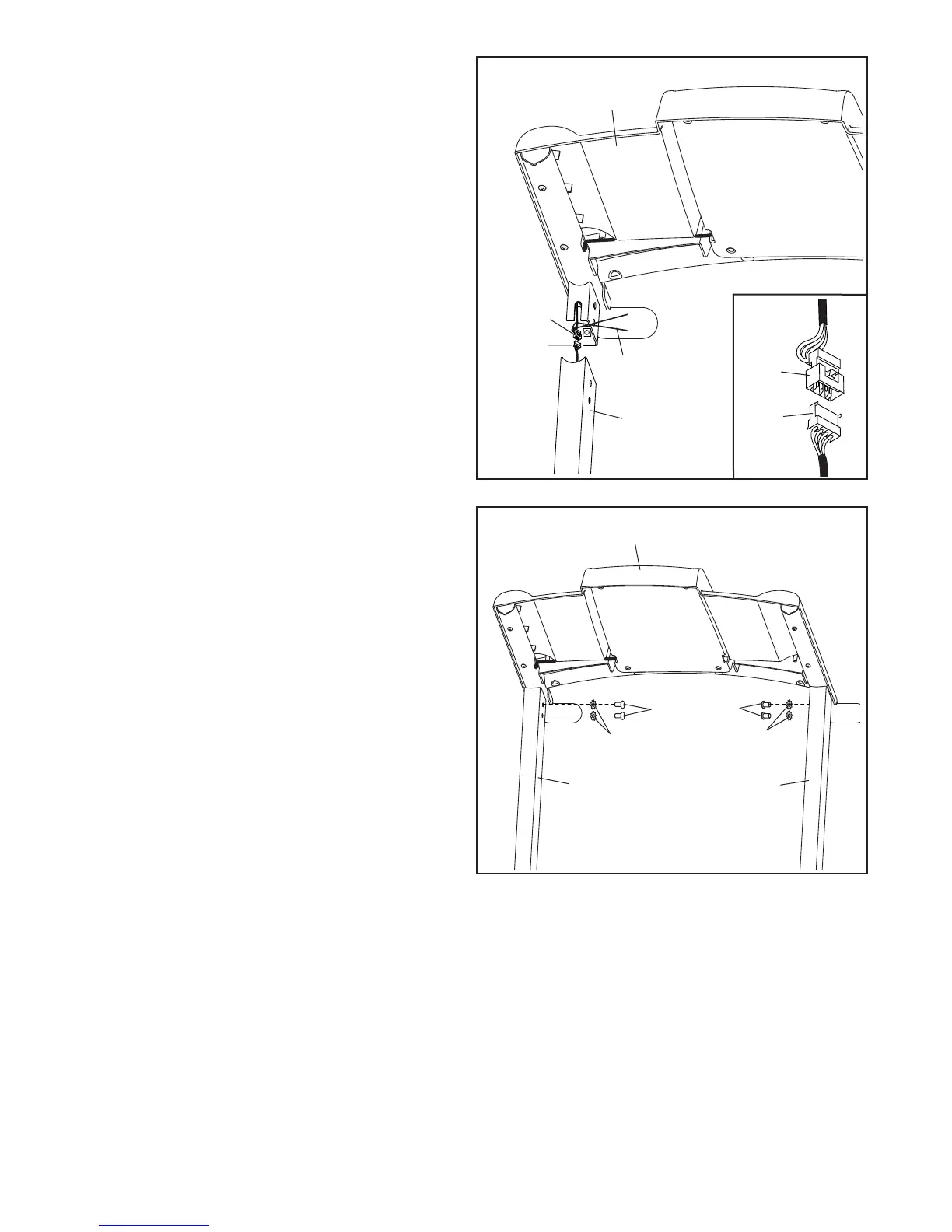

5. With the help of a second person, hold the con-
sole assembly (A) near the Right Upright (74).
Remove the tie (F) from the Upright Wire (71).
See the inset drawing. Connect the Upright
Wire (71) to the console wire (H). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, insert the connectors
and the excess wire into the Right Upright (74).
5
74
A
F
71
71
H
H
6. Set the console assembly (A) on the Left and
Right Uprights (73, 74). Make sure that no
wires are pinched. Start four M8 x 15mm
Screws (2) with four M8 Star Washers (36) into
the Uprights as shown; do not tighten the
Screws yet.
6
36
36
2
2
A
74
73
