7

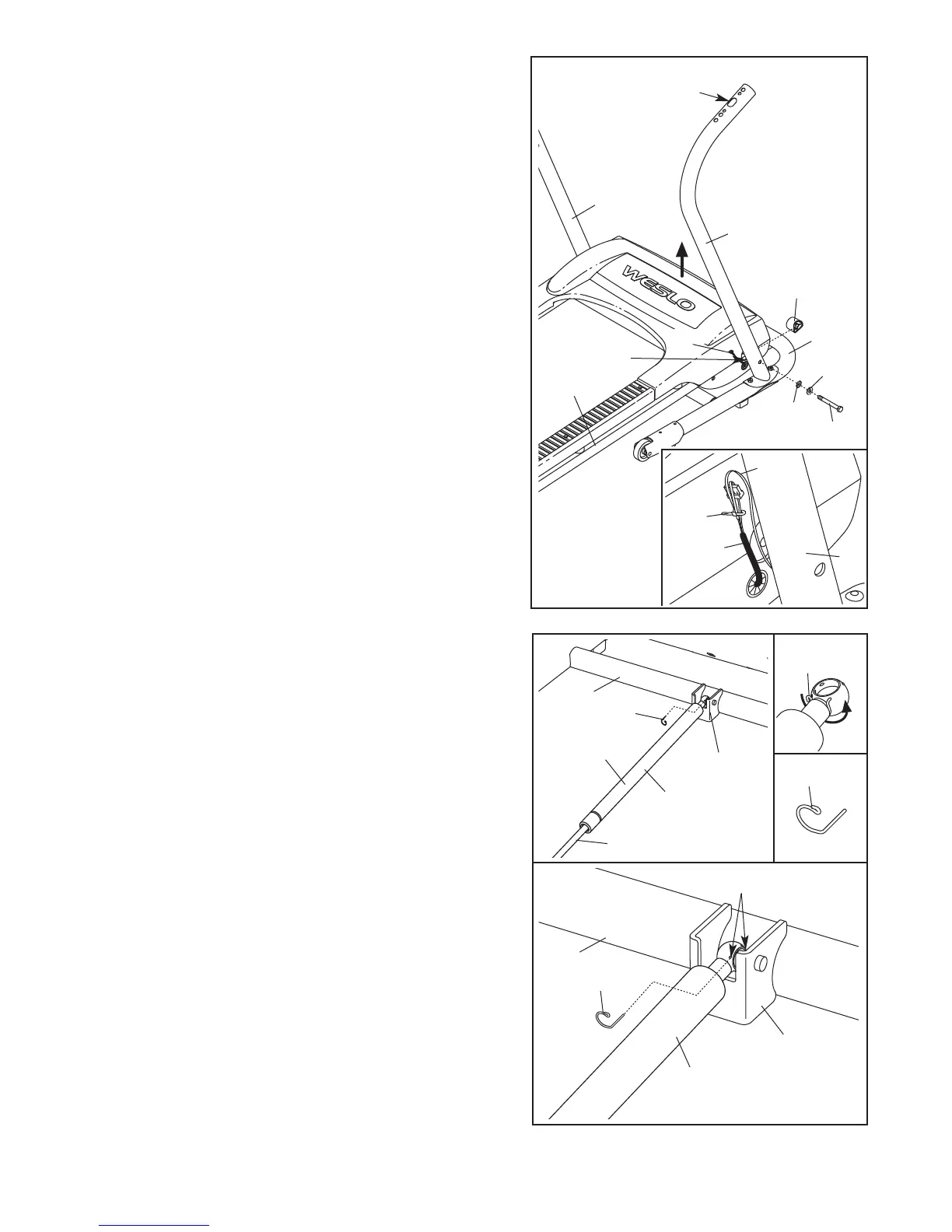

3. With the help of a second person, raise the Uprights
(55, 56) so the Base (54) is flat on the floor as shown.
Position the front of the treadmill Frame (53) between the
U
prights (55, 56) as shown. Next, locate the long wire in-
side of the lower end of the Right Upright (see the inset
drawing). Secure the end of the wire to the end of the
Wire Harness (97) using the included plastic tie. Then,
pull the other end of the wire until the end of the Wire
Harness is extending from the indicated hole in the upper
end of the Right Upright.
Have a second person lift and hold the front end of the
Frame (53). Hold a Frame Spacer (111) between the Right
Upright (56) and the Frame. Attach the Right Upright and
the Frame Spacer to the Frame with a Frame Bolt (1), a
Frame Washer (14), and a Frame Star Washer (9).
Repeat this step on the left side of the treadmill.
9
111
54
14
1
56
53
Large
Hole
Hole
3
55
4. Have a second person raise and hold the treadmill
Frame (not shown).
Identify the Gas Spring (101). Note that the Gas Spring
has a cylinder end and a piston end. See the two small
inset drawings. Locate the Spring Clip (52) in the cylinder
end of the Gas Spring. Using your fingernail or the end of
a screwdriver, press on the end of the Spring Clip to
loosen it, rotate the Spring Clip, and then pull the Spring
Clip out of the Gas Spring. Be careful to avoid losing
the Spring Clip. Note: Extra Spring Clips are included.
Next, hold the cylinder end of the Gas Spring (101) near
the bracket in the center of the Base (54). Press the end
of the Gas Spring as far as possible onto the ball on the
bracket.
See drawing 4a. Insert the Spring Clip (52) into the two
indicated small holes in the end of the Gas Spring (101).
Then, rotate the Spring Clip until it clips onto the Gas
Spring.
52
101
101
54
54
Holes
52
4a
Bracket
Cylinder
Piston
Bracket
52
52
4
97
56
Tie
Wire
97
To Next Page
