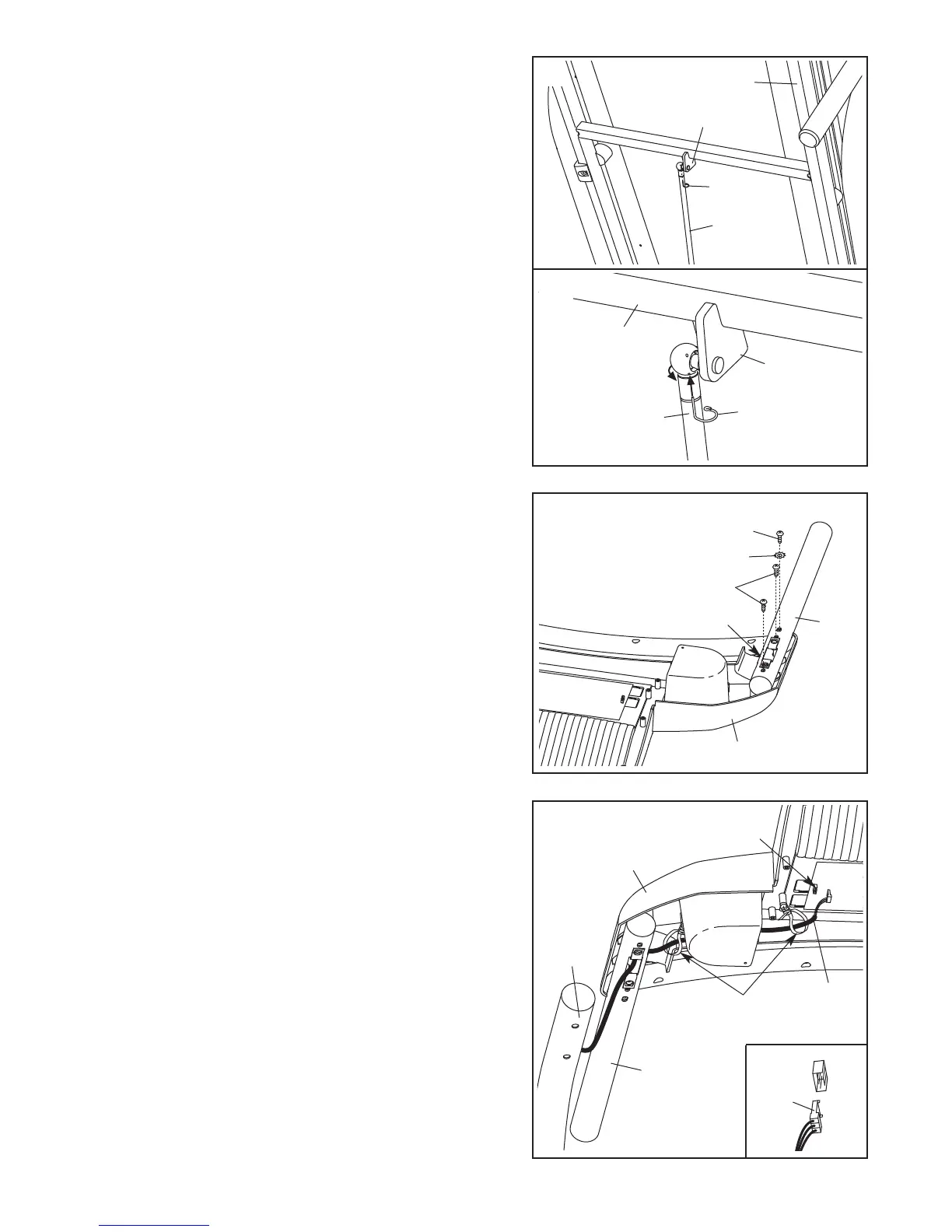

7. Hold the Console Assembly (90) near the Right Upright
(56). Touch the Right Handrail to discharge any static.
Insert the end of the Wire Harness (97) into the hole in
the bottom of the Right Handrail (57) and out of the large
hole in the side. Next, Insert the end of the Wire Harness
through the two looped plastic ties.
Press the end of the Wire Harness (97) into the indicated
connector on the back of the Console Assembly (90).
The end of the Wire Harness should slide easily into
the connector and snap into place.
If it does not, turn
the end of the Wire Harness and try again.
IF THE CON-
NECTOR IS NOT INSERTED PROPERLY, THE CON
-
SOLE MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
Plastic
Ties
Connector
90
57
97
56
6. Turn the Console Assembly (90) face-down. Be careful
not to scratch the face of the Console Assembly.
Identify the Right Handrail (57), which has a large hole in
one side.
Attach the Right Handrail (57) to the Console Assembly
(90) with two Console Screws (4), a Crossbar Screw (5),
and a Crossbar Star Washer (12).
Attach the Left Handrail (not shown) in the same way.
12
90
4
Large Hole
5
57
7
6
97
5. Pivot the piston end of the Gas Spring (101) up to the
position shown. Remove the Spring Clip (52) from the
p
iston end of the Gas Spring.
N
ext, align with piston end of the Gas Spring (101) with
the bracket in the center of the Frame (53). Press the
end of the Gas Spring onto the ball on the bracket. Note:
It may be necessary to pivot the Frame forward or back-
ward slightly to align the end of the Gas Spring with the
ball.
See drawing 5a. Insert the Spring Clip (52) into the two
indicated small holes in the Gas Spring (101). Then, ro-
tate the Spring Clip until it clips onto the Gas Spring.
With the help of a second person, lower the Frame (53) to
the floor.
101
52
101
52
53
53
B
racket
Bracket
5a
5
