10. Carefully lower the Handrails (57, 58) to the floor. Center
the Frame (53) between the Handrails, and tighten the
four Upright Bolts (2). Then, raise the Handrails back to
the vertical position.
See drawing 10a. Attach the Latch Assembly (108) to the
Left Upright (55) with two Latch Screws (7). Make sure
that the Latch Assembly is oriented as shown.
See HOW TO CHANGE THE INCLINE OF THE TREAD-
MILL on page 14
. Adjust the incline of the treadmill as
desired.
11.
Make sure that all parts are properly tightened be-
fore you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure
place; the large hex key is used to adjust the walking
belt (see page 18). To protect the floor or carpet, place
a mat under the treadmill.
108
55
7
9. Set the Console Assembly (90) on the Right Upright (56)
and the Left Upright (not shown). Next, start four
Handrail Bolts (3) with four Handrail Washers (13) and
four Handrail Star Washers (10) (only two of each are
shown) into the Right Upright and the Left Upright.
Then, tighten all four Handrail Bolts.
Insert the slack in the Wire Harness (97) down into the
Right Upright (56).
Attach the Console Back (92) to the Console Assembly
(90) with four Console Back Screws (7). Make sure that
the Wire Harness (97) is in the indicated slot in the
Console Back and that no wires are pinched.
90
56
7
7
10
97
Slot
13
3
92
9
10
10a
57, 58
53
2

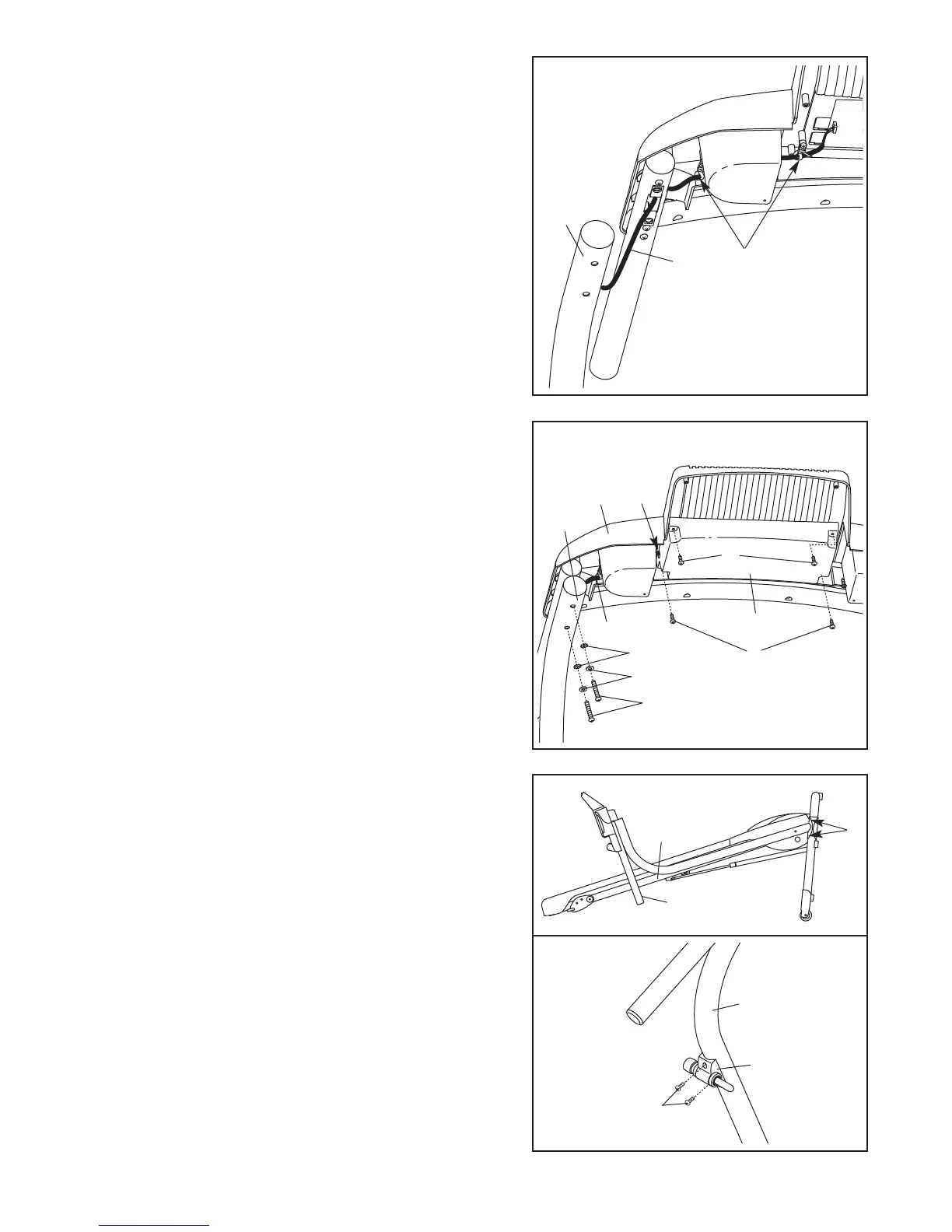

8. Insert the slack in the Wire Harness (97) down into the
Right Upright (56). Then, tighten the two plastic ties
a
round the Wire Harness, and cut off the ends of the plas-
tic ties.
97
Plastic
Ties
56
8
