GOVERNOR
Check springs ~GJ
for fatigue. ~~\d)./
7
~\,i)
Check springs
for fatigue.
~~
Check shaft
for
flaws.
Check sliding sleeve
joint for wear and damage.

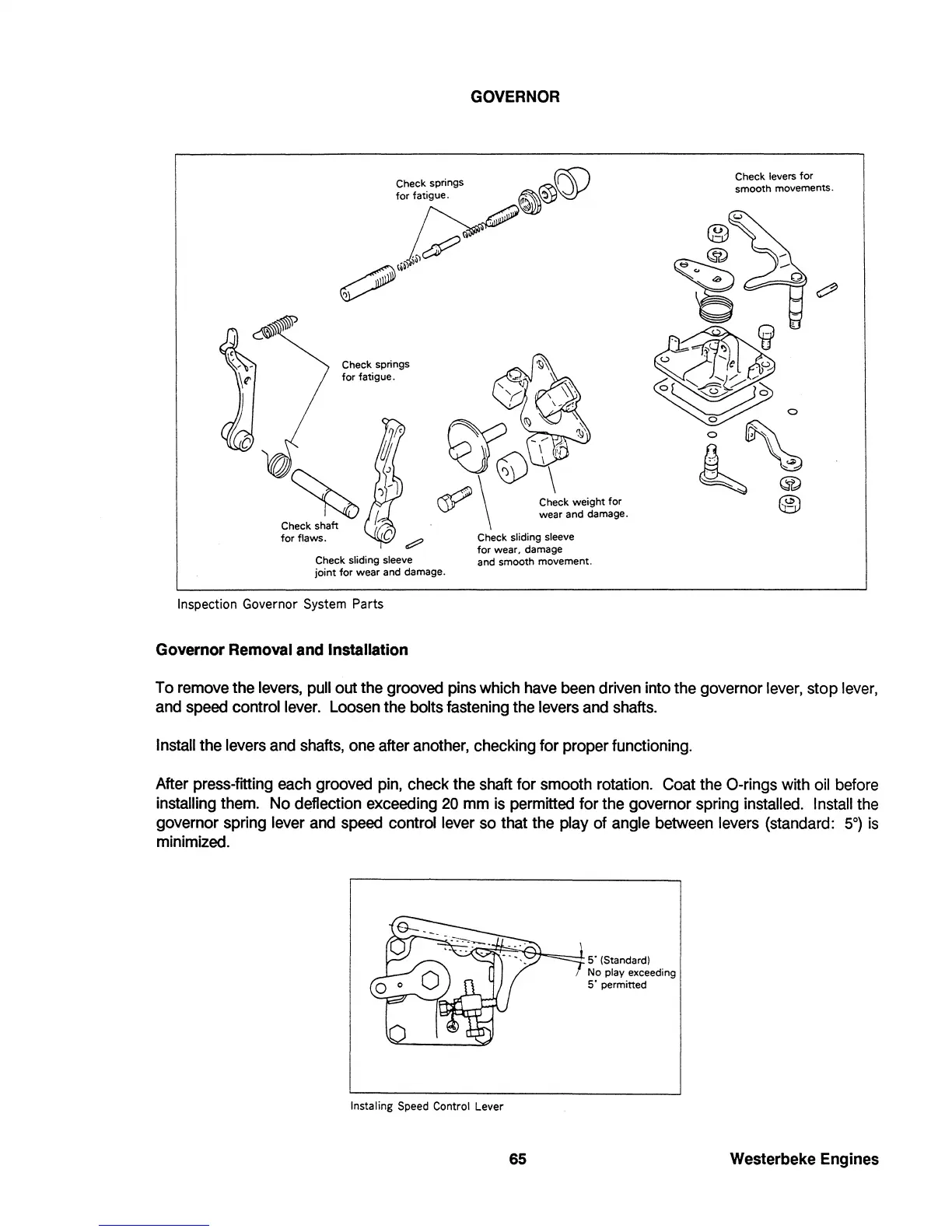

Inspection Governor System Parts
Governor Removal and Installation
Check weight for
wear and damage.
Check sliding sleeve
for wear, damage
and smooth movement.
Check levers for
smooth movements.
To remove the levers, pull out the grooved pins which have been driven into the governor lever, stop lever,
and speed control lever. Loosen the bolts fastening the levers and shafts.
Install the levers and shafts, one after another, checking for proper functioning.
After press-fitting each grooved pin, check the shaft for smooth rotation. Coat the O-rings with oil before
installing them. No deflection exceeding 20 mm is permitted for the governor spring installed. Install the
governor spring lever and speed control lever so that the play of angle between levers (standard: 5°) is
minimized.
Instaling Speed Control Lever
65
5' (Standard)
No
play exceeding
5' permitted
