Western HTS - Harness Diagram - 3-Port, 2-Plug System

Lit. No. 49513, Rev. 00 103 August 15, 2011

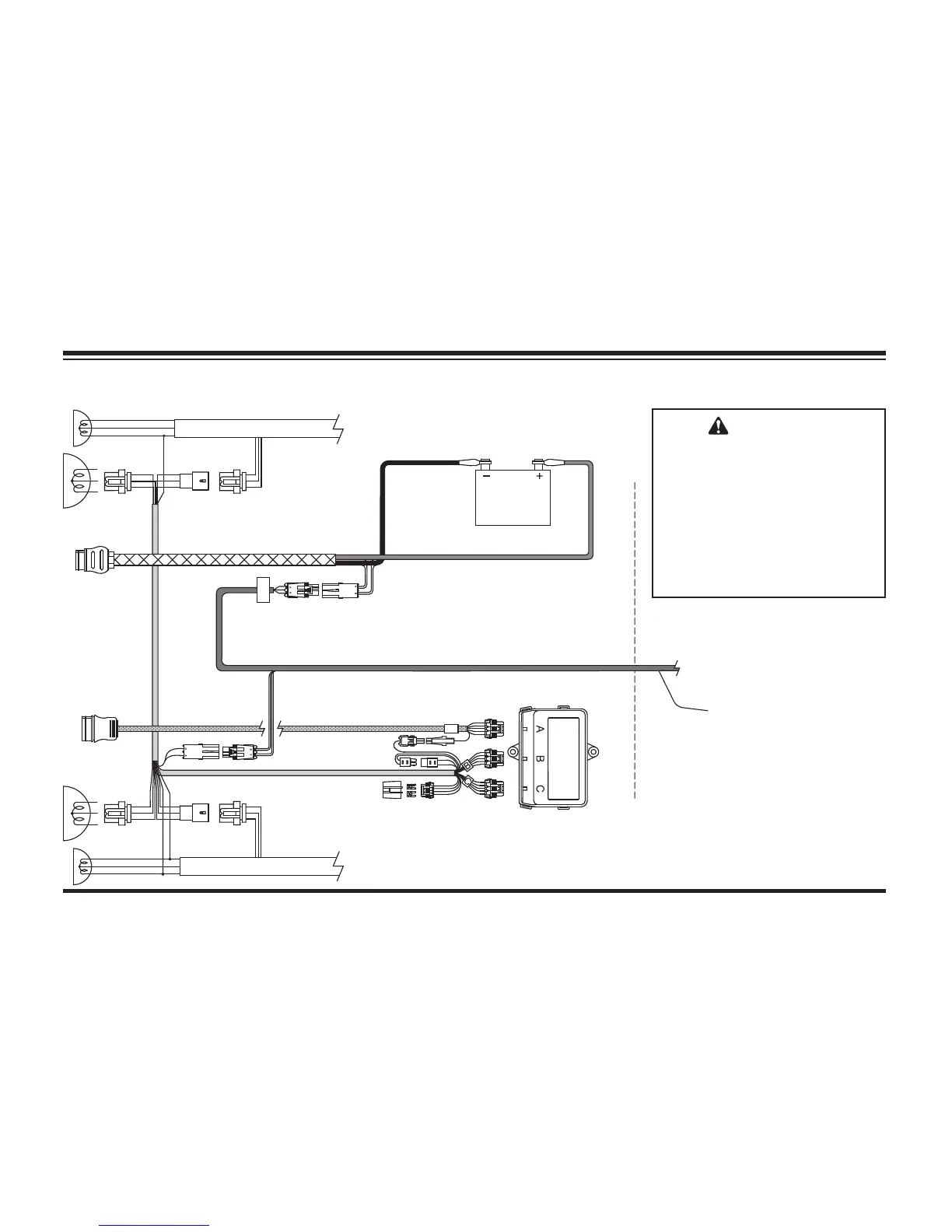

HARNESS DIAGRAMS
3-PORT, 2-PLUG SYSTEM – ALL BLADES
Battery
10.0-Amp Fuses
(Snowplow Park/Turn &
Snowplow Control)
Turn Signal
Configuration Plug
Typical Plug-In Harness
Vehicle Lighting
Harness
(11-Pin)
Vehicle Control Harness
Vehicle
Headlamps
Park/Turn
Lamps
Vehicle
Headlamps
Park/Turn
Lamps
Factory Vehicle Harness
Factory Vehicle Harness
Vehicle Battery Cable
To Snowplow Control
To Switched
Accessory
Fire Wall
3-Port Module
(Non-DRL or DRL)
BAT
RED
BLK
RED
CAUTION
On 2-plug electrical
systems, plug
covers shall be used
whenever snowplow is
disconnected. Vehicle
Battery Cable is 12-volt
unfused source.
