GETTING TO KNOW YOUR SNOWPLOW
The WIDE-OUT™ blade is both raised and
angled side to side in approximately 2 seconds.
Each wing individually extends and retracts in
approximately 2 seconds. Both wings together
extend in approximately 4 seconds and retract in
approximately 3 seconds.
For hydraulic fl uid type and fi lling instructions, see
"Annual Fluid Change" under "Hydraulic System"
in the Maintenance section of this manual.

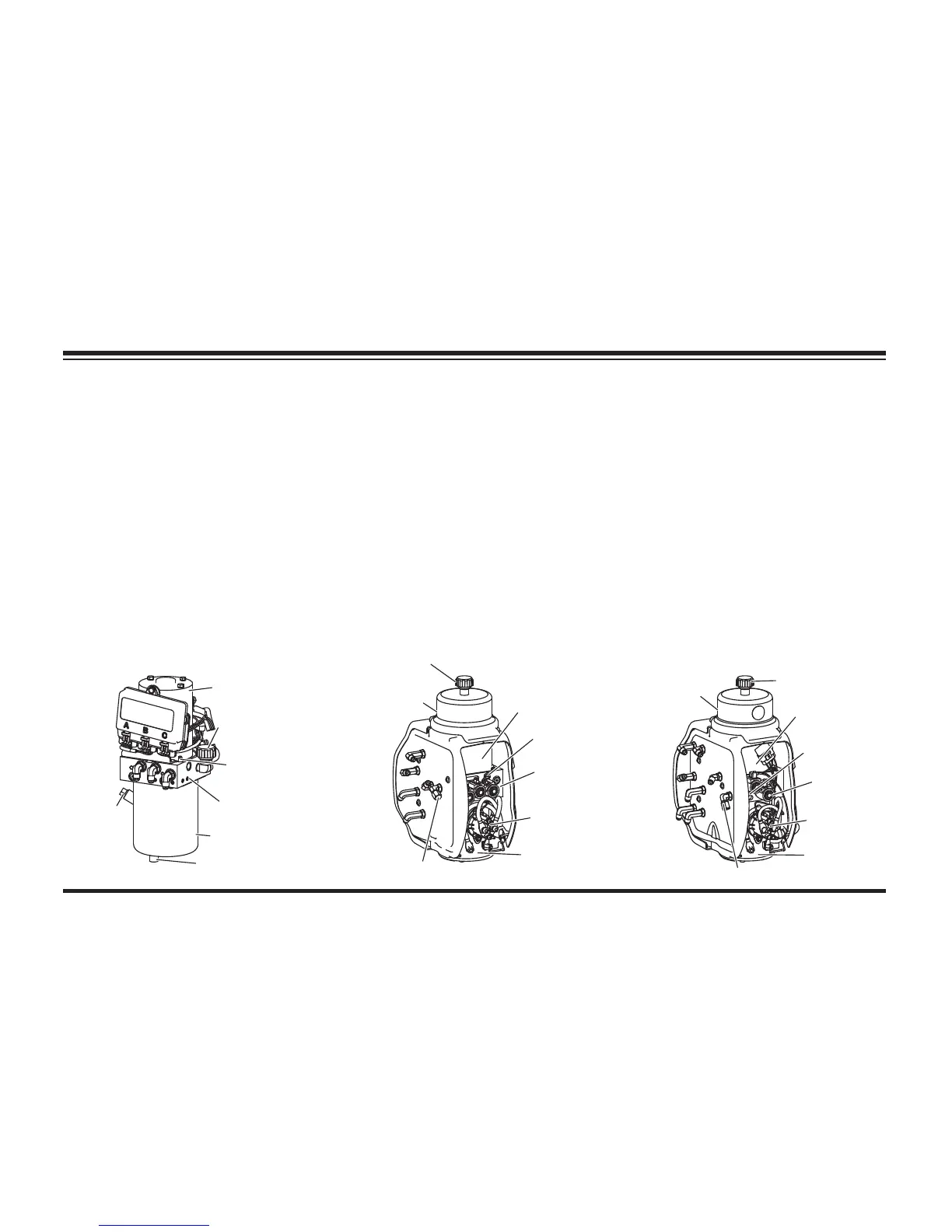

MVP PLUS™ Blades
Breather
Quill
Reservoir
Valve
Manifold
Motor
Drain Cap
Fill
Plug
Motor
Relay
Breather
Fill
Plug
Quill
Valve
Manifold
Motor
Relay
Reservoir
Motor
WIDE-OUT™ Blades
Drain Cap
is in FLOAT, and is factory set. See your sales
outlet for adjustment. The HTS blade is raised in
approximately 4 seconds and angled side to side
in approximately 3 seconds.
Straight blades are raised in approximately
2 seconds and angled side to side in
approximately 4 seconds.
The MVP PLUS™ blade is both raised and angled
side to side in approximately 2 seconds.
