whl-035 Rev. 002 Rel. 002 Date 11.1.17
6

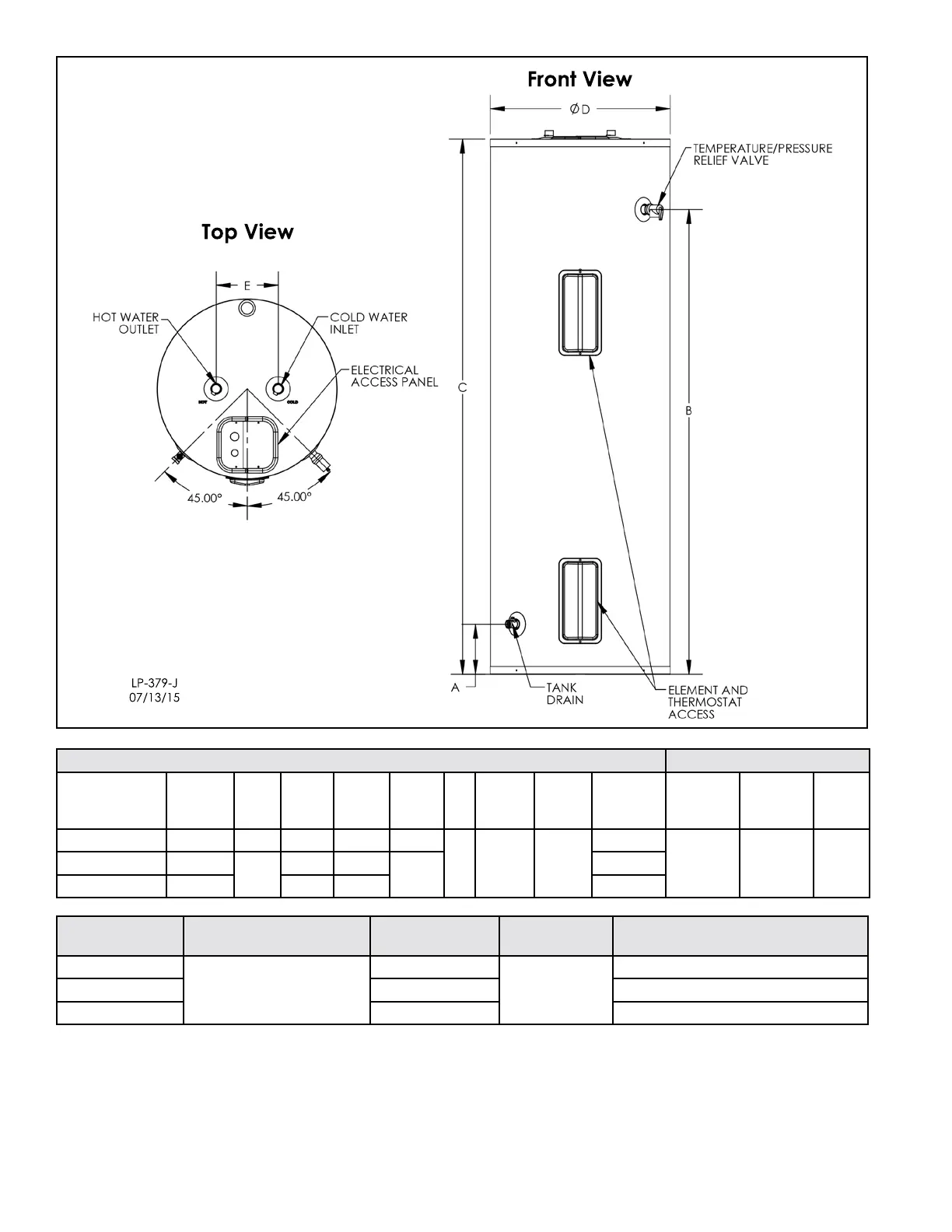

Figure 2 - Dimensional Drawing - Non-Simultaneous Operation
Top View
Front View
LP-379-J
07/13/15
Specications and Dimensions Water Temperature Ratings
Light
Commercial
Models
Storage
Capacity
A B C D E
Safety
Listing
Hot /
Cold
Inlets
Shipping
Weight
(Lbs. Est.)
Min.
Delivered
Temp.
Max.
Delivered
Temp.
High
Temp.
Limit
WEC080 80 6 1/2” 60” 69” 23 1/4”
8”
UL
1453
3/4”
NPT
151
120
o
F
(48.8 C)
181
o
F
(82.8 C)
200
o
F
(93.3 C)
WEC100 100
7 1/4”
52” 61”
27”
206
WEC115 115 60 1/4” 69” 224
Table 2 - Specications and Dimensions - *** Refers to Electrical Specications - See Table 3 for Electrical Specications
Model #
# Elements and Thermo-
stats
Available Wattage Voltage
Full Load Current in Amps
(Single Phase)
C2X030
2
3,000
240
13
C2X045 4,500 19
C2X055 5,500 23
Table 3 - Electrical Specications Including Corresponding Wattages / Voltages / Amperages - *** Refers to Model Type and Gallon Size - See Table 2
for Model Specications and Dimensions
