whl-035 Rev. 002 Rel. 002 Date 11.1.17
7

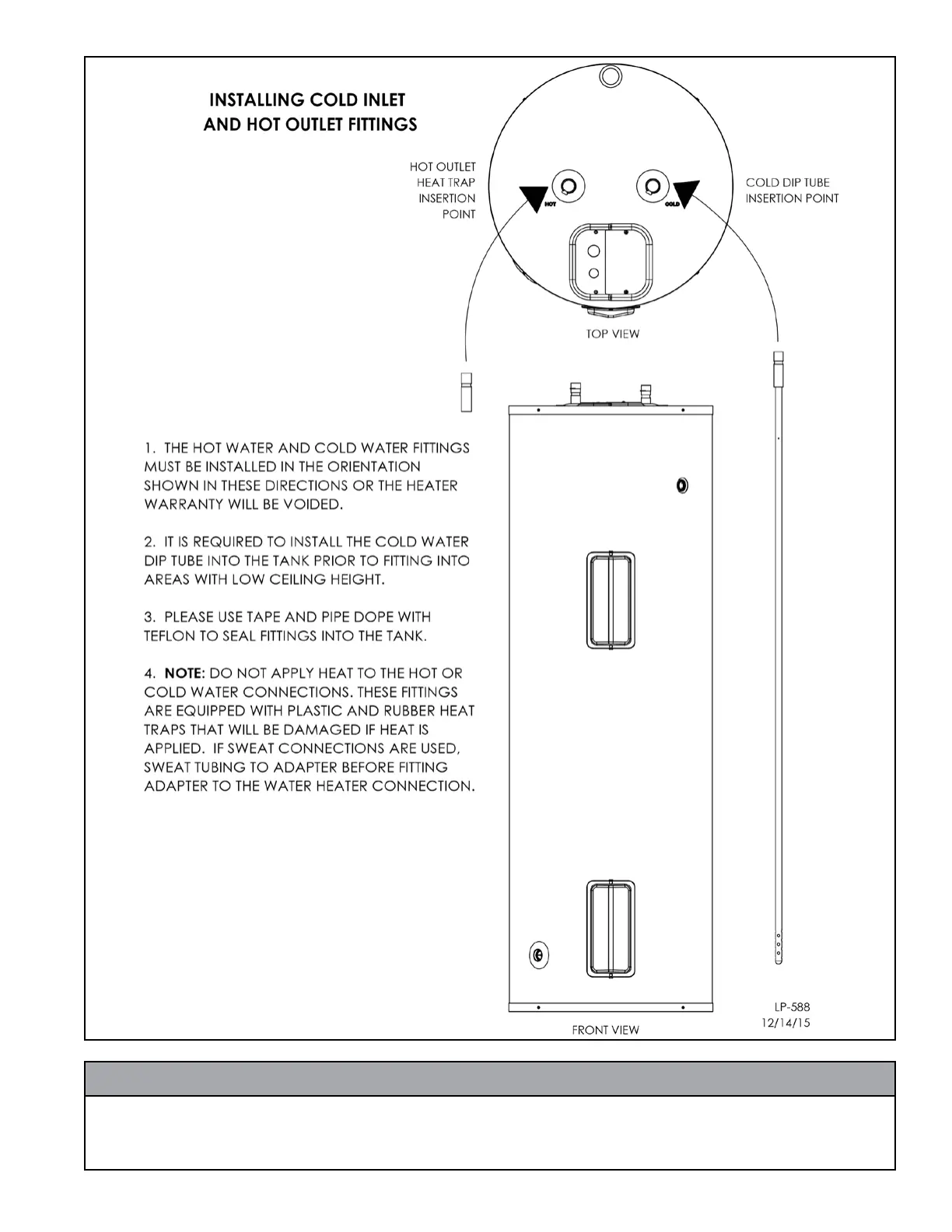

Figure 3 - Installing Cold Inlet and Hot Outlet Fittings
The Cold Inlet and Hot Outlet Fittings MUST BE INSTALLED according to the steps in Figure 3 for the electric water heater to operate
properly. Failure to install these ttings properly will result in improper water heater operation, possible substantial property damage,
and increased costs. Service calls to repair the installation and properly install these ttings ARE NOT COVERED by water heater warranty.
Improper installation WILL VOID the water heater warranty.
