PPM/W.BUS
* Different receivers, different ports.

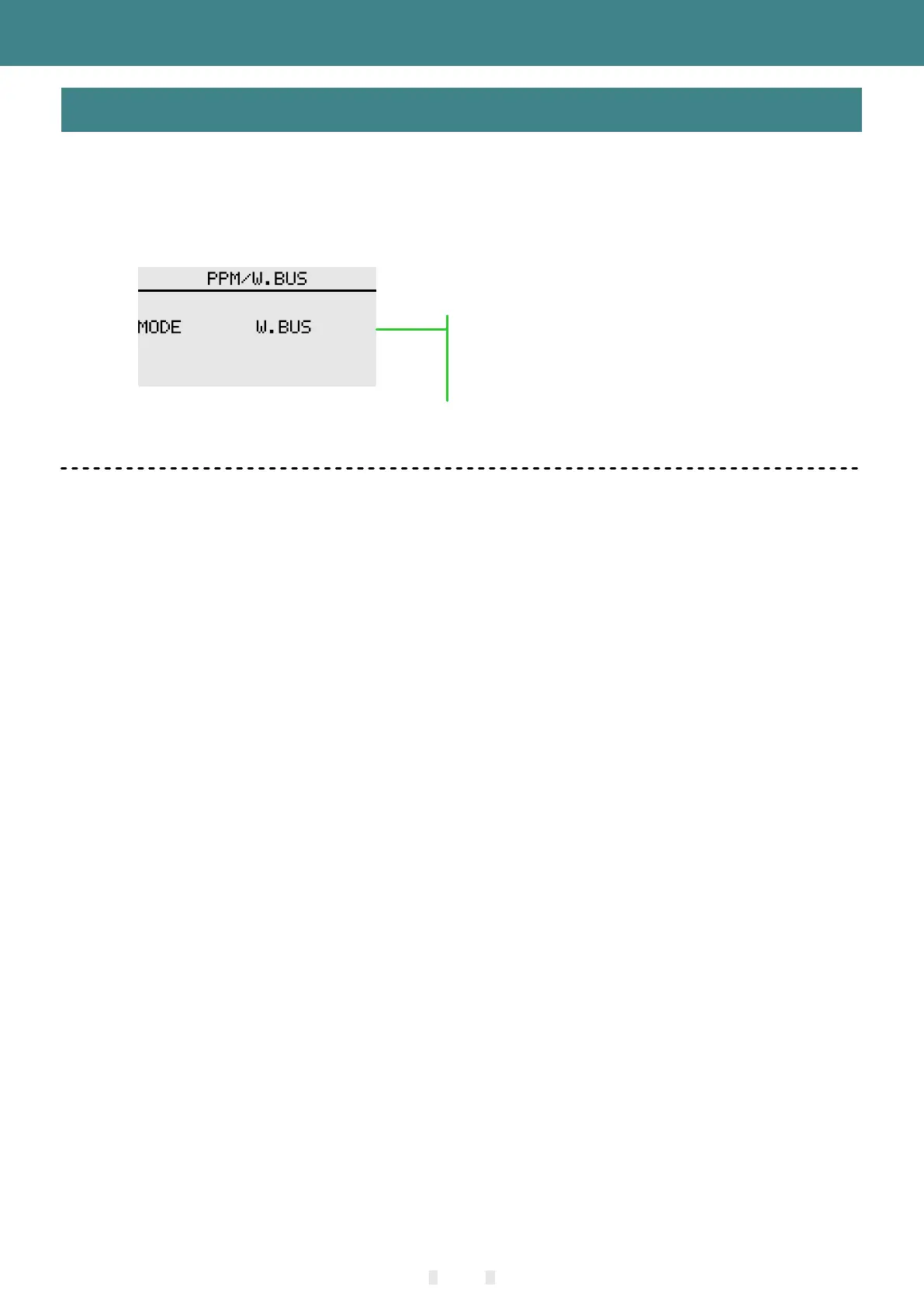

Interface path: HOME/MON.→ [LINKAGE SETTING] → [PPM/W.BUS]
Switch the receiver PPM/W.BUS output mode.
W.BUS mode is compatible with S.BUS signal.
PPM mode. The 6th port of the RF206S outputs with
a standard 4096 resolution and 8 channel PPM signal.
* After the switch is completed, the receiver status lamp can be used to check whether it is
successful.(refer to receiver operating status table).
Switching the 6th port mode of the receiver:
1 When the receiver is connected, click the mode button to switch the mode, click the function title in the
upper left corner to return to the previous menu and save the changes.
2 Please refer to the “Receiver manual instruction” section (page 15) “PPM/W.BUS Interface Operation
Mode Selection”, and the receiver can also directly switch the 6-port mode.
