WHEELSPEED ARIES 2022 - Section 2 ASSEMBLING, ADJUSTING YOUR WHEELSPEED ARIES E-BIKE; Installing the Front Wheel

WHEELSPEED ARIES 27.5" E-Bike 06
2.1 Installing the Front Wheel
For initial assembly, you will need to ask for
someone's help.

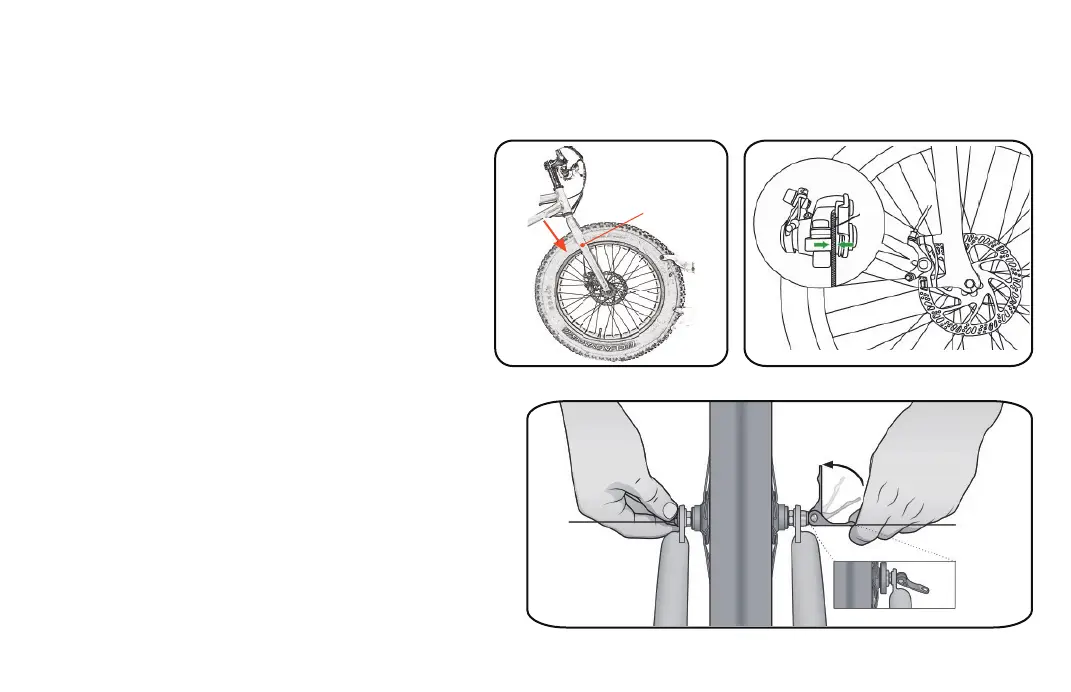

Step 1. Have someone hold the front wheel upright on
the floor (fig.1).
Step 2. Lower the front fork onto the front wheel. The
brake disc should go into the brake caliper in
between the brake pads and the axle should
enter the fork dropouts fully. (fig.2).
Step 3. Hold the quick release lever in line with the axle
and tighten the thumb nut until the lever can stay
in parallel to the floor without being held.Use the
palm of your hand to close the lever fully(Quick
release nut to be at the same end as the
brake caliper)(fig.3).
Section 2
ASSEMBLING, ADJUSTING YOUR WHEELSPEED ARIES E-BIKE
NOTE: Be careful not to position your fingers between
the latch and the stem. Doing so may result in injury.
Front fork
fig. 1
Attention:Tighten the
quick release with the
adjustment nut only!
Quick release
lever in the closed
position
Quick release
lever in the
open position
Brake disc
goes into the
brake caliper
Brake caliper
fig. 2
fig. 3
