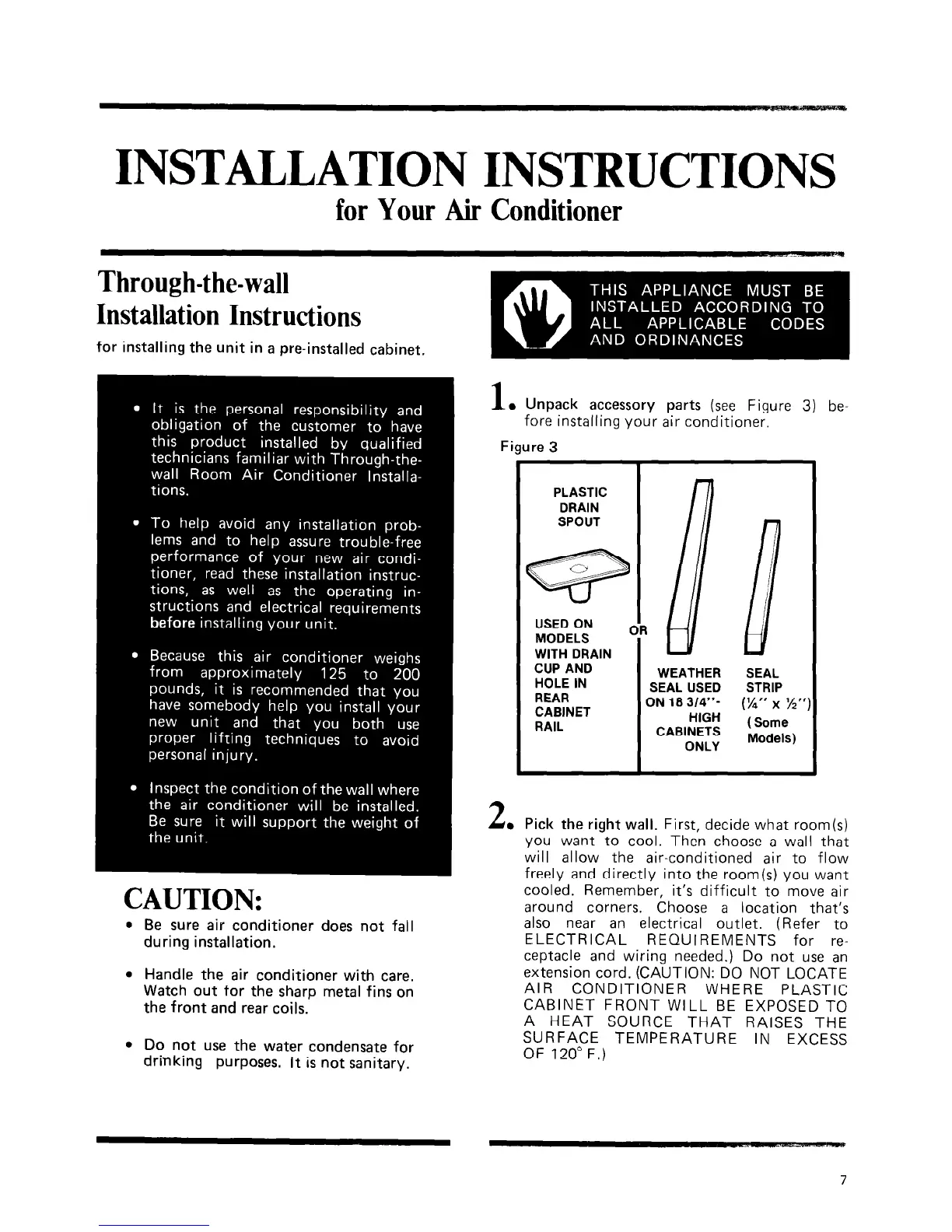

INSTALLATION INSTRUCTIONS
for Your Air Conditioner
Through-the-wall
Installation Instructions
for installing the unit in a pre-installed cabinet.
1
l
Unpack accessory parts
(see Figure 3) be-
fore installing your air conditioner.
Figure 3
CAUTION:
l
Be sure air conditioner does not fall
during installation.
l
Handle the air conditioner with care.
Watch out for the sharp metal fins on
the front and rear coils.
l
Do not use the water condensate for
drinking purposes. It is not sanitary.
PLASTIC
DRAIN
SPOUT
USED ON $
MODELS
WITH DRAIN
CUP AND
WEATHER
HOLE IN
SEAL USED
REAR
CABINET
ON 18 3/4”-
RAIL
HIGH
CABINETS
ONLY
0
SEAL
STRIP
(Ya” x X”
( Some
Models)
2
l
Pick the right wall.
First, decide what room(s)
you want to cool. Then choose a wall that
will allow the air-conditioned air to flow
freely and directly into the room(s) you want
cooled. Remember, it’s difficult to move air
around corners. Choose a location that’s
also
near
an electrical outlet. (Refer to
ELECTRICAL REQUIREMENTS for re-
ceptacle and wiring needed.) Do not use an
extension cord. (CAUTION: DO NOT LOCATE
AIR CONDITIONER WHERE PLASTIC
CABINET FRONT WILL BE EXPOSED TO
A HEAT SOURCE THAT RAISES THE
SURFACE TEMPERATURE IN EXCESS
OF 120” F.)
_
7
