PA
GE 20
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTRO
Y

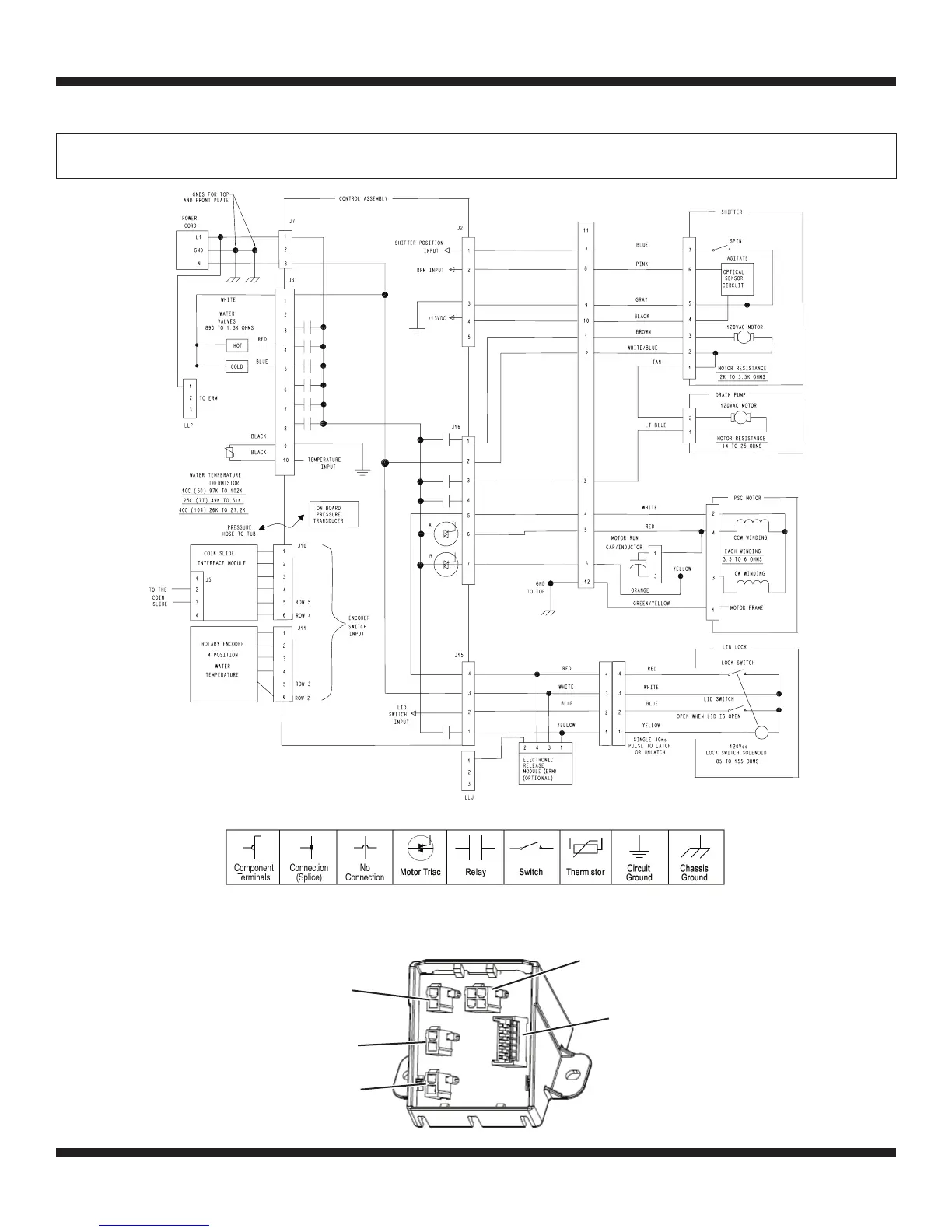

Wiring Diagram (No payment system) (Figure 9)
IMPORTANT: Electrostatic discharge may cause damage to machine control electronics. See page 1 for ESD information.
NOTE: Schematic shows shifter in SPIN position, lock switch open, and motor off.
Legend
Sets to Pay (jumper loaded)
or No P
ay (jumper removed)
Enables Thermistor (jumper loaded)
Disables Ther
mistor (jumper removed)
Enables DOE Rinse (jumper loaded)
Disables DOE Rinse (jumper removed)
Coin Slide Connection
CCU Connection
Coin Slide Interface Module (Figure 10)
