NOTE:If the washer must be operated with the
cabinet removed, the dispenser hoses
previously disconnected must be held
into the basket to avoid water spray.

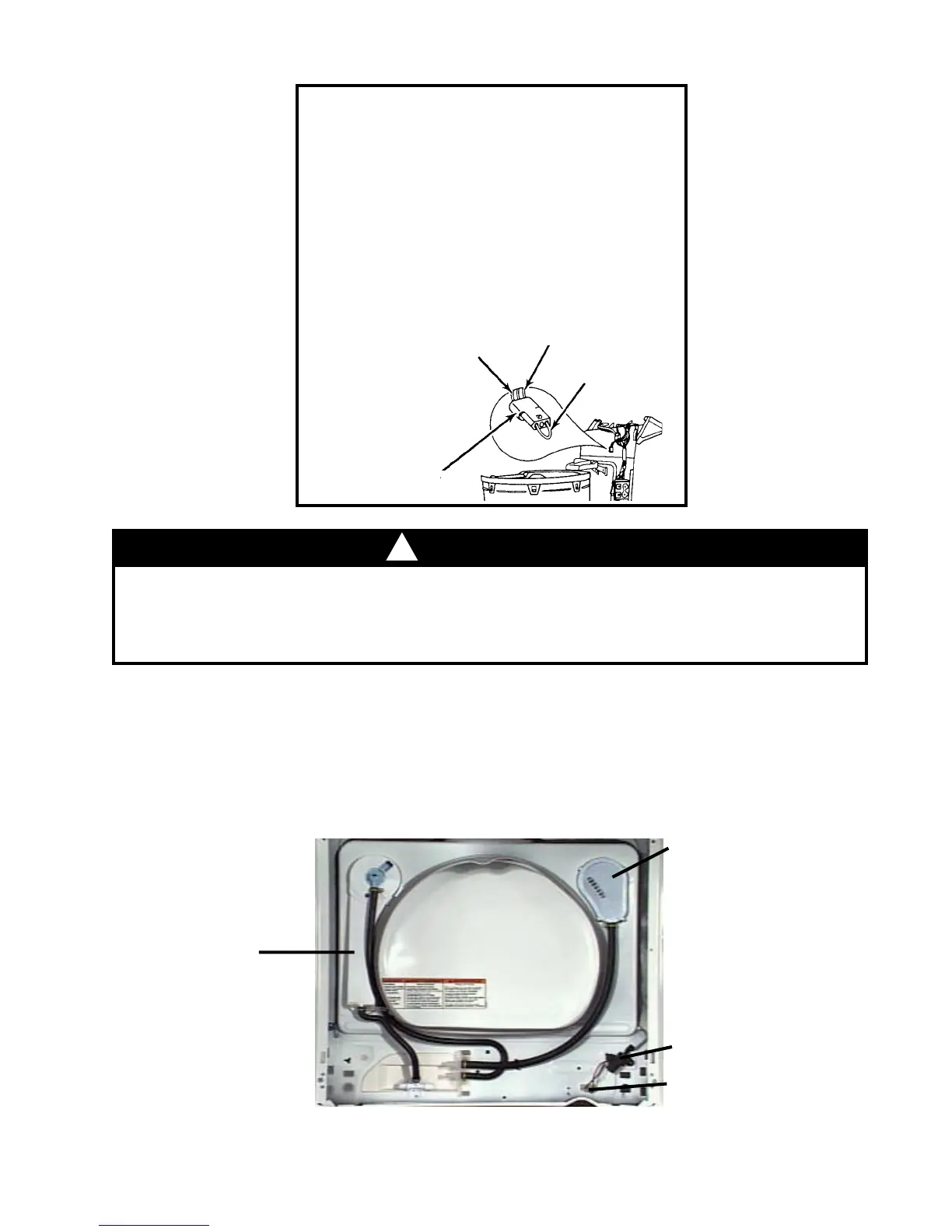

Install a jumper wire (Part No. 285784) in
the lid switch harness connector as
shown.
IMPORTANT: Use extreme caution when
operating the washer with
the cabinet removed as electri
cal shock may occur.
GRAY
VIOLET
HARNESS
CONNECTOR
JUMPER
WIRE
! IMPORTANT
For the purposes of illustration certain components are shown without
protective covers or shields. If any of these components are serviced or replaced
the protective covers or shields MUST be reinstalled.
Fig. 8
DETERGENT
DISPENSER
BLEACH and
FABRIC SOFTENER
DISPENSER
ASSEMBLY
HIDDEN LID
SWITCH
LID SWITCH
PLUG
Removing Components Attached to the Washer Top
Components attached to the underside of the washer top (Fig. 8) are:
• Bleach and Fabric Softener Dispenser Assembly
• Detergent Dispenser
• Hidden Lid Switch
