QUIET PAK™
The QUIET PAK™ System is designed to reduce water sounds and mechanical noises. The cabinet
and base are insulated with sound-dampening materials over which an additional tub wrap is added for
superior vibration and sound-dampening characteristics.

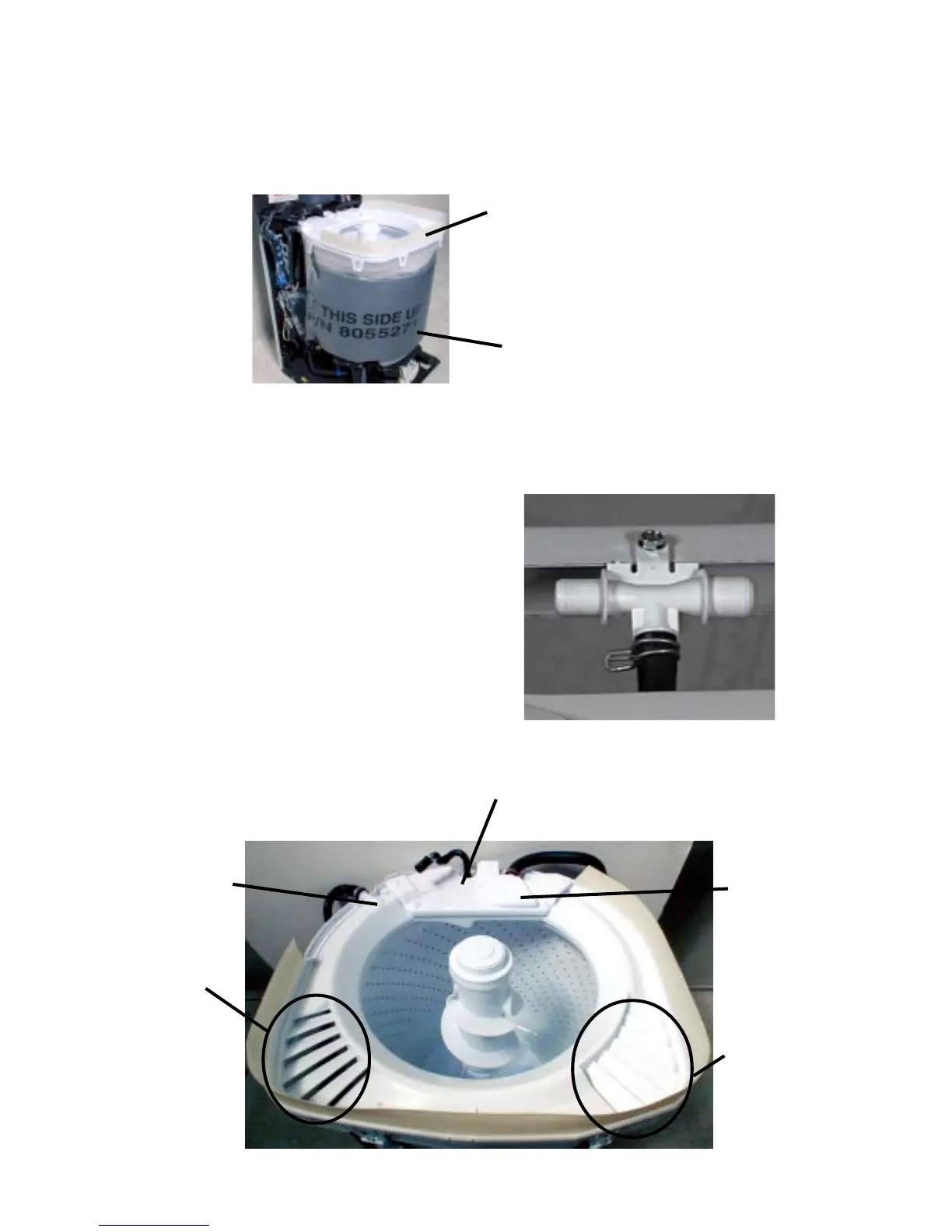

SOUND ABSORBING
TUB WRAP
RING
GUARD
Catalyst
Cleaning
Action™
Spray Inlet
Bleach/Fresh Water Mixture Inlet
Fresh Water Inlet
Fabric Softener
Mixture Inlet
Detergent/
Fresh Water
Mixture Inlet
BLEACH VENTURI
TUB RING
The bleach venturi causes a siphoning action to
draw bleach from the bleach dispenser. Water
passing across the venturi opening creates a low
pressure area behind the venturi pulling the bleach
into the passing water flow.
