Whirlpool DS201HW - Louver Setting; Continuous Drainage

44
Using your
Product

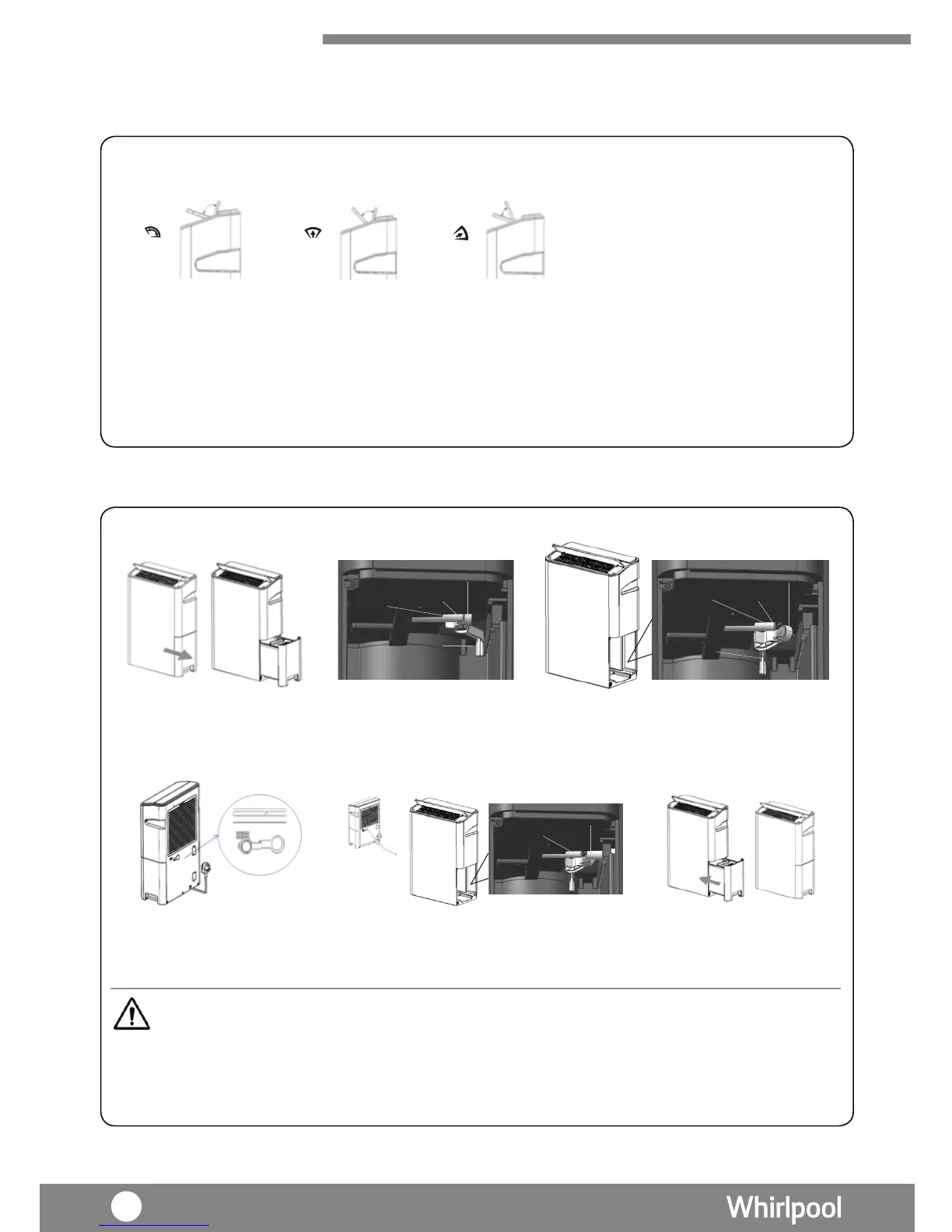

Louver Setting
1.Press “SWING” key to select the vertical louver swing angle.
2.Press “SWING” until the light is off, the louver will stop at the angle as is.
3. For horizontal louver, it can be operated manually by adjusting the horizontal louver slide to left or
right.
Remarks: When choosing different angle of the louver, louver will be swing to the largest angle for 10 seconds
first, and then move to
the selected option.
Vertical
louver swing
in wide angle
Vertical
louver swing
forward angle
Vertical
louver swing
forwards
CONTINUOUS DRAINAGE
1. Power off the unit and unplug the power plug
2. Take out the water tank 3. Open the drainage hole
hold the small handle (lower part of valve) and move toward left hand side. Then push
the small handle and x the position. The valve will be opened.
Cancel continuous drainage
return the valve to original position, by pull the small handle towards to your side.
4. Take off the stopper on the
backside
6. Replace the water tank
5. Insert the drainage hose
• inside the machine through the stopper hold.
• The drainage hose should be connected to the
drainage hole.
Remark:
• Drain hose inner diameter 14mm (outer diameter 18mm)
• Ensure tight fit of the drain hose to the drainage hole to avoid water leakage.
• If water tank is not in proper position, dehumidifying operation cannot be performed.
CAUTION
Drainage Hose
Drainage
hole
Not open Situation
Drainage
hole
Spill proof
plastic
Spill proof's Valve
Small handle
Drainage
hole
Spill proof
plastic
Spill proof's Valve
Small handle
