4-14
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.

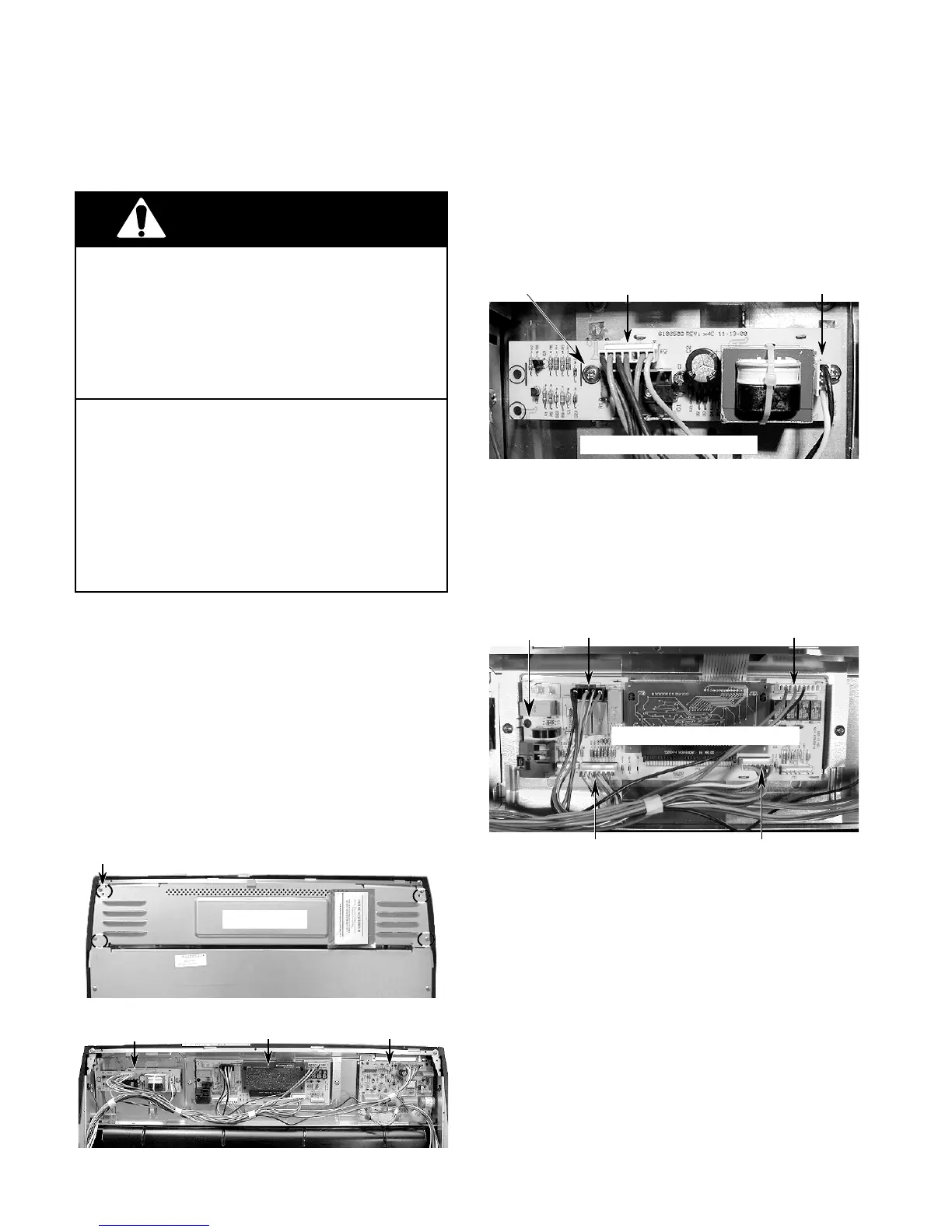

REMOVING THE CONTROL POWER SUPPLY,
THE ELECTRONIC OVEN CONTROL, &
THE DIRECT SPARK IGNITION CONTROL
CAUTION: When you work on the gas range,
be careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.
WARNING
FIRE HAZARD
Shut off gas supply line valve before servic-
ing the range.
Check all gas line connections and replace
all panels before operating the range.
Failure to do so could result in explosion, fire,
or other injury.
1. Turn off the gas to the range and discon-
nect the power cord from the wall outlet.
2. Pull the range away from the wall so you
can access the back of the unit.
3. Remove the four screws from the top
cover and remove the cover.
4. To remove the control power supply:
a) Disconnect plugs P1 and P2.
b) Remove the two screws.
Top Cover
Screw (1 of 4)
Control Power Electronic Oven Direct Spark
Supply Control Ignition Control
P2
P1
Screw (1 of 2)
5. To remove the electronic oven control:
a) Disconnect plugs P3, P4, P7, and P8.
b) Remove the mounting screw.
c) Slide the board to the left and remove it
from the bracket clips.
P3
P4
P7
P8
Screw
Control Power Supply
Electronic Oven Control
