COMPONENT ACCESS
Multi-Door Freestanding Refrigerator
n
4-3
Machine Compartment Components (Continued)

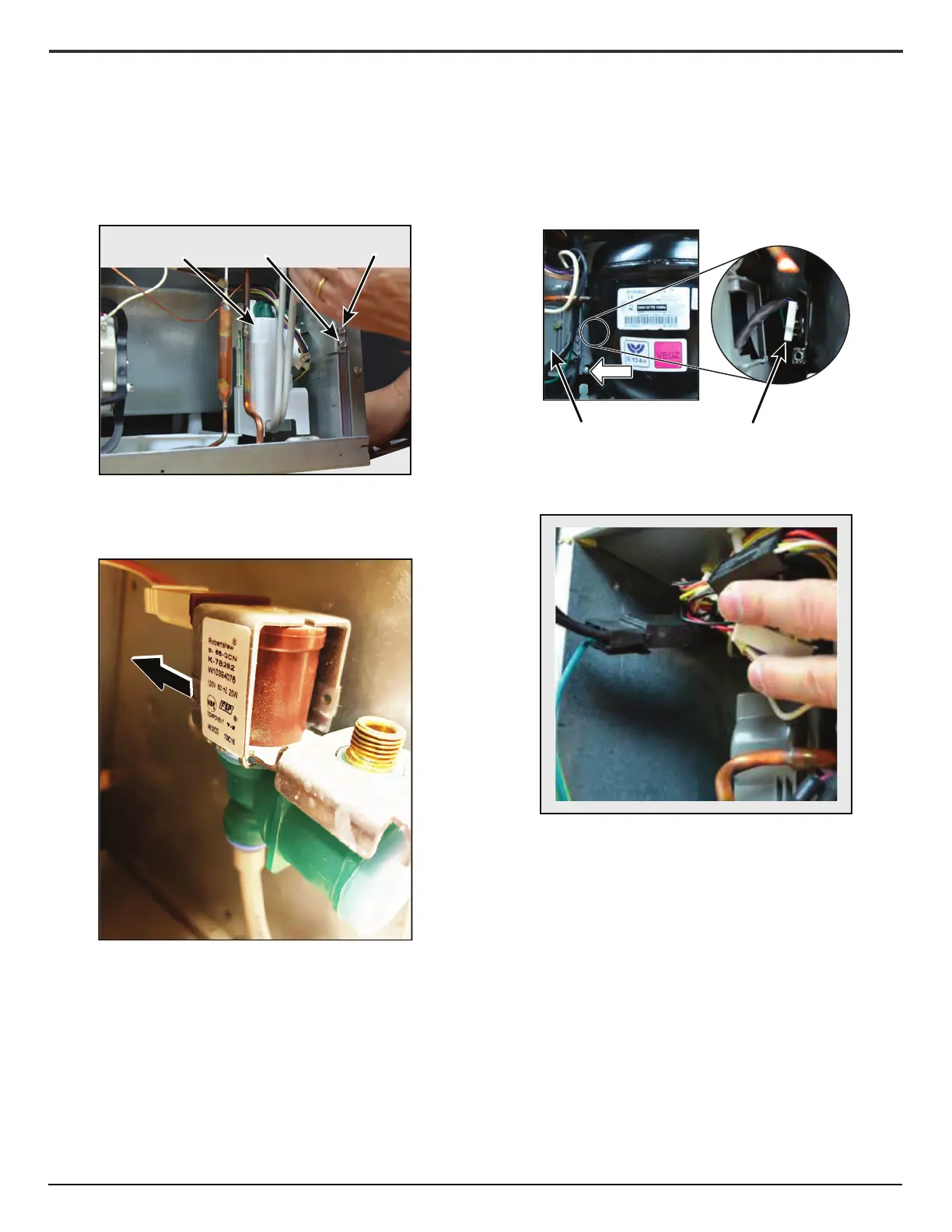

1. Unplug refrigerator or disconnect power.
2. Access the water valve by removing screws holding machine
compartment cover on back of refrigerator.
3. To remove the water valve, remove the screws securing the
valve to the machine compartment base.
4. Unplug the wire harnesses. Disconnect the water lines.
1. Unplug refrigerator or disconnect power.
2. Access the inverter by removing screws holding machine
compartment cover on back of refrigerator.
3. Remove the Phillips screw securing the inverter to the
compressor terminal housing.
4. Posion the main cabinet wiring harness out of the way to
access the inverter.
A
B
B
A. Water valve
B. Screws
A B
To Next Page
