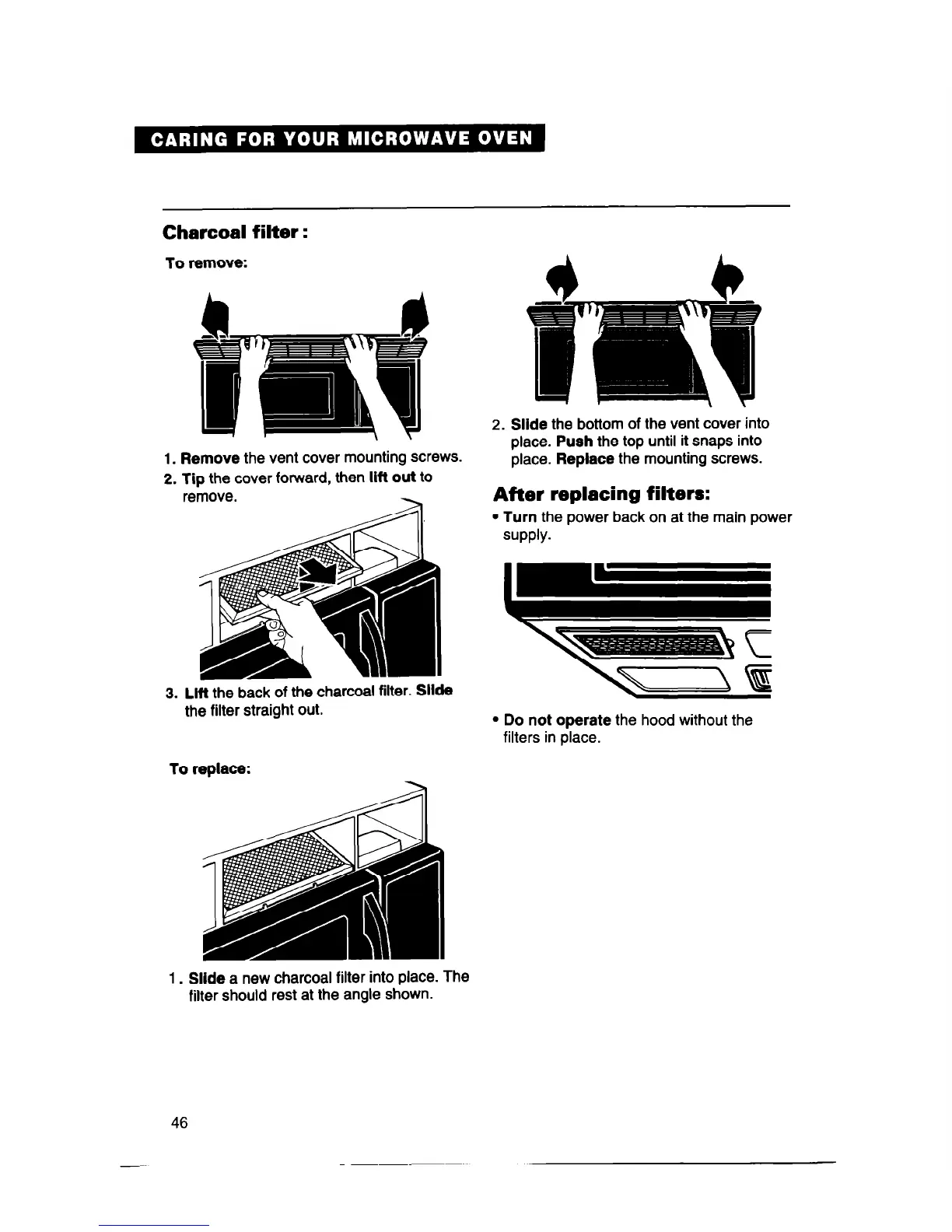

Charcoal filter :
To remove:
1. Remove the vent cover mounting screws.
2. Tip the cover forward, then lift out
to
remove.
3. Lift the back of the charcoal filter. Slide
the filter straight out.
To replace:
1
. Slide a new charcoal filter into place. The
filter should rest at the angle shown.
46
2.
Slide the bottom of the vent cover into
place. Push the top until it snaps into
place. Replace the mounting screws.
After replacing filters:
l
Turn the power back on at the main power
supply-
l
Do not operate the hood without the
filters in place.
