INSTALLATION INSTRUCTIONS

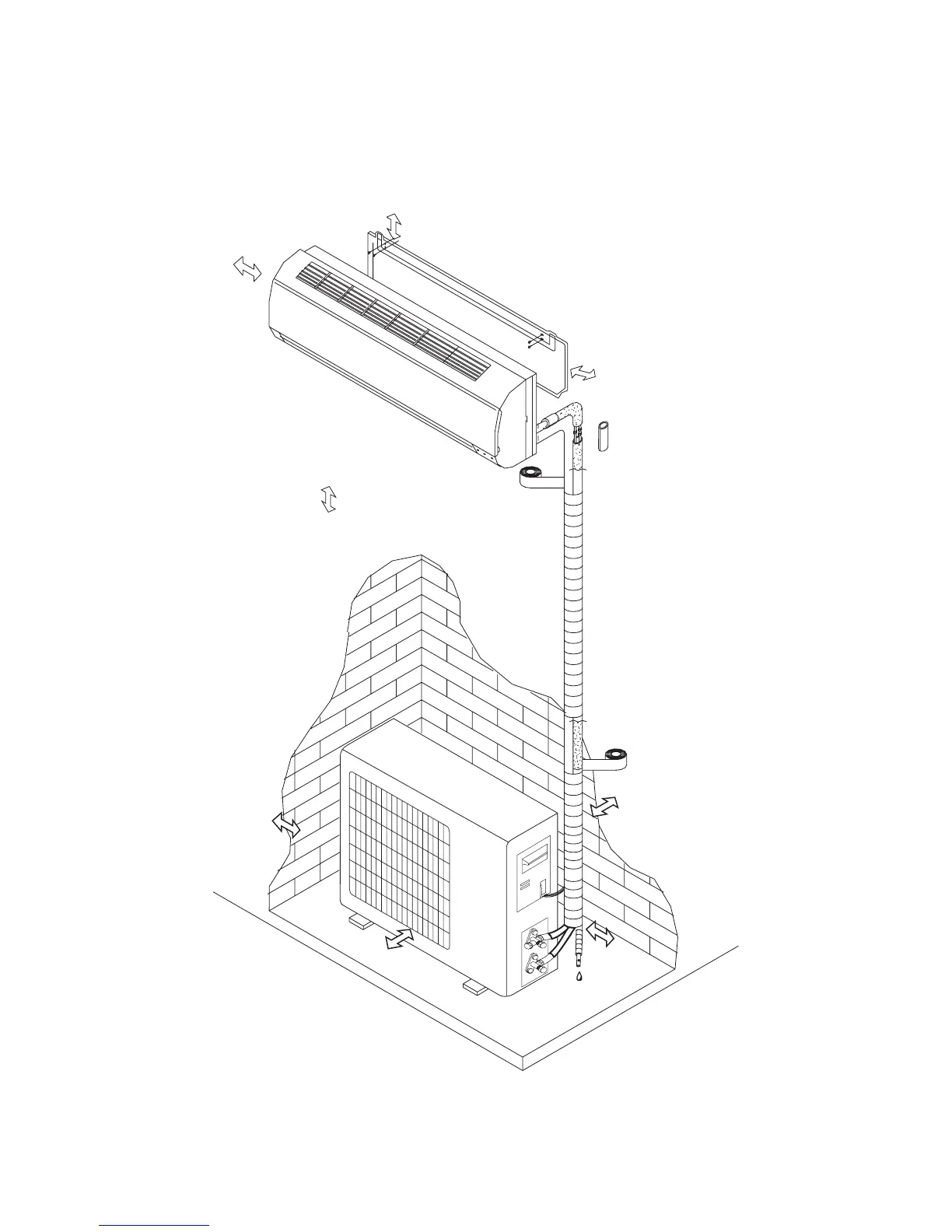

Installation diagram
NOTE: The figure above is only a simple presentation of the unit, it may not match the external
appearance of the product you purchased. Installation must be performed in accordance with the national
wiring standards by authorized service people only.
Distance from wall
should be over 150mm
Distance from ceiling
should be over 150mm
Distance from floor
should be over 2500mm
Distance from the wall
should be over 150mm
Air intake distance from
the wall should be over
300mm
Air intake distance from
the wall should be over
300mm
Air outlet distance from the wall
should be over 2000mm
Over 500mm
18
Indoor unit
Outdoor unit
