Parts of the System
Materials and Tools Needed
Typical Undersink Installation
= F
ilter system assembly
= Water supply fitting
= F
iltered water faucet for sink or countertop mounting
= C
olor coded 3/8" tubing to make all needed connections
= F
ilter change drip tray
NOTE: Gather the required tools before starting installation. Read and
follow the instructions provided with any tools listed here.
= Slotted and Phillips screwdrivers
= Pliers and adjustable jaw wrench
= Tubing cutter
= Electric drill and 1-1/4" drill bit if mounting hole is needed for the faucet
IMPORTANT: To avoid damaging the sink, consult a qualified plumber or
installer for drilling procedures in porcelain or stainless steel.

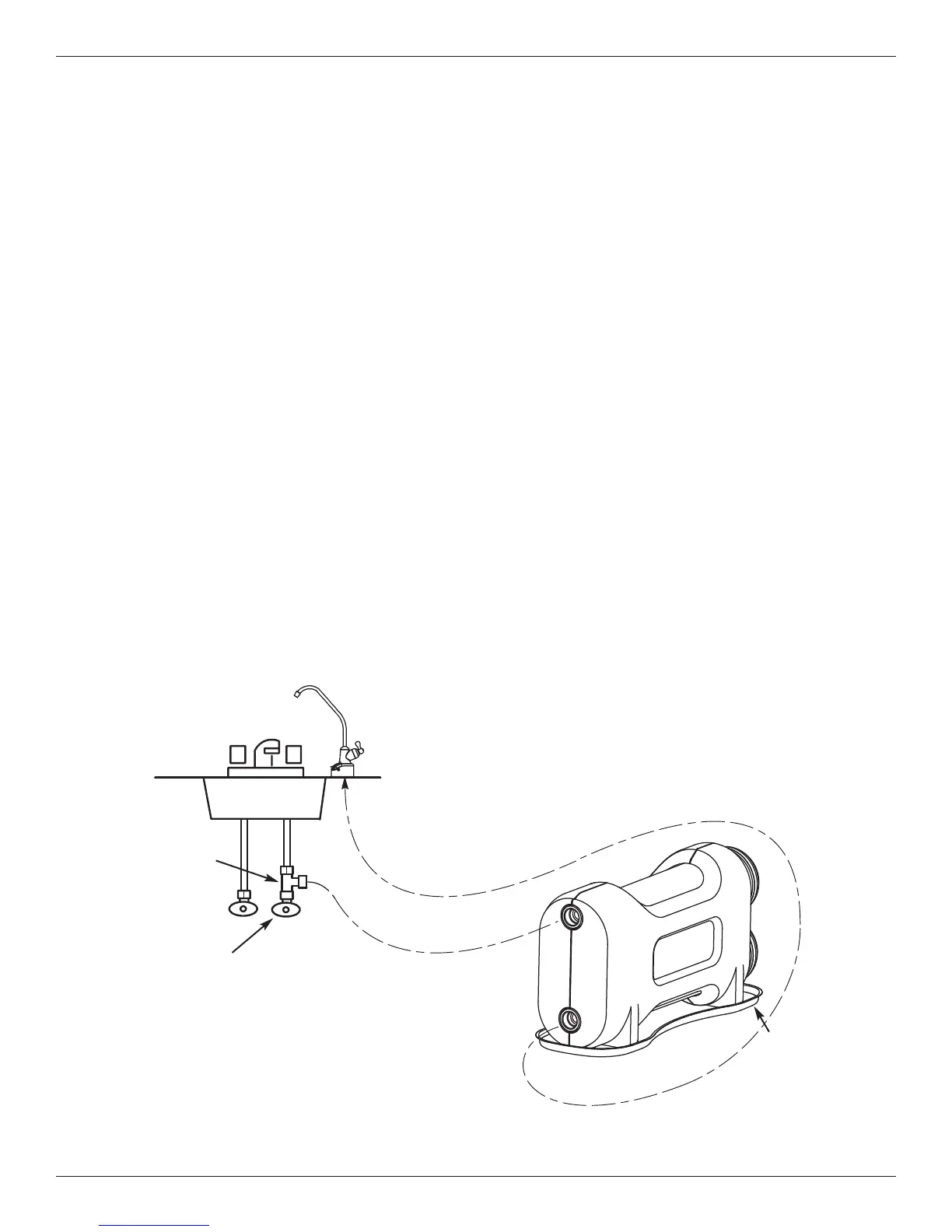

Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold drinking water. Refer to the following drawing.
shutoff valve
filtered water
faucet
Yellow Tubing
WATER IN
water supply
fitting
SINK
HOT COLD
FIG. 2
Blue Tubing
WATER OUT
Blue Tubing
WATER OUT
IMPORTANT: Allow adequate open space
behind the water filtration
system to avoid sharp bends
or kinks in the tubing.
filter change
drip tray
