Whirlpool WHES33 - Installation Instructions

8
Installation Instructions

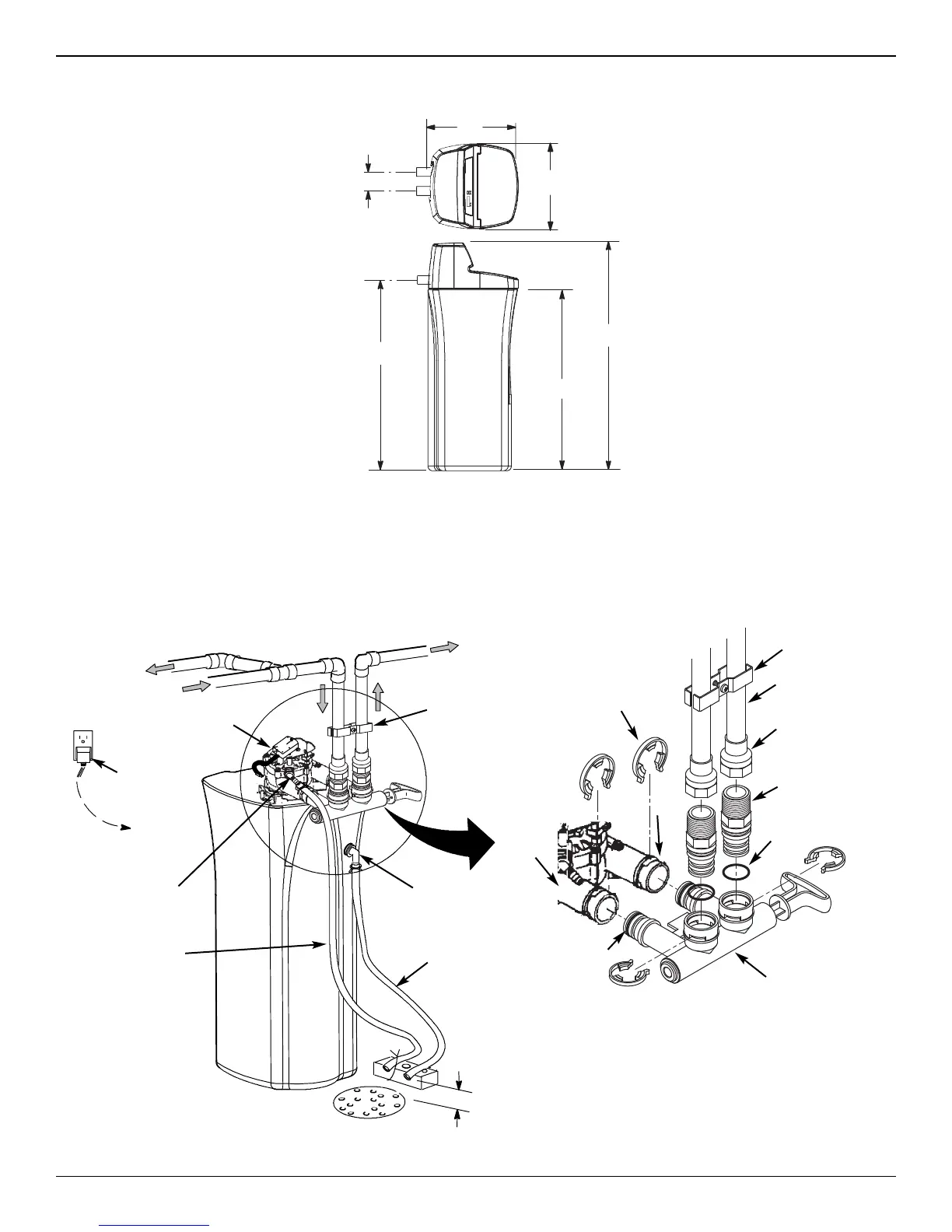

TYPICAL INSTALLATION
FIG. 9
Inlet
Outlet
Clips
Ground
Clamp
Pipe
To Outside
Faucets
1” NPT Sweat
Adaptor (not
included)
O-ring
Single
Bypass Valve
Lubricated
O-ring
Ground
Clamp
Conditioned
Water
Hard Water
Main Water Pipe
Plug-in
Transformer
Water Softener
Valve
To
Controller
Valve Drain
Elbow
Valve Drain
Hose*
*Do not connect
the water softener
valve drain tubing
to the salt storage
tank overflow
hose.
Floor Drain
Overflow
Drain Elbow
Salt Storage
Tank Overflow
Hose*
Secure Valve Drain Hose
in place over Floor Drain
NOTE: See “Air Gap Requirements” section.
NOTE: Water Softener shown with Salt Lid and
Top Cover removed
1” NPT
Threaded
Adaptor
1-1/2”
air gap
Dimensions
FIG. 8
35”
43-5/16”
3-3/8”
36-1/2”
OUT
IN
18”
19”
IN – OUT
