10

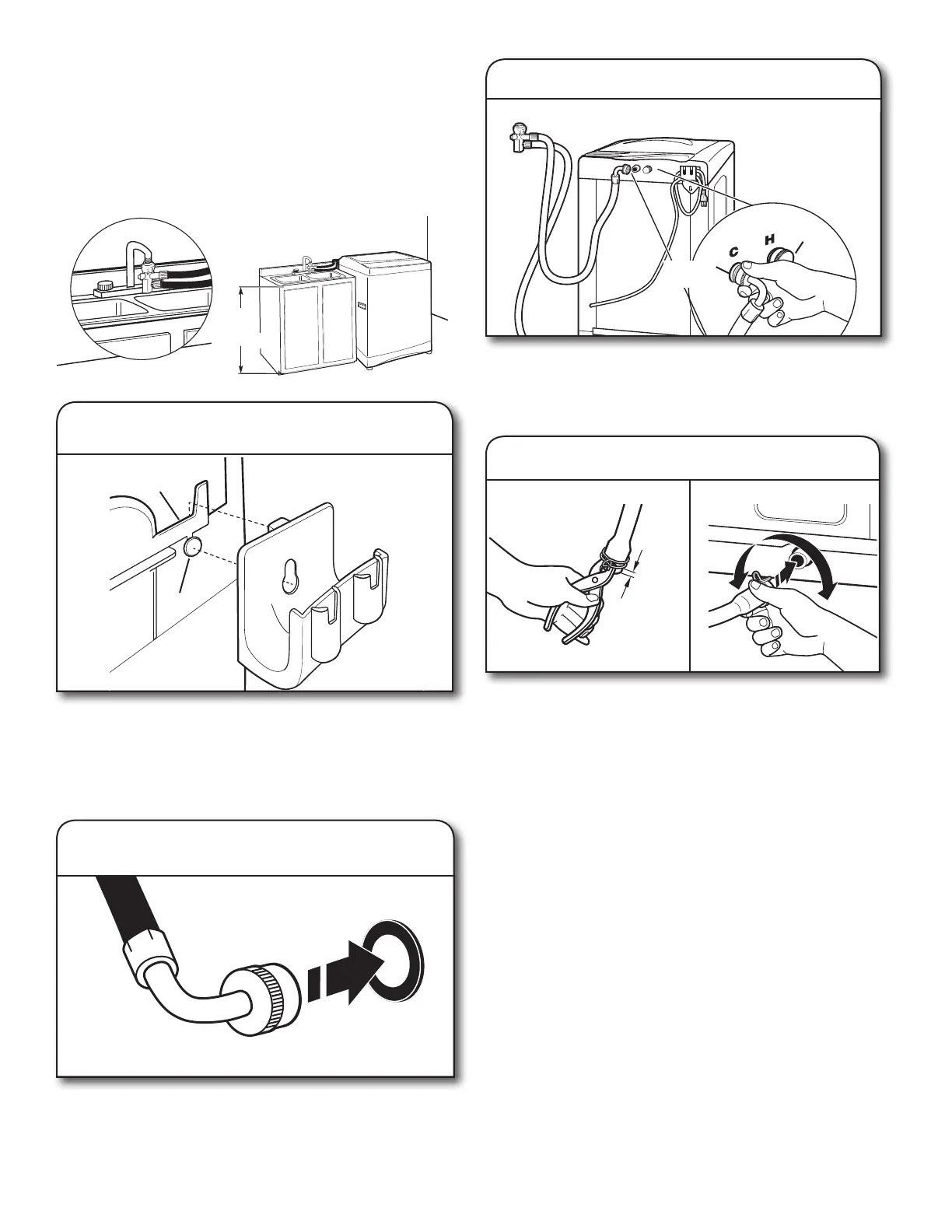

PORTABLE INSTALLATION
INSTRUCTIONS
Drain System
The washer must drain into a sink or laundry tub with
a carry-away capacity of 17 gal. (64.5 L) per minute
(for portable installations). The top of the tub must be
at least 27" (686 mm) above oor and no higher than
48" (121.9 cm) from the bottom of the washer.
min.
27"
(686 mm)
1. Attach hose bracket
Slot
Post
Place the hose bracket over the post on the back of the
washer and position the tab so it will insert into the slot. Push
down to lock into place.
Connect Fill-And-Drain Hose
Proper connection of the ll-and-drain hose will protect your
oors from damage due to water leakage.
2. Insert new at washer into
inlet hose
Coupling Washer
Insert new at washer (supplied) into the end of the inlet hose.
Firmly seat the washer in the coupling.
3. Connect ll hose
Attach the ll hose to the cold water (left) inlet valve.
Tighten coupling by hand. Use pliers to make an additional
2/3 turn.
NOTE: Do not overtighten. Damage to the valves can result.
Hot water (right) inlet valve is capped. Leave this valve capped.
4. Connect drain hose
¼"
(6 mm)
To keep the ll-and-drain hose from leaking, it must be
installed according to the following instructions.
IMPORTANT: To ensure proper installation, this procedure
must be followed exactly.
Wet inside end of the drain hose with tap water.
IMPORTANT: Do not use any lubricant other than water.
Squeeze ears of double-wire clamp with pliers to open. Place
clamp over the straight end of the drain hose ¼" (6 mm) from
the end. Twist hose back and forth while pushing down onto
drain connector at the bottom of the washer. Continue until
hose contacts the cabinet.
Cap
Connect
hose
