White 310 - Electrical Connections

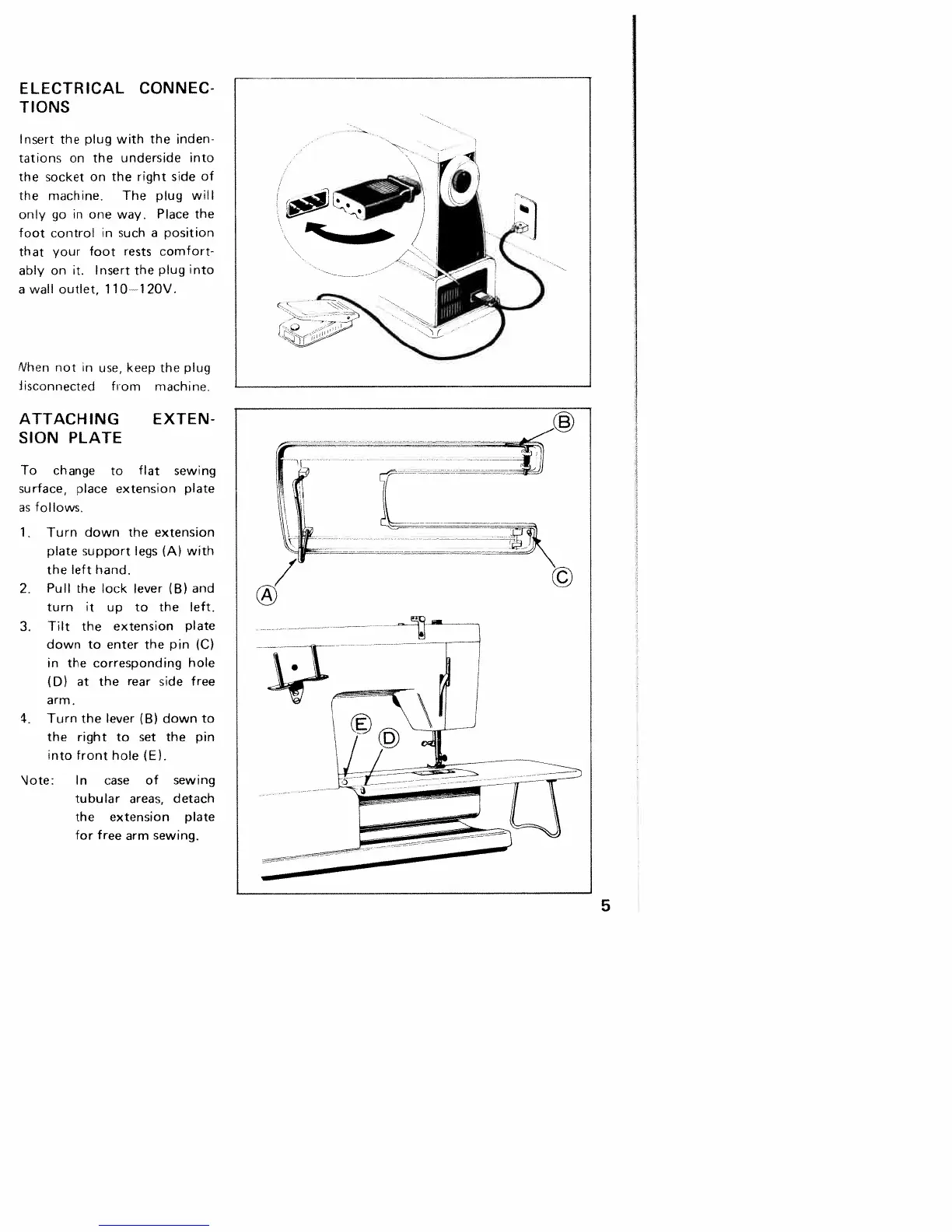

ELECTRICAL
CONNEC
TIONS
Insert
the
plug with
the inden
tations
on the
underside into
the
socket
on
the
right side
of
the machine.
The
plug
will
only go
in
one way.
Place the
foot
control in such
a position
that
your foot
rests comfort
ably
on it.
Insert
the plug into
a wall
outlet,
110—1 20V.
flhen
not in
use,
keep
the
plug
Jisconnected
from
machine,
ATTACHING
EXTEN
SION
PLATE
To change
to
fiat sewing
surface,
place
extension
plate
as
follows.
1, Turn
down
the extension
plate
support
legs
(A>
with
the
left
hand.
2.
Pull
the
lock lever
(B>
and
turn
it
up to
the left.
3.
Tilt the extension
plate
down
to
enter
the
pin
(C)
in
the corresponding
hole
(D)
at the rear
side free
arm.
.
Turn the
lever
(B)
down
to
the
right
to set the
pin
into front
hole
(E).
\Jote:
In
case of sewing
tubular areas,
detach
the
extension
plate
for
free
arm sewing.
5
