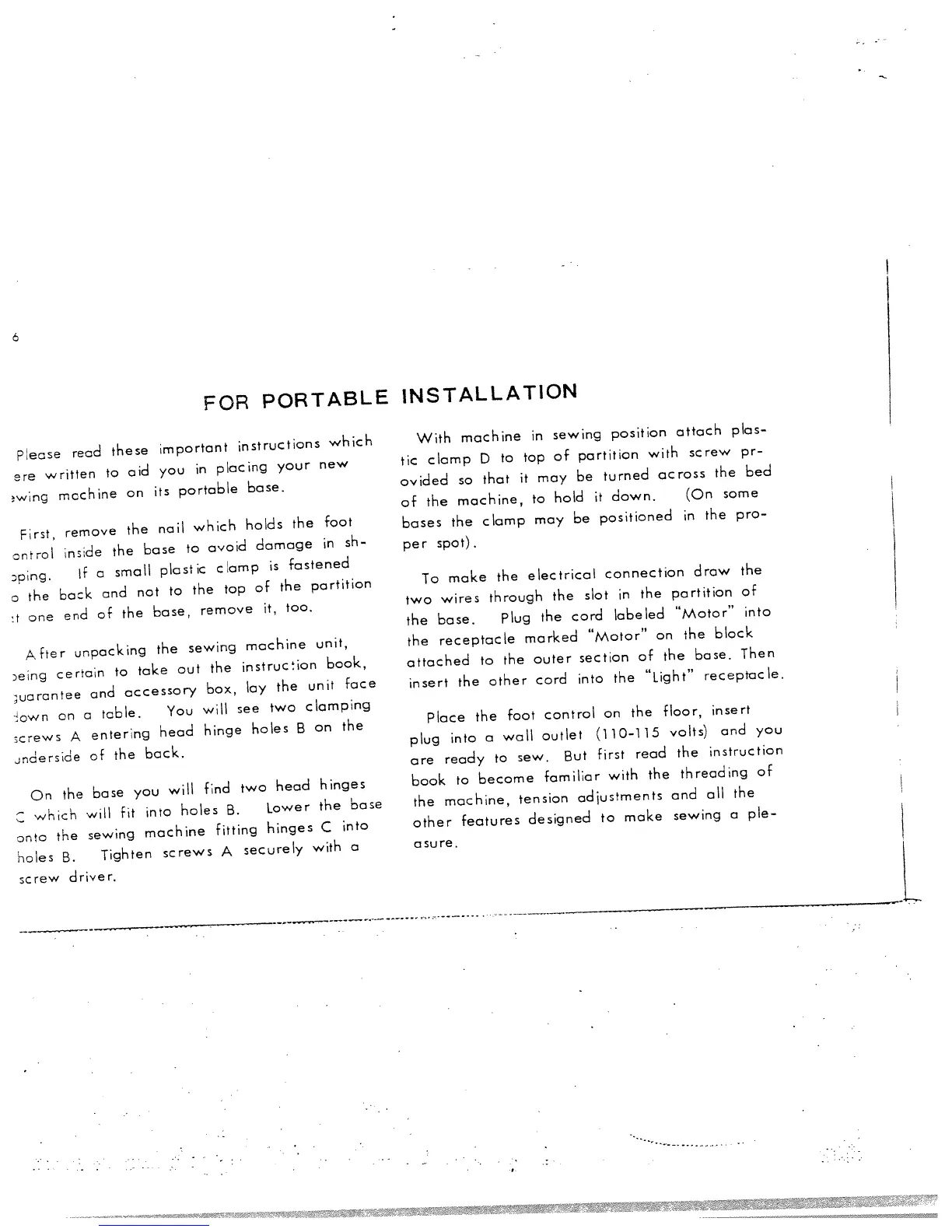

White 535 - Portable Installation Guide

FOR
PORTABLE
INSTALLATION
Please
read
these
important
instructions
which
ere
written
to
aid
you
in
placing
your
new
wing
machine
on
its
portable
base.
First,
remove
the
nail
which
holds
the
foot
ontrol
inside
the
base
to
avoid
damage
in
sh
Dping.
If
a
small
plastic
clamp
is
fastened
o
the
back
and
not
to
the
top
of
the
partition
t
one
end
of
the
base,
remove
it,
too.
A
fter
unpacking
the
sewing
machine
unit,
eing
certain
to
take
out
the
instruc’ion
book,
;ucraniee
and
accessory
box,
lay
the
unit
face
sown
on
a
table.
You
will
see
two
clamping
screws
A
entering
head
hinge
holes
B
on
the
underside
of
the
back.
On
the
base
you
will
find
two
head
hinges
C
which
wifl
fit
into
holes
B.
Lower
the
base
onto
the
sewing
machine
fitting
hinges
C
into
holes B.
Tighten
screws
A
securely
with
a
screw
driver.
With
machine
in
sewing
position
attach
plas
tic
clamp
D
to
top
of
partition
with
screw
pr
ovided
so
that
it
may
be
turned
across
the
bed
of
the
machine,
to
hold
it
down.
(On
some
bases
the
clamp
may
be
positioned
in
the
pro
per
spot).
To
make
the
electrical
connection
draw
the
two
wires
through
the
slot
in
the
partition
of
the
base.
Plug
the
cord
labeled
“Motor”
into
the
receptacle
marked
“Motor”
on
the
block
attached
to
the
outer
section
of
the
base.
Then
insert
the
other
cord
into
the
“Light”
receptacle.
Place
the
foot
control
on
the
floor,
insert
plug
into
a
wall
outlet
(H
0-115
volts)
and
you
are
ready
to
sew.
But
first
read
the
instruction
book
to
become
familiar
with
the
threading
of
the
machine,
tension
adjustments
and
all
the
other
features
designed
to
make
sewing
a
ple
a
sure.
