White 535 - Placing Bobbin Case in Shuttle

7

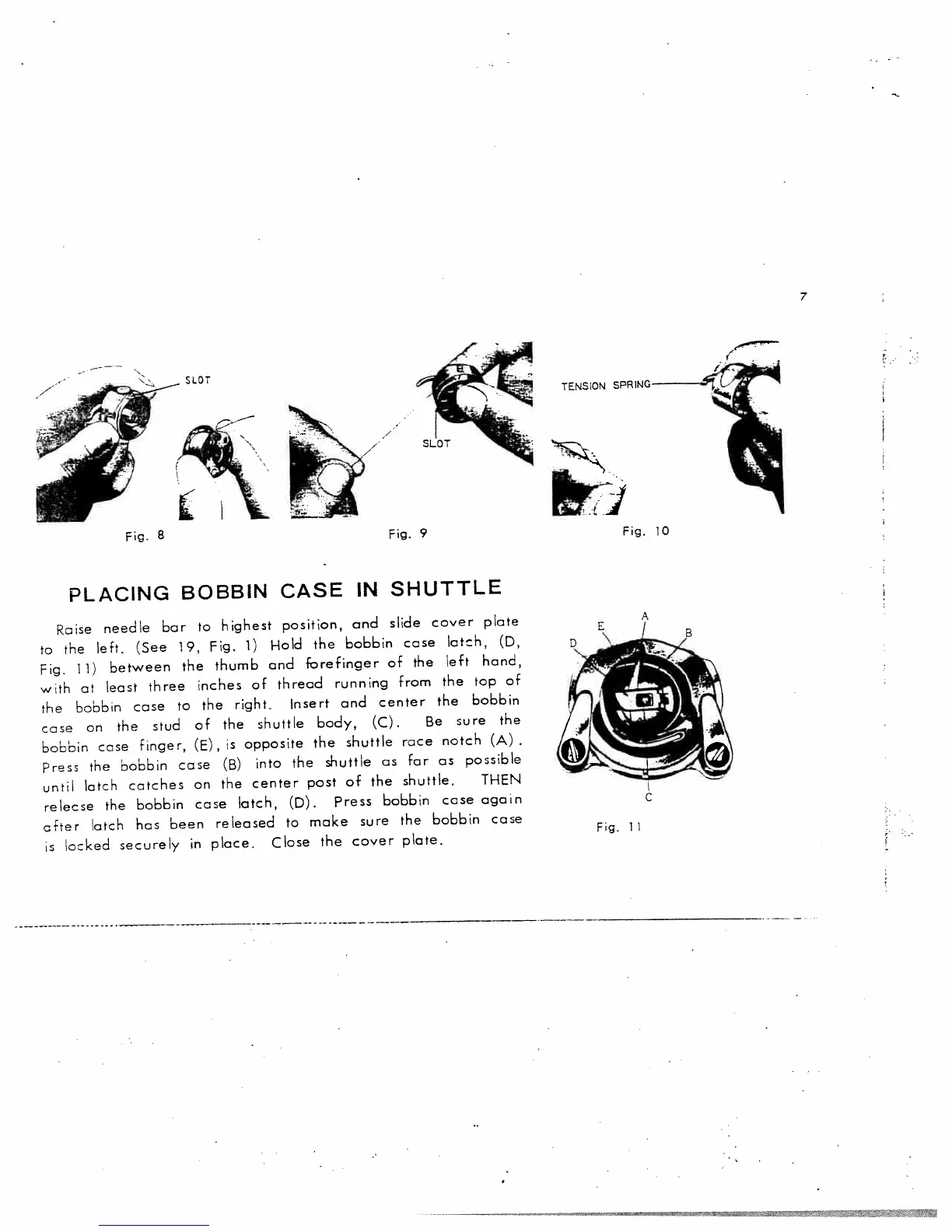

PLACING
BOBBIN
CASE
IN
SHUTTLE
Raise
needle
bar
to
highest
position,
and
slide
cover
plate
to
the
left.
(See
19,
Fig.
1)
Hold
the
bobbin
case
latch,
(D,
Fig.
11)
between
the
thumb
and
forefinger
of
the
left
hand,
with
at
least
three
inches
of
thread
running
from
the
top
of
the
bobbin
case
to
the
right.
Insert
and
center
the
bobbin
case
on
the
stud
of
the
shuttle
body,
(C).
Be
sure
the
bobbin
case
finger,
(E),
is
opposite
the
shuttle
race
notch
(A)
Press
the
bobbin
case
(B)
into
the
shuttle
as
far
as
possible
until
latch
catches
on
the
center
post
of
the
shuttle.
THEN
release
the
bobbin
case
latch,
(D).
Press
bobbin
case
again
after
latch
has
been
released
to
make
sure
the
bobbin
case
is
ocked
securely
in
place.
Close
the
cover
plate.
TENSION
Fig.
B
Fig.
9
Fig.
10
A
C
Fig.
11
