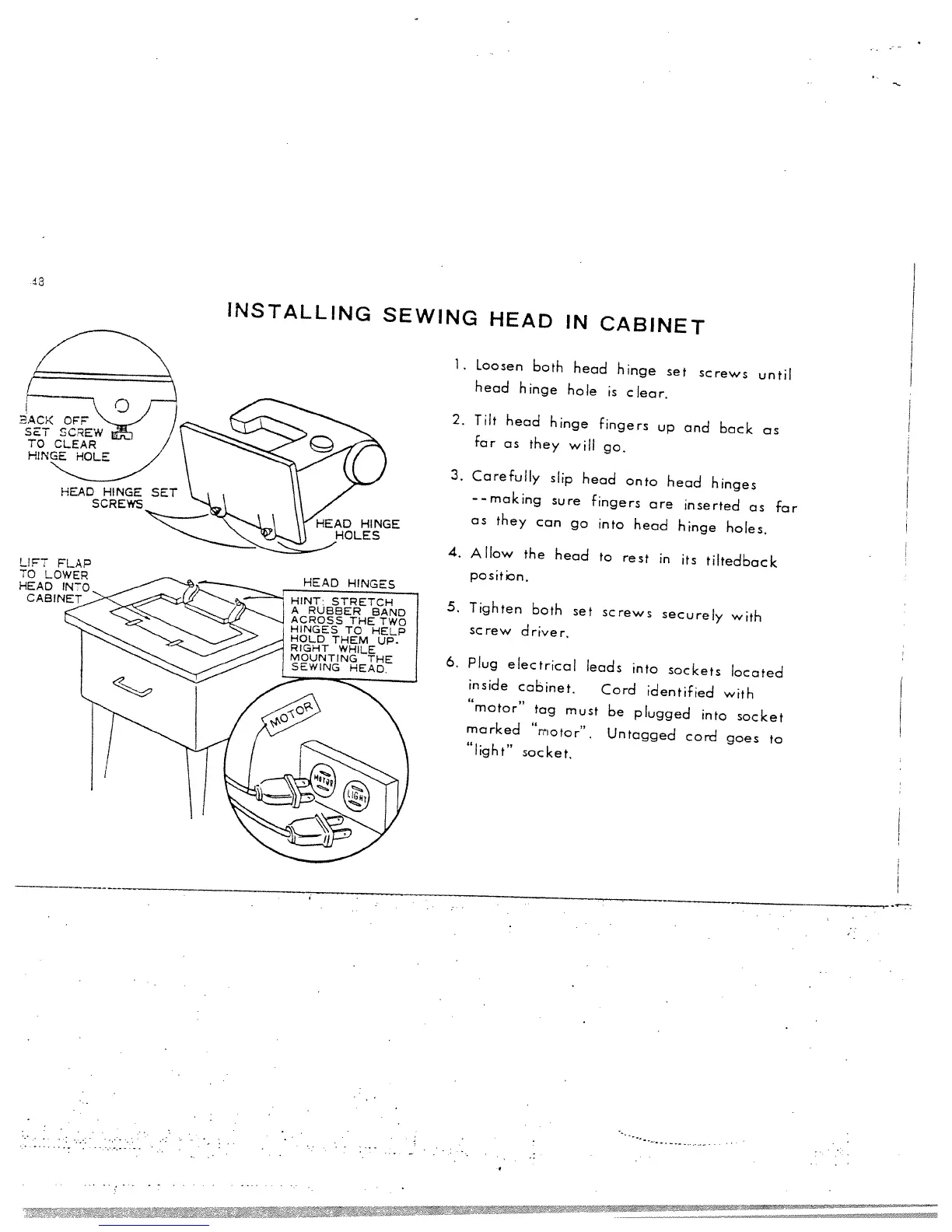

White 535 - Installing Sewing Head in Cabinet

INSTALLING
SEWING
HEAD
IN
CABINET
1.
Loosen
both
head
hinge
set
screws
until
head
hinge
hole
is
clear.
2.
Tilt
head
hinge
fingers
up
and
back
as
for
as
they
will
go.
3.
Carefully
slip
heod
onto
head
hinges
-
-
making
sure
fingers
are
inserted
as
far
as
they
can
go
into
head
hinge
holes.
4.
Allow
the
head
to
rest
in
its
tiltedbock
posit
iD
n.
5.
Tighten
both
set
screws
securely
with
screw
driver.
6.
Plug
electrical
leads
into
sockets
located
inside
cabinet.
Cord
identified
with
“motor”
tag
must
be
plugged
into
socket
marked
“motor”.
Untagged
cord
goes
to
“light”
socket.
HEAD
HINGES
HINT:
STRETCH
A
RUBBER
BAND
ACROSS
THE
TWO
HINGES
TO
HELP
HOLD
THEM
UP.
RIGHT
WHILE
MOUNTING
THE
SEWING
HEAD.
