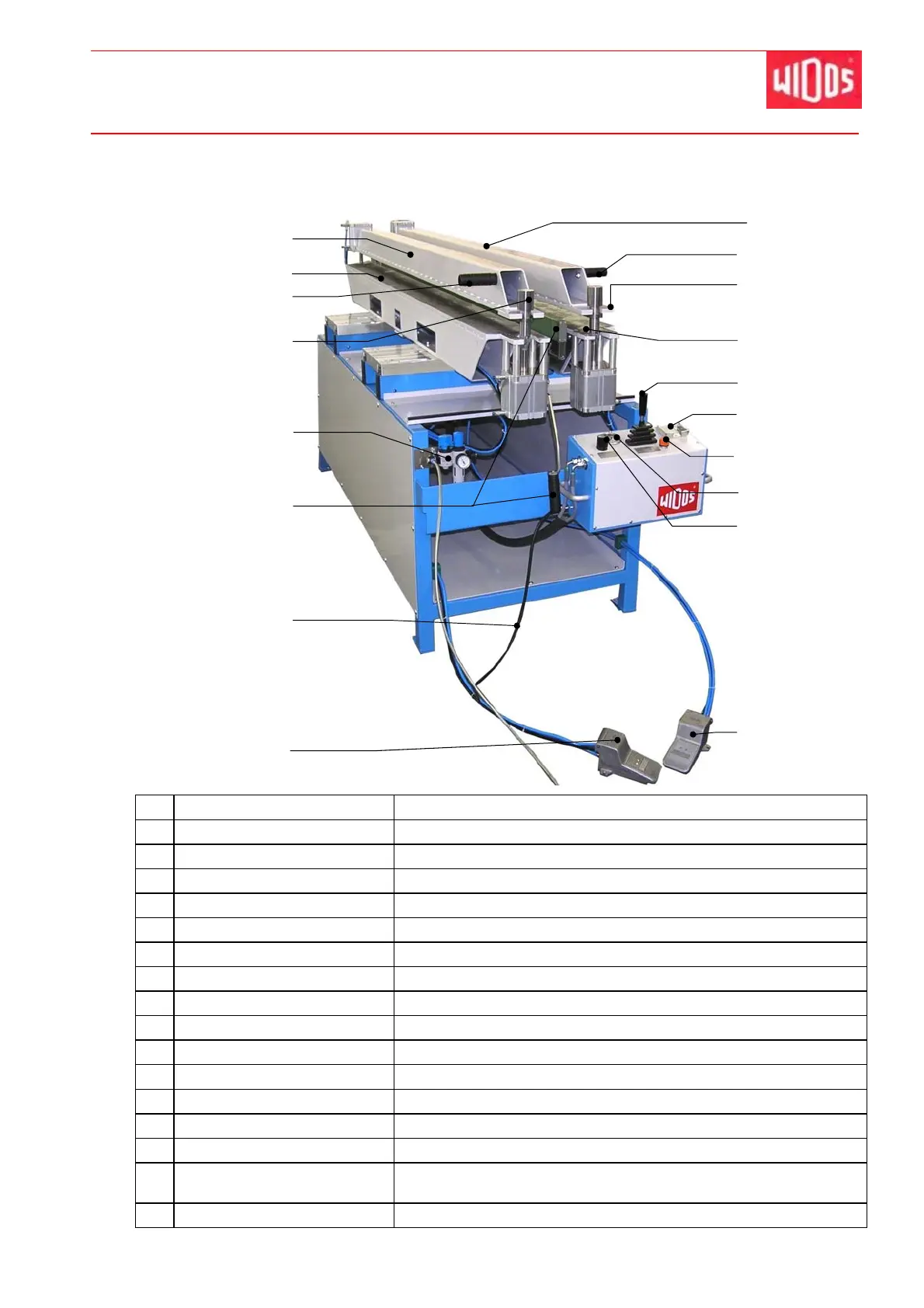

4. Operating and indicating elements
No. Denomination Function
1 Clamping beam, left side clamp sheet
2 Rest, left side support sheet
3 Grip, left side clamping beam moving (to the top and below)
4 Piston rod, left side clamp left clamping beam, swiveling
5 Service unit connect the machine with compressed air supply
6 Heating element and lever heating up the sheets and swiveled it (to the top and below)
7 Foot valve pneumatically clamping left side
8 Cable with plug connect the hydraulic with power supply
9 Clamping beam, right side clamp sheet
10 Grip, right side clamping beam moving (to the top and below)
11 Rest, right side support sheet
12 Piston rod, right side clamp right clamping beam, swiveling
13 Lever for hydraulic opening and closing the tables
14 Place for stop watch place fort he stop watch (optional) giving a good view on it.
15 Oil dipstick oil filler neck / checking the oil level. Oil level must be
between the two marks
16 Pressure gauge Indicating of the hydraulic pressure
2
3
4
7
5
11
10
12
6
8
13
16
14
15
17
18
1
9
