6.0. Before Using
6.4. Description of the functions of
the control panel

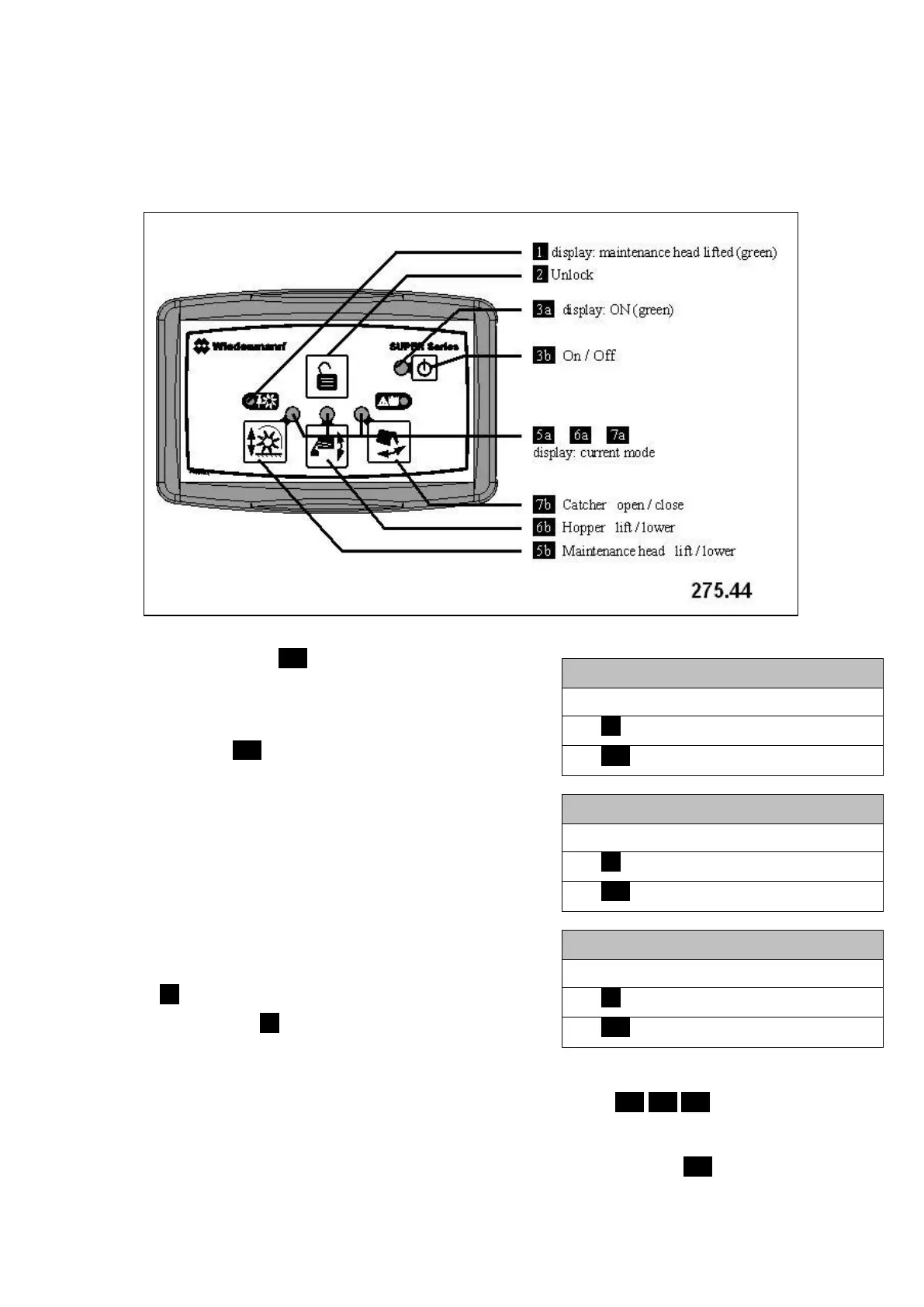

The valve control ensures safety during work with
the hydraulic systems on the turf care machine.
The controller for operation must always be
switched on with key 3b "On / Off".
After 60 minute without a key being pressed the
controller automatically switches off (standby
mode).
If the "display: 3a On / Off" lights, the controller
is switched on, if it is not lit, the controller is in
standby mode, i.e. the controller is switched off
and only requires very little power from the
battery. All valves are closed when the controller
is switched off.
Three modes can be selected at the control
panel, corresponding to the three functions of the
turf care machine.
For safety reasons the three mode keys must be
unlocked before actuation by pressing
key 2 "Unlock".
After pressing key 2 "Unlock" the modes that
can be selected flash for a short time. If another
mode is not selected within this time, the previous
selection is retained and the mode keys are
locked again.
The three functions are selected as follows:
Maintenance head lift / lower
Key 5b "head lift / lower"
Key 6b "hopper lift / lower"
Key 7b "catcher open / close"
After switching on no mode is selected, all
valves are closed and
displays 5a 6a 7a "display: current mode"
are not lit.
To close all valves again, switch off the
controller with key 3b .
To Next Page
