8.0. Service
8.12.4. Tool division
 Verticutting with a tool
spacing of 2.25 in
 Verticutting with a tool
spacing of 2.25 in and
simultaneous mowing
 Collecting

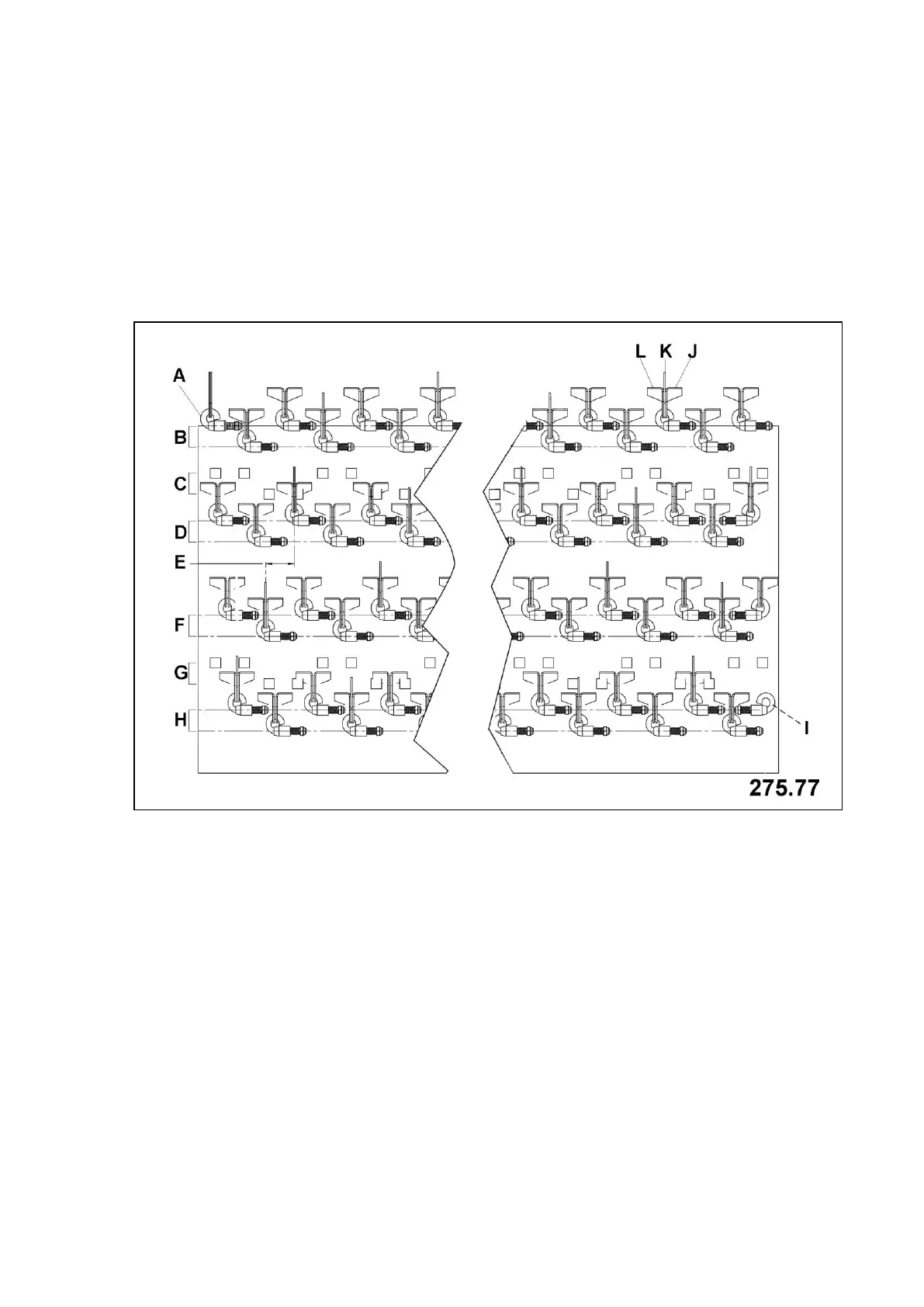

A First and outer tool
bracket, left side
(without cutting
blades)
B Double row 1
C Wind paddle double row
(not shown)
D Double row 2
E Tool spacing 2.25 in
F Double row 3
G Wind paddle double row
(not shown)
H Double row 4
I Last and outer tool
bracket, right side
(not equipped)
J Cutting blade short,
right, Article number
1230376 (82 pieces)
K Verticutting knife,
Article number 1230370
(28 pieces)
L Cutting blade short,
left, Article number
1230377 (82 pieces)
