E=GREEN and Yellow / N = BLUE / L= BROWN
Electric shock, short circuit and fire hazard may arise due to installation by unprofessional people! Mains
connection of the product can only be done by authorized and qualified persons and the warranty of the
product starts when it is properly installed.
Electric shock, short circuit and fire hazard may arise due to a defective power cord! The power cord must
not be clamped, folded or pinched or come into contact with hot parts of the product. A damaged power
cable must be replaced by a qualified electrician.
Gas hose must not be clamped, bent, compressed or come into contact with hot parts of the product.
Take great care to ensure that the gas hose and gas relief valve you connect to your oven are safe. Fix the gas
delivery hose to the hose nozzle on the back of the oven and tighten it by a blade clamp and screwdriver (Figure 6).
Make sure it is properly tightened. Length of the oven gas hose should not exceed 1500m. Pressure relief valve to
be used for LPG must be 300mmSS and certified.

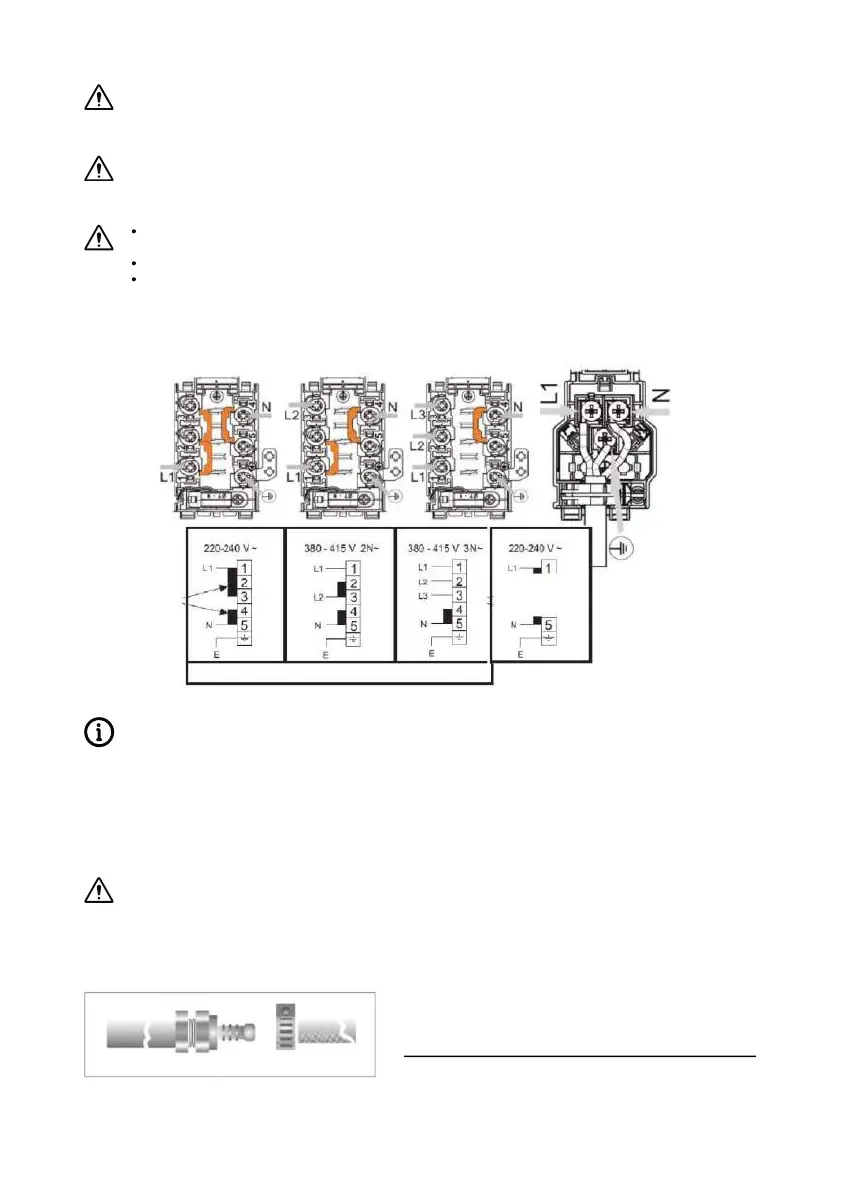

Electrical connection is schematically indicated on the back of the product. The product's connection
cable must comply with the technical specifications.
Disconnect the product from the mains before starting any work on the installation.
There is a risk of electric shock.
Gas coupling
LPG coupling
Product may only be connected to the gas supply system by an authorized and qualified person.
Check gas installation for safe installation and tightness.
