42 WIKA operating instructions pressure transmitter, model IS-3
MM/YYYY country code based on 14095850.02 12/2014 EN/CN
EN
Mountingofeldcase
1. Unscrew the case cover and open the cable gland using a suitable open-ended spanner.
2. Slide the cable though the cable gland into the open case head.
3. Press down the corresponding plastic lever on the spring clip terminal, using a screwdriver, in order to open the
terminal contact.
Insert the prepared cable end into the opening and let the plastic lever go. The cable end is now clamped in the
spring clip terminal.
4. After connecting the individual wires, tighten the cable gland and screw down the case cover.
6. Commissioning, operation

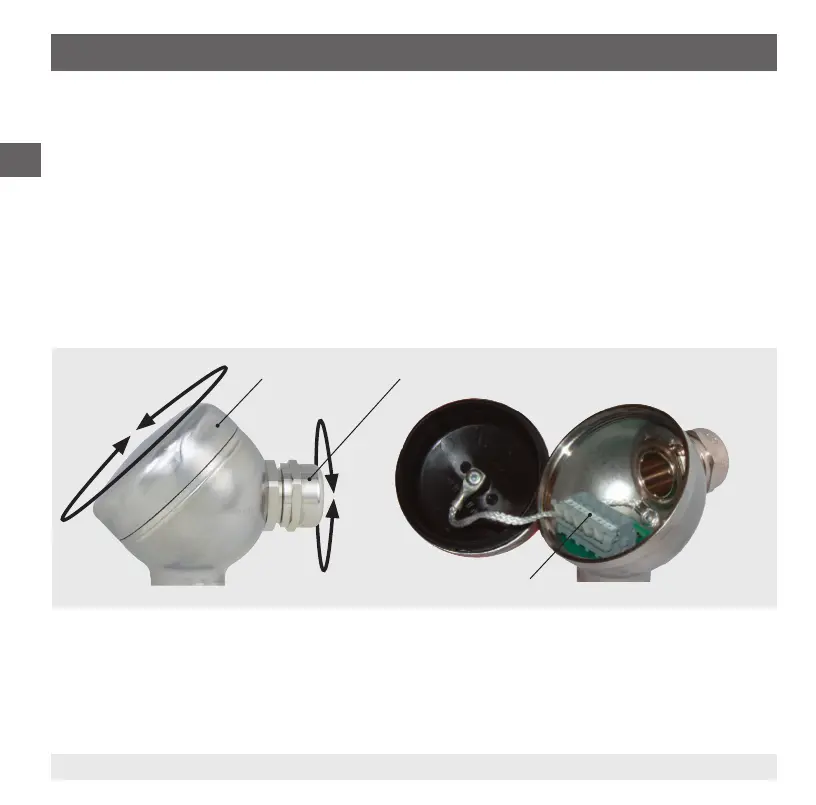

Case cover Cable gland
Spring clip terminal

WIKA IS-3 Specifications

General

Output Signal	4 ... 20 mA, 2-wire
Power Supply	10 ... 30 VDC
Material	Stainless steel
Accuracy	≤ ±0.5 % of span
Temperature Range	-20 ... +85 °C
Ingress Protection	IP65
Long-term stability	±0.2 % FS per year
Process Connection	G 1/4, G 1/2, 1/4" NPT, 1/2" NPT
Electrical Connection	M12 x 1
