WIKA operating instructions models PGS10, PGS11 and PGS21
9

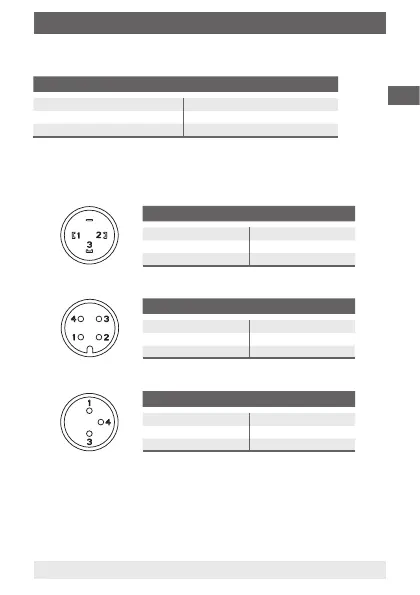

5. Electrical switch contacts
Plug
Single contact Double contact
1: UB+ (common) 1: UB+ (common)
2: SP 1 2: SP 1
3: SP 2
Single contact Double contact
1: UB+ (common) 1: UB+ (common)
4: SP 1 4: SP 1
3: SP 2
L-connector EN 175301-803-C
Circular connector M12 x 1
Single contact Double contact
1: UB+ (common) 1: UB+ (common)
3: SP 1 3: SP 1
4: SP 2
Circular connector M8 x 1
Flying leads
Single contact Double contact
red: UB+ (common) red: UB+ (common)
black: SP 1 orange: SP 1
black: SP 2
11581752.01 07/2010 GB/D/F/E
