Night Scan Chief
CHAPTER 1
INTRODUCTION
1.1 SAFETY PRECAUTIONS
Refer to the Safety Summary for precautions to be observed while operating or servicing this equipment.
1.2 INTRODUCTION
This manual covers the installation, operation, troubleshooting and maintenance instructions for the Night
Scan Chief. The manual should be reviewed in its entirety. Contact the Will-Burt factory with any questions
before performing any procedures outlined in this manual.
1.3 DESCRIPTION
The Night Scan Chief is a transportable lighting system consisting of a directionally adjustable group of lights
attached to a self-erecting, extensible mast. Air pressure required to extend the mast is provided by a
compressor unit mounted within the Night Scan Chief. The unit is designed for installation on any vehicle for

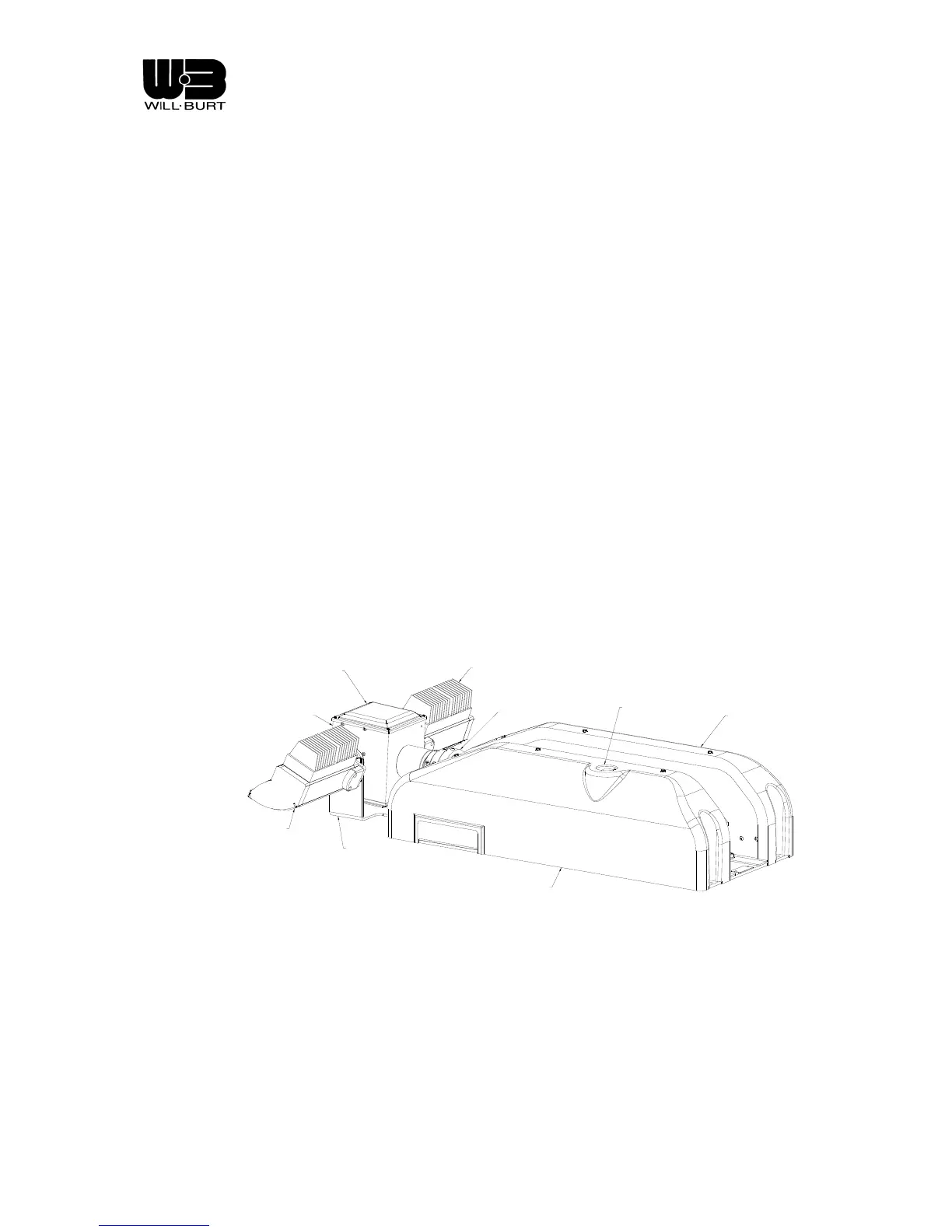

the purpose of providing on the scene temporary lighting. Refer to Figure 1-1 for identification of the major
components of the Night Scan Chief unit.
BASE
RIGHT COVER
BASE
LEFT COVER
RCP SADDLE
ASSEMBLY
LEFT SIDE
LIGHT
RIGHT SIDE
LIGHT
RCP HOUSING
RCP COVER
BASE
LOOK-UP LIGHT
MAST
Figure 1-1 Night Scan Chief Base and Remote Control Positioner
Revision 1 1-1
