Night Scan Chief
S2

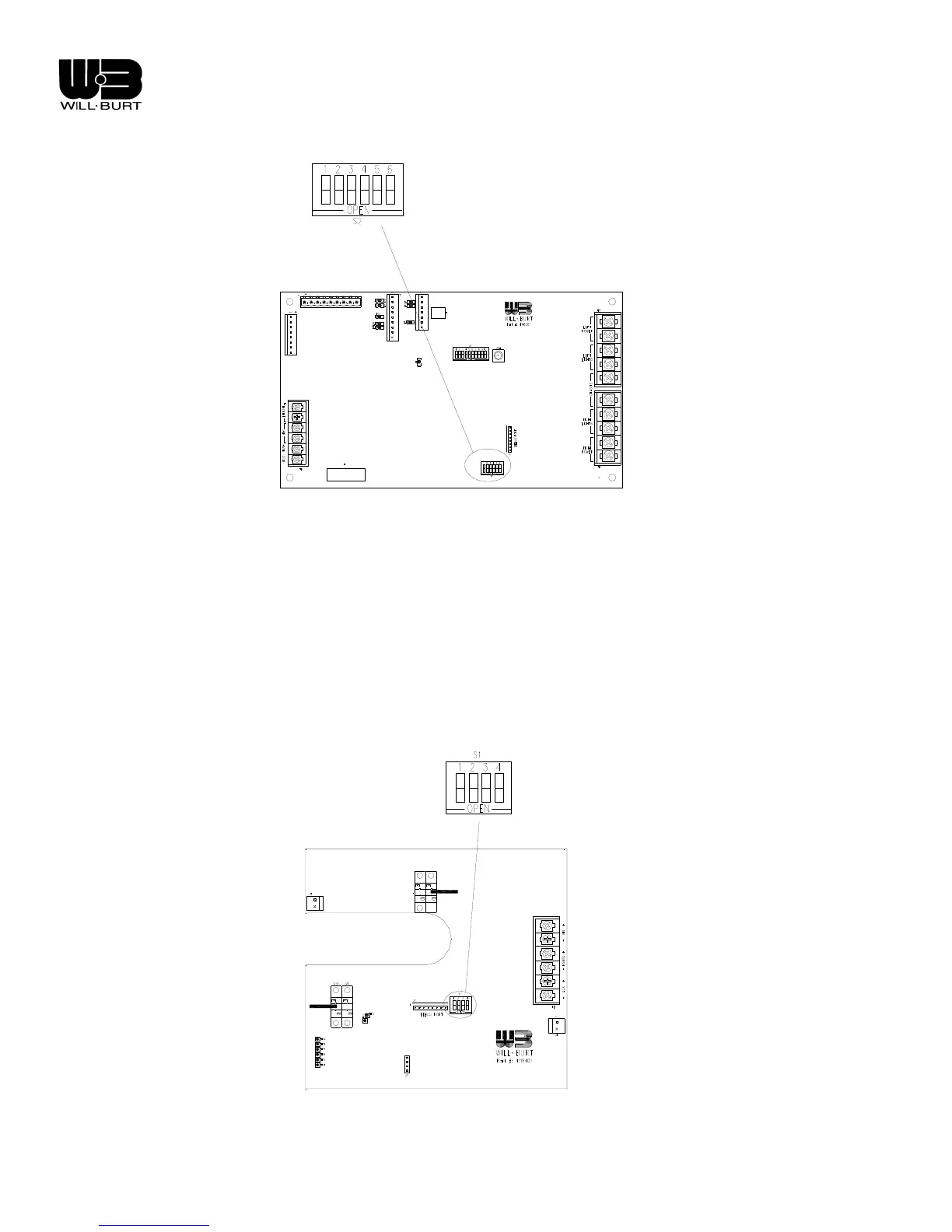

Figure 4-4 DIP switch location: Chief base board
To set the operational mode for the RCP board, locate the DIP switch S1 (see Figure 4-5) and set the DIP
switch as follows:
• Position 1 - Close to cause the RCP to self stow if there is an error.
• Position 2 – DO NOT CLOSE.
• Position 3 – DO NOT CLOSE
• Position 4 – DO NOT CLOSE
J4
+
+
+
+
+
+
+
+
Figure 4-5 DIP switch location: Chief RCP board
Revision 1 4-6
