20
Check control wiring connections
Refer to wiring digram on page 28.
Burner flame characteristics
Start the furnace and let it operate at least ten minutes.
Observe the flame from the Sight Window. The flame should
turn to blue color with scattered dots of yellow color within 5
seconds of ignition. Limit your movements near the furnace a
few more minutes before making your final observations. The
flame may look yellow due to dust particles in the room air.
The flame should change to a nice blue color with firm inner
and secondary cones. An occasional flash of orange might
be seen as dust particles burn in the flame. This is normal. No
burner adjustment is provided, or is necessary. (Figure 18).
Normal appearance
Natural Gas:
1. Inner cone–blue in color–3/8 to 5/8-inches above ports.
2. Secondary inner cone–light blue in color–1 to 2-inches
above ports.
3. Total flame–from blue in color to nearly invisible–
approximately 6-inches above ports.
Abnormal appearance
Lazy Flame:
Long, soft yellow cones moving around in the combustion
chamber lifting from ports (insufficient air).
Extremely Fast Flame:
Flame will not hold to ports–entire cone sections blow off
from noisy ports (too much pressure).
WARNING: If flame appears abnormal, contact the gas
company or a qualified service technician immediately.

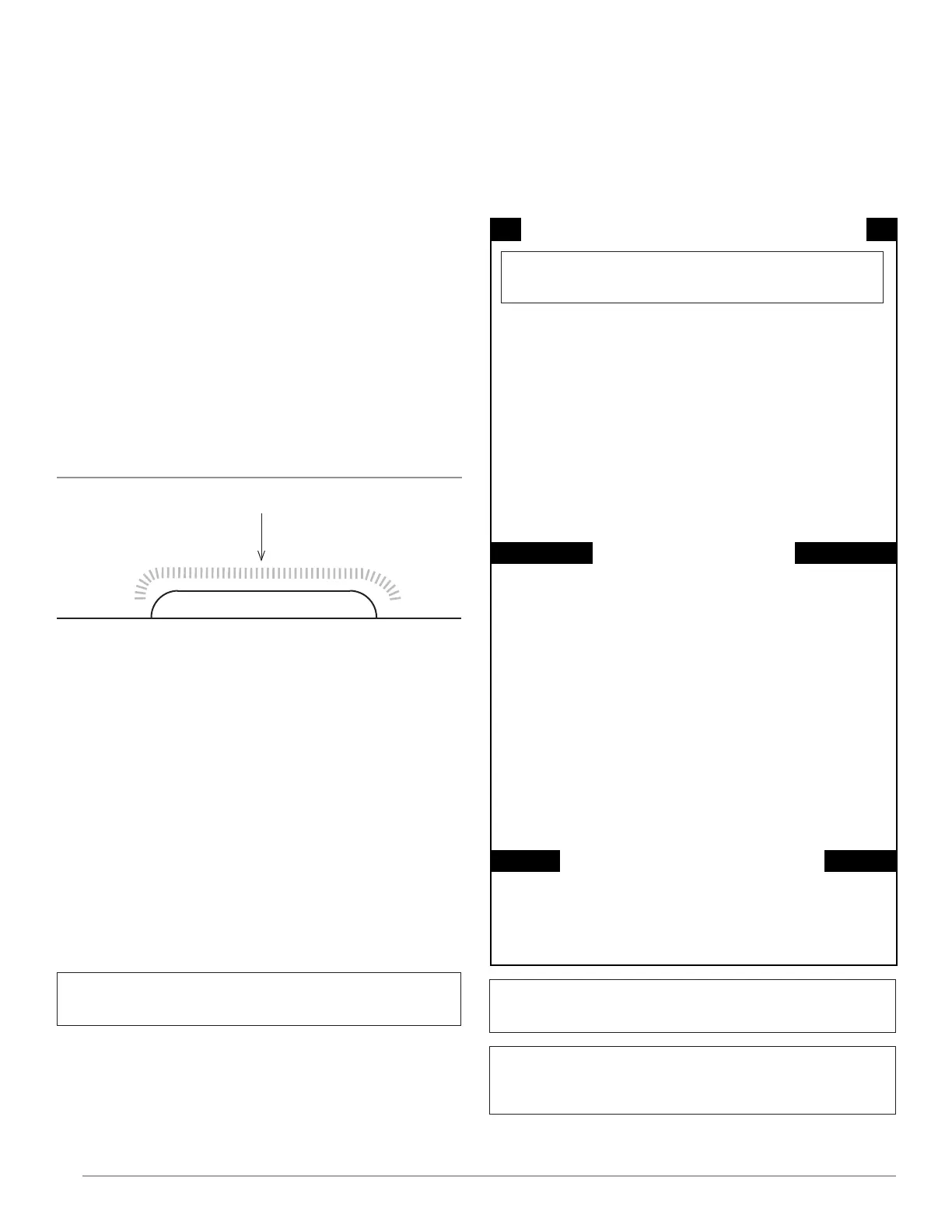

FIGURE 18 – Burner Flame Characteristics
IMPORTANT: KEEP BURNER AND CONTROL
COMPARTMENT CLEAN.
WARNING: Due to high surface temperatures, keep
children, clothing, furniture or any combustible material
away from the furnace.
CANNOLO BURNER
BLUE FLAME
STARTUP
PROCEDURE continued
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
A. BEFORE LIGHTING: smell all around
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• D o not try to light any appliance.
• D o not touch any electrical switch.
• D o not use any phone in your building.
• I mmediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you can not reach your gas supplier,
call the fire department.
B. Use only the thermostat and power
ON/OFF switch on the control unit
at the bottom of the furnace to turn
the gas control on/off. Any
attempted repairs or adjustments
should be performed by a qualified
service technician. Applying force
or attempted repair may result in a
fire or explosion.
C. Do not use this appliance if any
part has been under water.
Immediately call a qualified service
technician to inspect the appliance
and to replace any part of the
control system and any gas control
which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information
above on this label.
2 Turn off the remote thermostat and
power ON/OFF switch on the
control unit at the bottom of the
furnace.
3. Open bottom louver
assembly, or open
the service access
panel.
4. Turn off all electric
power to the appliance.
5. Turn gas line valve to
“ON”
6. Wait five (5) minutes to
clear out any gas. Then smell for
gas including near the floor. If you
smell gas, STOP! Follow A in the
safety above. If you do not smell
gas, go to the next step.
7. Turn on all electric power to the
appliance.
8. Turn on the thermostat and power
ON/OFF switch on the control unit
at the bottom of the furnace, and
set thermostat to desired setting (if
available). Activate appliance
using display panel .
9. This appliance is equipped with an
ignition device that automatically
lights the burner. Do not try to light
the burner by hand.
10. If the appliance will not operate,
follow the instruction “TO TURN
OFF GAS TO APPLIANCE”, and
call your service technician or gas
supplier.
11. Close bottom louver assembly, or
close the service access panel.
TO TURN OFF GAS TO APPLIANCE
1. STOP! Read the safety information
above.
2. Open bottom louver assembly, or
open the service access panel.
3. Turn off all electric power to the
appliance.
4. Turn gas line valve to “OFF”.
5. Close bottom louver assembly, or
close service access panel.
.
