Wilo Control MS-L Series User Manual

en Product description
14 WILO SE 2020-05
1
2
3

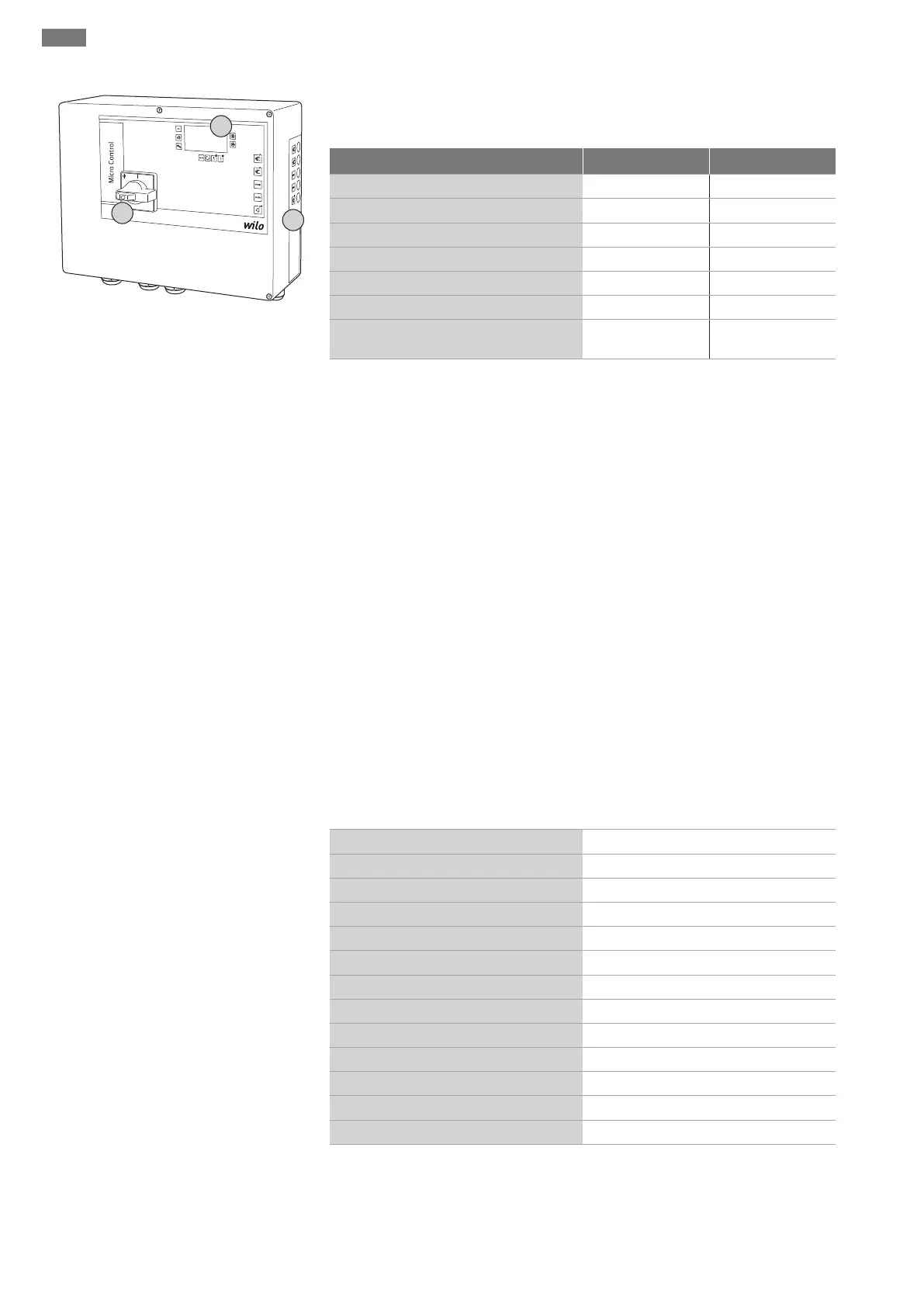

Fig.2: Control MS-L 2
The current operating states (operation and fault) are visually indicated via LEDs on the
front side. Faults are also indicated audibly via an integrated buzzer. The last error is
stored in the fault memory.
LED indicators MS-L 1... MS-L 2...
Automatic mode
• •
Pump operation
• •
High water
• •
Overload fault
• •
Winding fault
• •
Service interval indicator
− •
Monitoring of certain operating paramet-
ers
− •*
Key
− = not available, • = available
* Only “LS” version
Operation is via four or five buttons on the side-mounted control panel:
ƒ Automatic mode
ƒ Manual mode (for each pump)
ƒ Stop (all pumps off)
ƒ Buzzer off/reset
4.2 How it works
The pumps are automatically switched on and off depending on the fill level:
ƒ Control MS-L.../MS-L...-O:
– The level is detected via a two-position control with a float switch for each
pump.
– The high water level is detected by a separate float switch.
ƒ Control MS-L...-LS:
– The level is detected via two switching points by a rod float sensor (4...20mA
signal).
– The high water level is detected by a separate switching point.
A follow-up time can be set for deactivation. When the high water level is reached,
there is:
ƒ A visual and audible alarm signal
ƒ Forced switch-on of all pumps
ƒ Collective fault signal activation
ƒ Activation of the external alarm signal (only Control MS-L2...)
4.3 Technical data
Date of manufacture*
See rating plate
Mains connection
See rating plate
Mains frequency
50/60Hz
Max. current consumption per pump
See rating plate
Max. rated power per pump
See rating plate
Pump activation type
direct
Ambient/operating temperature
-30 … +60°C
Storage temperature
-30 … +60°C
Max. relative humidity
50%, non-condensing
Protection class
IP54
Electrical safety
Pollution degree II
Control voltage
24VDC
Housing material
UV-resistant polycarbonate
*The date of manufacture is stated in accordance with ISO8601: JJJJWww
ƒ JJJJ = year
ƒ W = abbreviation for week
ƒ ww = calendar week
