Installation and operating instructions Wilo-Stratos/-D/-Z/-ZD 71
English
8.2.2 Switchover of the display
• For the layout of the control module, whether in horizontal or vertical installa-
tion position, the position of the display can be adjusted, turned by 90°. The
position setting can be defined in menu item 3. The display position specified by
the basic setting is indicated by "ON" flashing (for horizontal installation posi-
tion). The display can be changed by turning the adjustment button. "ON"
flashes for the vertical installation position. Press the adjustment button to
confirm the setting.

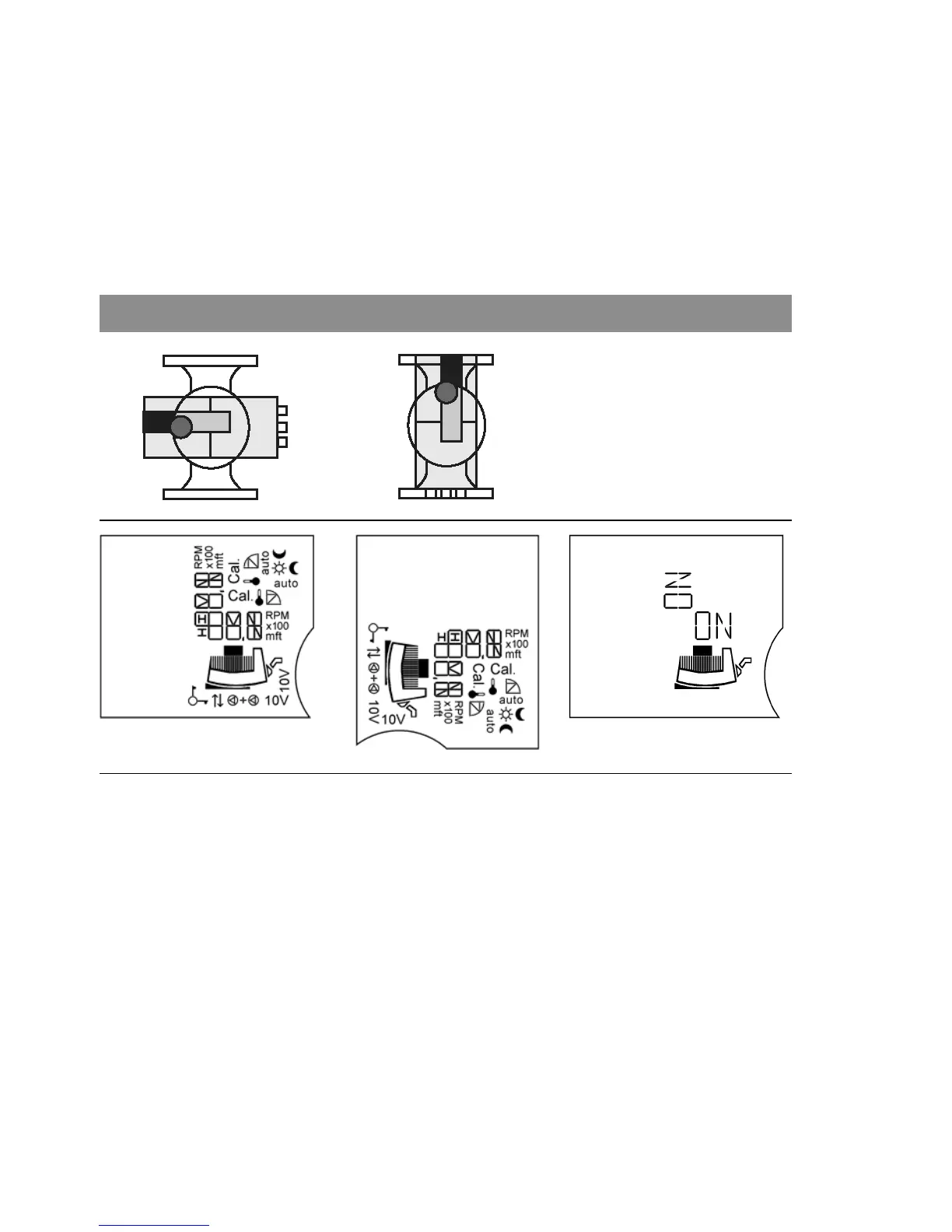

Horizontal Vertical Setting
Position setting
in menu item 3

Wilo Stratos-D Series Specifications

General

Application	Heating
Connection Type	Flange connection
Fluid Temperature Range	-10 °C to +120 °C
EEI	≤ 0.20
Display	LCD
Power Consumption	Varies depending on model
Housing Material	Cast iron
Motor Type	EC motor
Energy Efficiency Class	A
