Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.

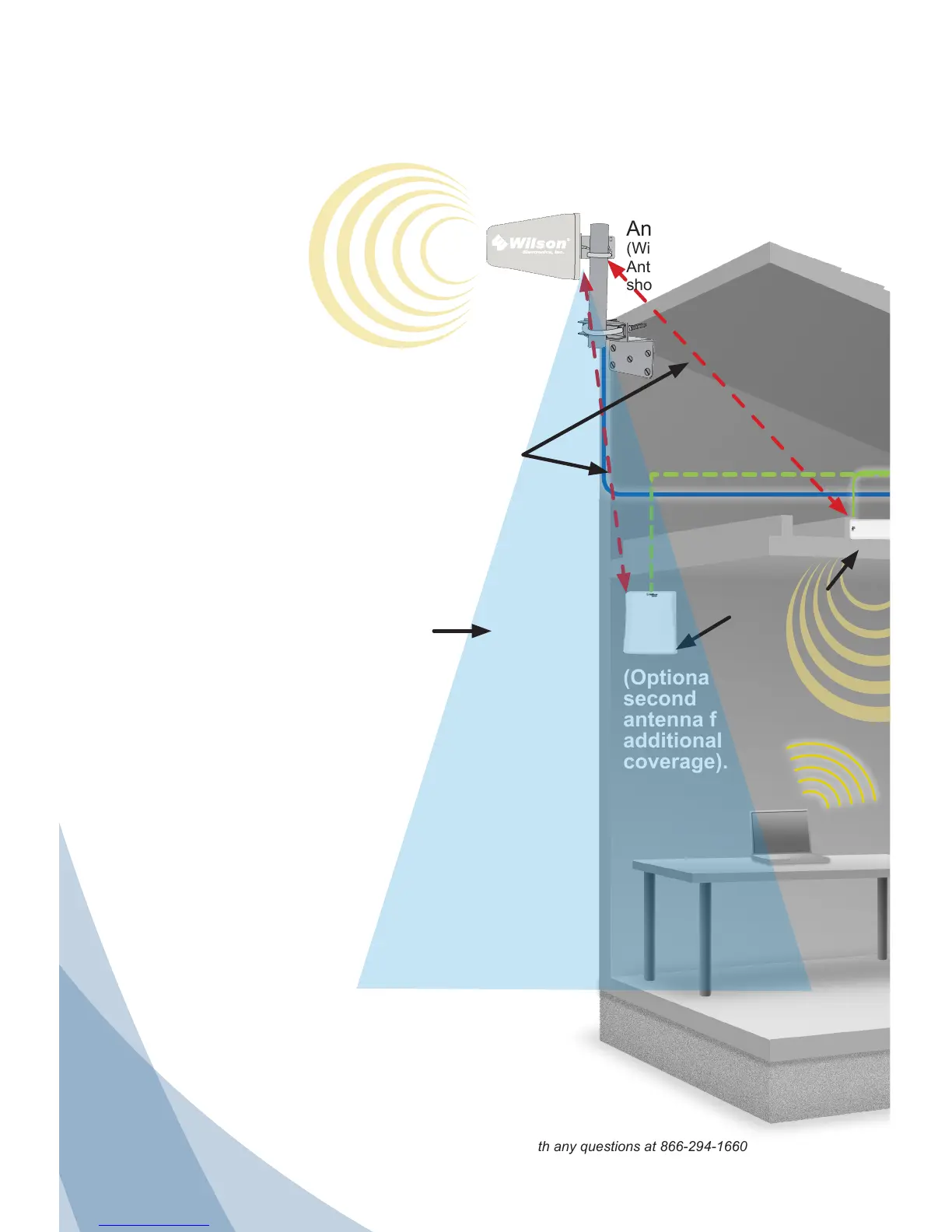

Typical Installation
Outside
Antenna
(Wide Band
Antenna option
shown)
Inside Panel
Antenna
AG DB Pro Installation Diagram
2-way/3-way/
4-way splitter
(if using multiple
inside antennas)
(Optional
second
antenna for
additional
coverage).
Null Zone: The area under
the antenna, where the
antenna radiates the least.
Note: The inside panel antenna
may be mounted on the wall
directly under the outside
antenna if 15 feet of vertical/
horizontal separation can be
maintained. The preferred
method for the best coverage,
place the antenna in the ceiling.
Note: A lightning surge protector
is recommended for all building
installations. Make sure the
protector is installed in line
between the outside antenna and
the signal booster.
