SOLENOID AND MANI
FOLD ASSEMBLIES
CMD20 86038150 04/02/
07
30

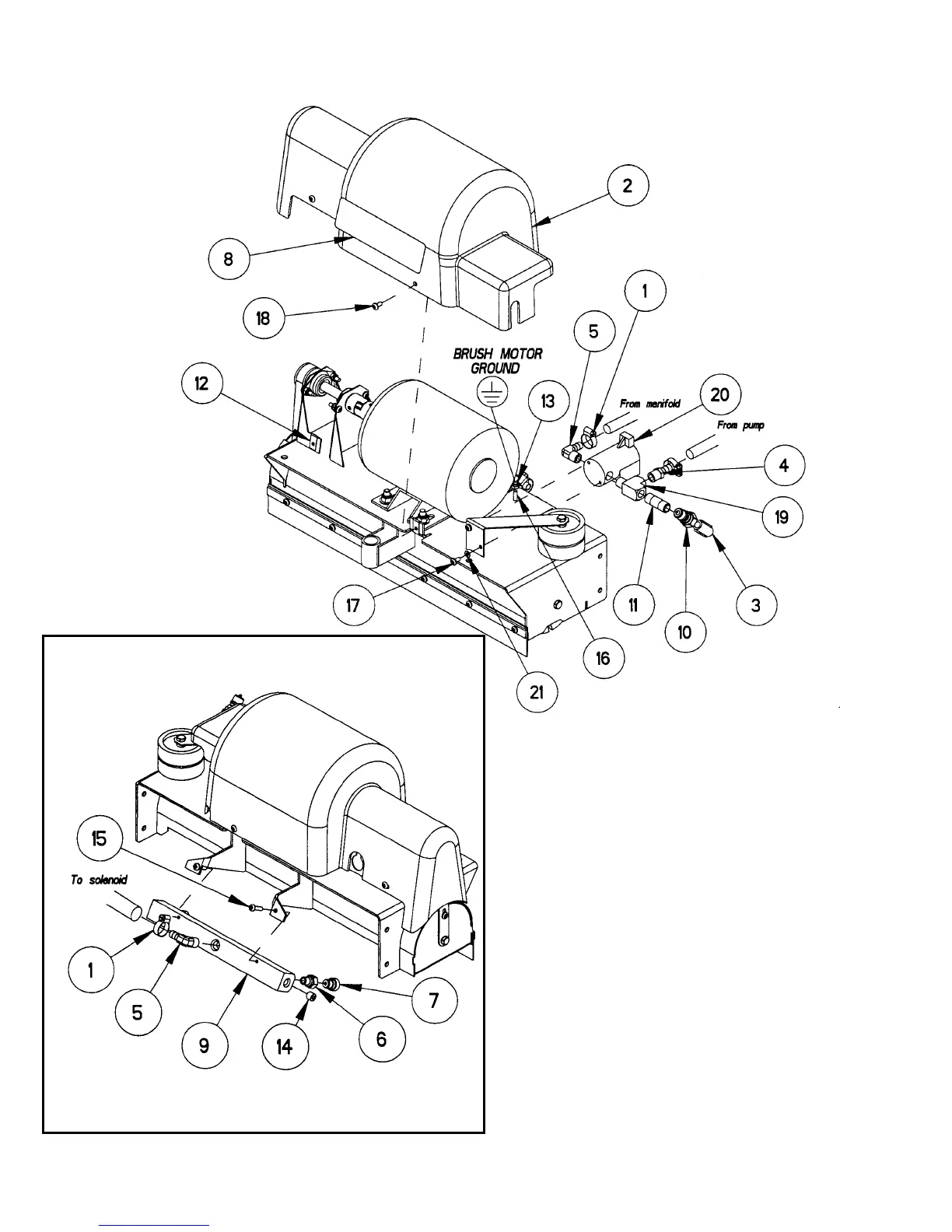

VIEW: FRONT VIEW OF BRUSH HOUSING ASM.
NOTE: to remove manifold as
m remove item 86006600 –
PRV NO. 70114 (2).
29
31
Table of Contents
English
2
Table of Contents
2
Datos de la Máquina.tabla de Contenidos Registre D'informations/Table des Matières
2
Safety Instructions
3
Seguridad
4
Sécurité
5
Wiring Diagram (115V)
19
Schéma Électrique (115V)
19
Maintenance Mantenimiento D'entretien
20
French
6
Grounding Instructions
6
Instrucciones para la Puesta a Tierra
6
Instructions Visant la Mise À la Terre
6
Controls
7
Mandos de Control
8
Commandes de Fonctionnement
9
Operations
10
Opération
10
Troubleshooting
16
D'epannage de la Machine
18
Guia de Localización de Probelmas
18
Technical Specifications
21
Caractéristiques Techniques
21
Service Schedule
22
Part List Lista de Piezas Liste de Pièces
24
Pump Assembly
26
Brush Assembly
28
Control Panel Assembly
38
Recovery Tank Assembly
42
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Windsor Commodore 20 CMD20 and is the answer not in the manual?
Ask a question
Windsor Commodore 20 CMD20 Specifications
General
Brand
Windsor
Model
Commodore 20 CMD20
Category
Floor Machine
Language
English
